Solar Shading Design: Rosemont–La Petite-Patrie, Canada
How to research solar shading design for a specific site in Rosemont–La Petite-Patrie — the controlling authority, source documents, and checks to run before you rely on a number.
Last updated September 2, 2026 · Location data from the [GeoNames CA dump](https://download.geonames.org/export/dump/CA.zip) (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 13546323). Regulatory starting point: [Codes Canada and the applicable provincial or territorial authority](https://nrc.canada.ca/en/certifications-evaluations-standards/codes-canada/codes-canada-publications). Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: [NOAA Solar Calculation Details](https://gml.noaa.gov/grad/solcalc/calcdetails.html); the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: [NREL Solar Position Algorithm](https://midcdmz.nrel.gov/spa/).
Direct answer
For Rosemont–La Petite-Patrie at 45.5366, -73.6069, the declination-only solar-noon altitude is approximately 67.9° at the June solstice, 44.5° at an equinox and 21.0° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 13546323 in administrative area 10, at 45.5366, -73.6069; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 67.9° at the June solstice, 44.5° at an equinox and 21.0° at the December solstice. Representative 21st-day geometry ranges from about 8.5 hours in December to 15.5 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this solar shading design record.
Prepared by Harth · Topic-specific calculated asset and fresh SERP brief passed editorial screening; page remains noindex pending the independent content, evidence, similarity and link gates · Published 2026-08-26 · Updated 2026-09-02.
What must be verified for Rosemont–La Petite-Patrie?
Rosemont–La Petite-Patrie is represented here at approximately 45.5366, -73.6069 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.
How should solar shading design be established?
- Fix the surveyed site and local time basis.
- Select an authoritative weather source or a named solar-position algorithm.
- Record period, percentile or scenario and units.
- Test sensitivity to elevation, exposure, urban form and horizon.
- Save the source file, retrieval date and checker in the model record.
| Input | Project-specific evidence | QA question |
|---|---|---|
| Site | surveyed coordinates, elevation and horizon | Does the point represent the building? |
| Weather/solar method | named dataset, algorithm, period and time basis | Are station, time zone and units explicit? |
| Design scenario | current and future scenario agreed by the team | Is an average being mistaken for an extreme? |
| Compliance | adopted local document and edition | Was applicability confirmed with the authority? |
What are the limits of this worksheet?
This shading-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Rosemont–La Petite-Patrie site remain authoritative.
Rosemont–La Petite-Patrie horizontal-overhang screening worksheet

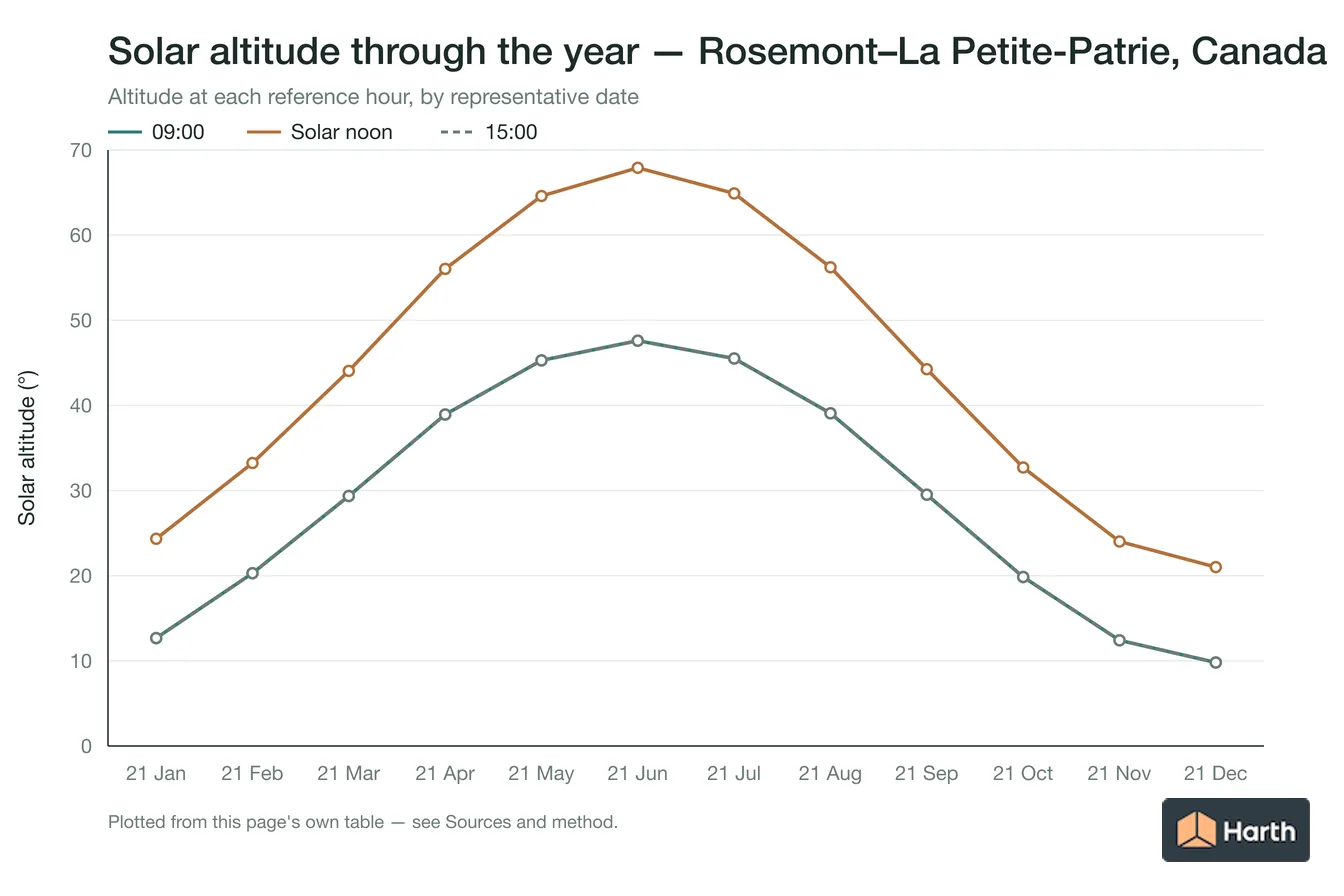

| Representative date | 09:00 altitude / P:H | Solar noon altitude / P:H | 15:00 altitude / P:H |
|---|---|---|---|
| 21 January | 12.67° / 4.449 | 24.33° / 2.212 | 12.67° / 4.449 |
| 21 February | 20.30° / 2.704 | 33.24° / 1.526 | 20.30° / 2.704 |
| 21 March | 29.36° / 1.778 | 44.06° / 1.033 | 29.36° / 1.778 |
| 21 April | 38.94° / 1.238 | 56.04° / 0.673 | 38.94° / 1.238 |
| 21 May | 45.29° / 0.990 | 64.60° / 0.475 | 45.29° / 0.990 |
| 21 June | 47.60° / 0.913 | 67.91° / 0.406 | 47.60° / 0.913 |
| 21 July | 45.51° / 0.982 | 64.90° / 0.468 | 45.51° / 0.982 |
| 21 August | 39.07° / 1.232 | 56.22° / 0.669 | 39.07° / 1.232 |
| 21 September | 29.52° / 1.766 | 44.26° / 1.026 | 29.52° / 1.766 |
| 21 October | 19.85° / 2.770 | 32.71° / 1.557 | 19.85° / 2.770 |
| 21 November | 12.41° / 4.546 | 24.02° / 2.244 | 12.41° / 4.546 |
| 21 December | 9.81° / 5.784 | 21.01° / 2.603 | 9.81° / 5.784 |
Rosemont–La Petite-Patrie overhang sizing hand check

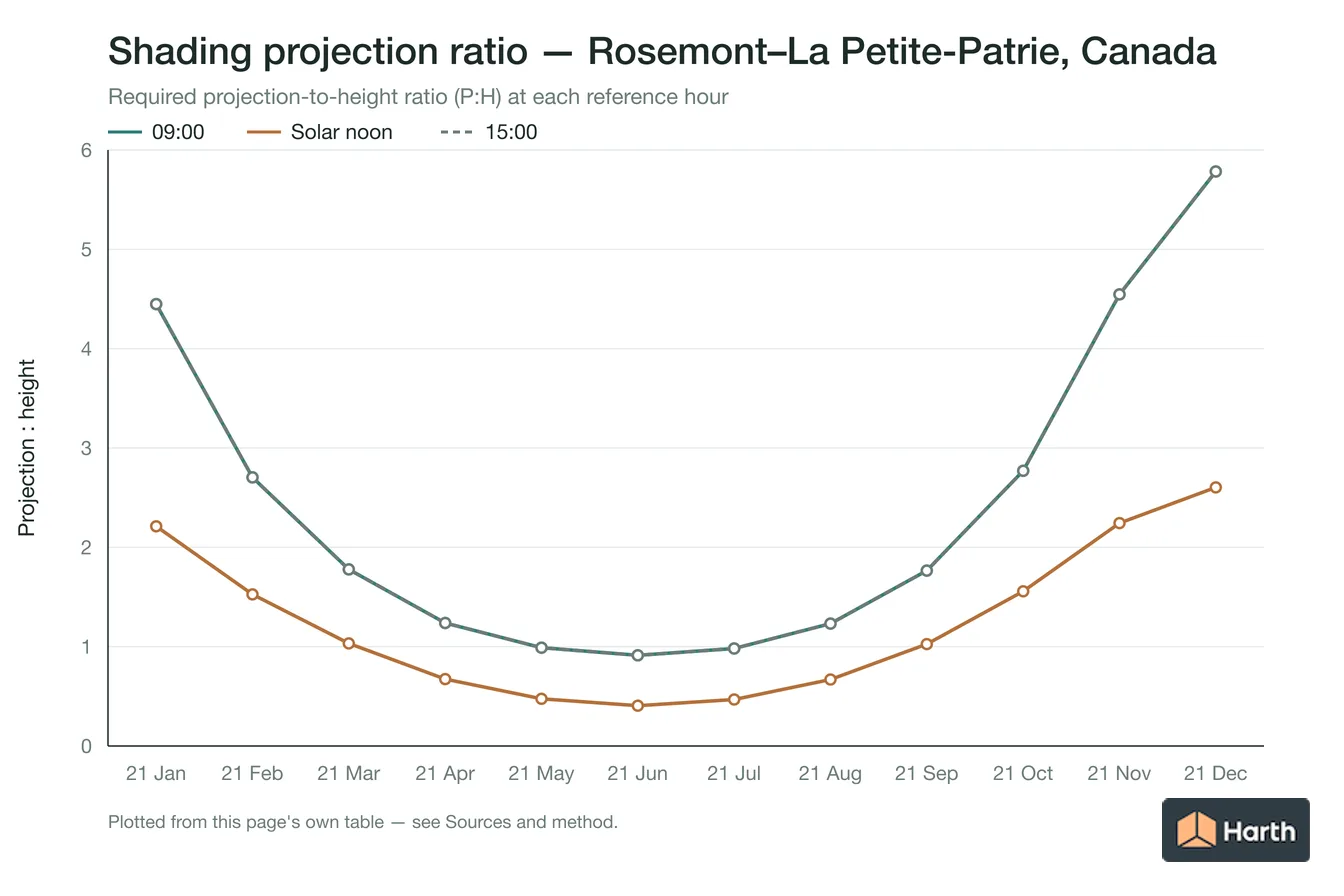

P:H is projection depth divided by the vertical facade distance to shade, calculated as 1 / tan(solar altitude). For a 1.20 m vertical target, multiply the table ratio by 1.20 m. The 09:00 and 15:00 columns use apparent solar time and show the solar-profile-plane ratio; they do not resolve facade azimuth, horizontal shadow displacement or a side-fin geometry.
The Rosemont–La Petite-Patrie worksheet uses latitude 45.5366° and records longitude -73.6069°. A project study must replace the reference point, use the actual facade normal and obstruction mask, convert to civil time, test the full occupied period and account for diffuse sky, glazing and thermal performance. Refine solar positions with the NREL SPA.
Where can you explore related guidance?
- Explore all solar data guidance
- Sun Path: Rosemont–La Petite-Patrie, Canada
- Solar Altitude & Azimuth: Rosemont–La Petite-Patrie, Canada
- Daylight & Orientation: Rosemont–La Petite-Patrie, Canada
- Solar Shading Design: Villeray–Saint-Michel–Parc-Extension, Canada
- All solar & daylight data guidance for Canada
- Climate Design Data: Rosemont–La Petite-Patrie, Canada
Sources and method
Location data from the GeoNames CA dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 13546323). Regulatory starting point: Codes Canada and the applicable provincial or territorial authority. Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: NOAA Solar Calculation Details; the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: NREL Solar Position Algorithm.
Source links
Frequently asked questions
What does the solar shading design record for Rosemont–La Petite-Patrie establish?
The solar shading design record for Rosemont–La Petite-Patrie establishes a reproducible discovery point at 45.5366, -73.6069 (GeoNames ID 13546323, administrative area 10) and a Canada source path. It does not establish a final project value, approval or parcel decision.
What must be replaced before using this solar shading design workflow for a project in Rosemont–La Petite-Patrie?
For the solar shading design record in Rosemont–La Petite-Patrie, replace the 45.5366, -73.6069 city reference with the surveyed site or parcel, identify the competent local authority, and verify the current documents under National Building Code of Canada plus provincial, territorial, and municipal adoption. Record the edition, retrieval date, units, assumptions and named checker before relying on the result.
