Building Code Glossary
Modular Boiler: Building Code Definition

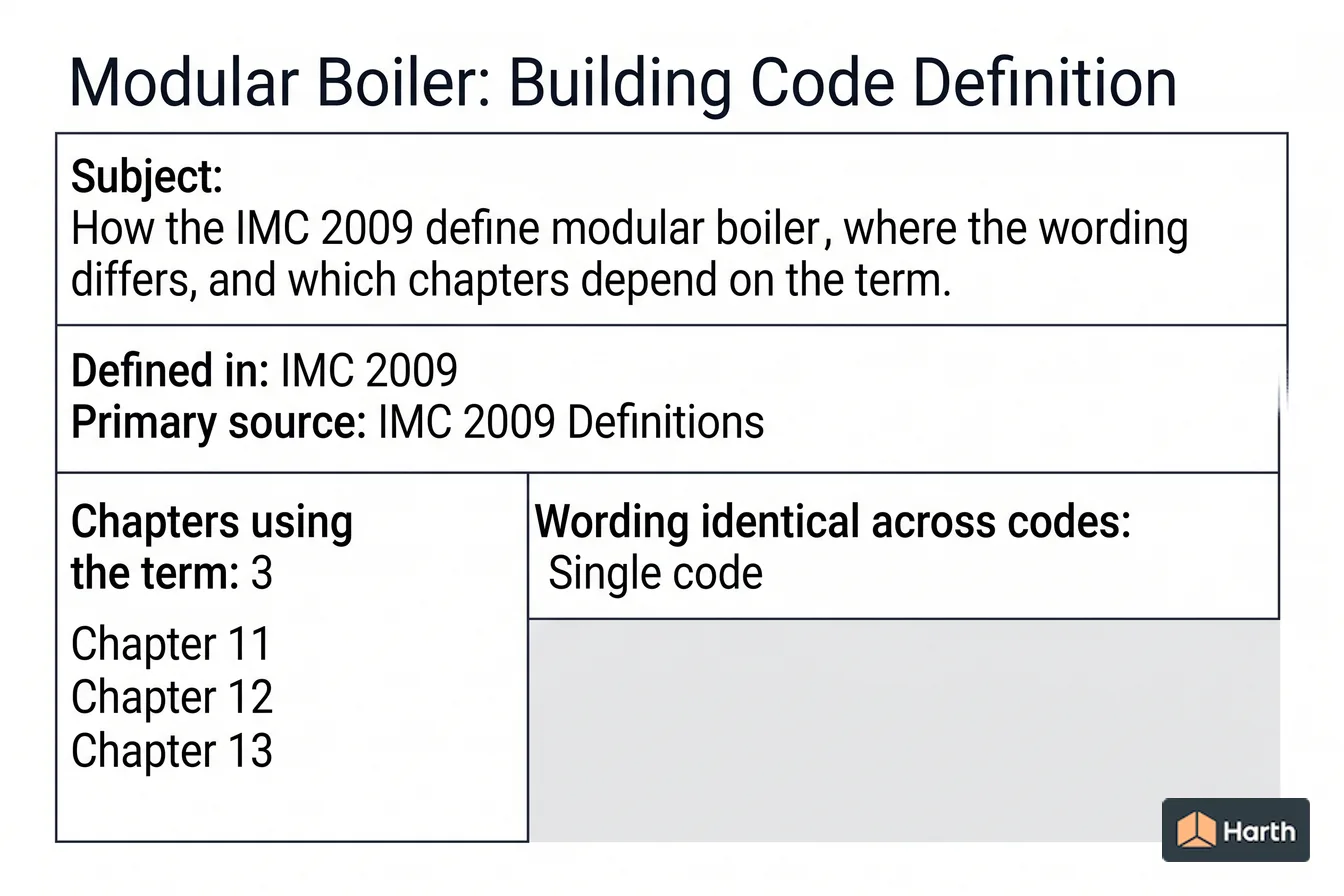

How the IMC 2009 define modular boiler, where the wording differs, and which chapters depend on the term.
On this page
Last updated September 7, 2026 · Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The [ICC code library](https://codes.iccsafe.org/codes) publishes the current model text and the [ICC adoption maps](https://www.iccsafe.org/advocacy/code-adoption-maps/) show which edition a jurisdiction has adopted; those sources control.
Direct answer
Modular boiler is a defined term in the International Mechanical Code (IMC) 2009, in Definitions. The code's own words are: “A steam or hot-water-heating assembly consisting of a group of individual boilers called modules intended to be installed as a unit with no intervening stop valves. Modules are under one jacket or are individually jacketed. The individual modules shall be limited to a maximum input rating of 400,000 Btulh (117 228 W) gas, 3 gallons …” No other I-Code in this corpus defines it, so the IMC 2009 definition is the one to work from. The term is used in 3 chapters of this corpus, most often in Boilers, Water Heaters and Pressure Vessels (IMC 2009), Boilers and Water Heaters (IRC 2009), Definitions (IMC 2009). These pages transcribe the 2009 model text; verify the definition against the edition and amendments your authority having jurisdiction has adopted.
Content and cited inputs reviewed by Scott Barrington, Harth founder and architectural technology specialist · Published 2026-09-07 · Updated 2026-09-07.
What does this term mean?
Modular Boiler — IMC 2009, Definitions:
A steam or hot-water-heating assembly consisting of a group of individual boilers called modules intended to be installed as a unit with no intervening stop valves. Modules are under one jacket or are individually jacketed. The individual modules shall be limited to a maximum input rating of 400,000 Btulh (117 228 W) gas, 3 gallons per hour (gph) (11.4 L/h) oil, or 115 kW (electric).
What must be verified before using this guidance?
Modular Boiler is defined once in this corpus, in the Definitions chapter of the International Mechanical Code (IMC) 2009:
A steam or hot-water-heating assembly consisting of a group of individual boilers called modules intended to be installed as a unit with no intervening stop valves. Modules are under one jacket or are individually jacketed. The individual modules shall be limited to a maximum input rating of 400,000 Btulh (117 228 W) gas, 3 gallons per hour (gph) (11.4 L/h) oil, or 115 kW (electric).
Where modular boiler is used in the code
The term appears in 3 chapters of the 2009 I-Codes hosted here. The chapters that lean on it hardest are the ones to read next.
| Chapter | Code | Mentions |
|---|---|---|
| Boilers, Water Heaters and Pressure Vessels | IMC 2009 | 5 |
| Boilers and Water Heaters | IRC 2009 | 3 |
| Definitions | IMC 2009 | 1 |
The term in use
How the code actually writes about modular boiler, quoted from the 2009 text hosted here:
Every boiler or modular boiler shall have a shutoff valve in the supply and return piping.
The terms modular boiler is built out of
The definition above leans on 1 other defined term. Each carries its own code definition, and a local amendment to any of them changes what modular boiler covers:
- Shall — IRC 2009: The term, when used in the code, is construed as mandatory.
Modular Boiler: what to open, and in what order
Every row is a document this term depends on. The ICC code library and the ICC adoption maps cover the middle rows.
| Check | Where | Confirmed |
|---|---|---|
| Read the definition in the adopted IMC | Definitions | |
| Re-check the requirement that uses it | Boilers, Water Heaters and Pressure Vessels (IMC 2009) | |
| Re-check the requirement that uses it | Boilers and Water Heaters (IRC 2009) | |
| Re-check the requirement that uses it | Definitions (IMC 2009) | |
| Confirm the dependent definition | Shall | |
| Local amendment to any of the above | Jurisdiction's amendment list |
A research aid, not a code determination. The authority having jurisdiction decides which edition and which amendments apply.
Where can you explore related guidance?
- Explore all glossary guidance
- Building: Building Code Definition
- Construction Documents: Building Code Definition
- Registered Design Professional: Building Code Definition
- Dwelling Unit: Building Code Definition
Sources and method
Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The ICC code library publishes the current model text and the ICC adoption maps show which edition a jurisdiction has adopted; those sources control.
Source links
Frequently asked questions
What is the code definition of modular boiler?
The International Mechanical Code (IMC) 2009 defines it in Definitions as: “A steam or hot-water-heating assembly consisting of a group of individual boilers called modules intended to be installed as a unit with no intervening stop valves. Modules are under one jacket or are individually jacketed. The individual modules shall be limited to a maximum input rating of 400,000 Btulh (117 228 W) gas, 3 gallons per hour (gph) (11.4 L/h) oil, or 115 kW (electric).” The 2009 model text is reproduced here; the definition that binds your project is the one in the edition your jurisdiction has adopted, as amended locally.
Which parts of the code depend on modular boiler?
In this corpus the term is used across 3 chapters, led by Boilers, Water Heaters and Pressure Vessels in the IMC 2009. Those are the sections whose scope moves if the definition is amended locally, so read them together with Chapter 2 rather than on their own.
What is a modular boiler?
In the 2009 I-Codes hosted here it is a defined term rather than a description. The IMC 2009 states, in Definitions: “A steam or hot-water-heating assembly consisting of a group of individual boilers called modules intended to be installed as a unit with no intervening stop valves. Modules are under one jacket or are individually jacketed. The individual modules shall be limited to a maximum input rating of 400,000 Btulh (117 228 W) gas, 3 gallons …” It is defined in IMC 2009. Because it is a defined term, whatever the adopted edition says it means is what every section using it means — so check Chapter 2 of that edition and any local amendment before relying on this wording.
