Building Code Glossary
Effective Opening: Building Code Definition
How the IRC 2009, IPC 2009 define effective opening, where the wording differs, and which chapters depend on the term.
On this page
Last updated September 7, 2026 · Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The [ICC code library](https://codes.iccsafe.org/codes) publishes the current model text and the [ICC adoption maps](https://www.iccsafe.org/advocacy/code-adoption-maps/) show which edition a jurisdiction has adopted; those sources control.
Direct answer

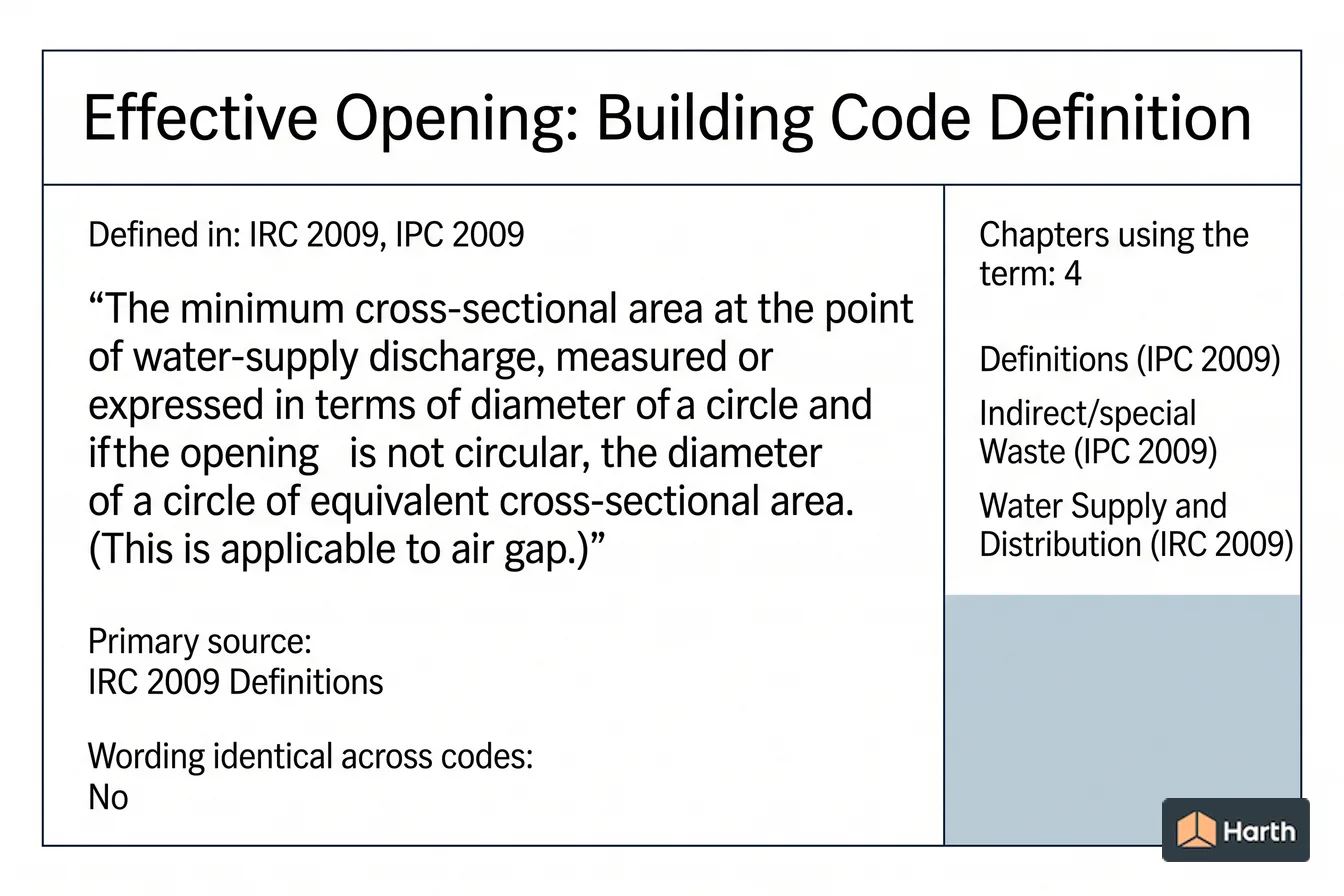

Effective opening is a defined term in the International Residential Code (IRC) 2009, in Definitions. The code's own words are: “The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.)” The IPC 2009 defines the same term with different wording, so the controlling text depends on which code governs the question in front of you — the comparison below sets the versions side by side. The term is used in 4 chapters of this corpus, most often in Definitions (IPC 2009), Indirect/special Waste (IPC 2009), Water Supply and Distribution (IRC 2009). These pages transcribe the 2009 model text; verify the definition against the edition and amendments your authority having jurisdiction has adopted.
Content and cited inputs reviewed by Scott Barrington, Harth founder and architectural technology specialist · Published 2026-09-07 · Updated 2026-09-07.
What does this term mean?
Effective Opening — IRC 2009, Definitions:
The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.)
What must be verified before using this guidance?
Two of the I-Codes in this corpus define Effective Opening, and the wording is not identical — read the version that governs your question.
| Code | Where it is defined | Definition |
|---|---|---|
| IRC 2009 | Definitions | The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.) |
| IPC 2009 | Definitions | The minimum cross-sectional area at the point of water supply discharge, measured or expressed in terms of the diameter of a circle or, if the opening is not circu-1ar' the diameter of a circle of equivalent cross-sectional area. For faucets and similar fittings, the effective opening shall be measured at the smallest orifice in the fitting body or in the supply piping to the fitting. |
Where effective opening is used in the code
The term appears in 4 chapters of the 2009 I-Codes hosted here. The chapters that lean on it hardest are the ones to read next.
| Chapter | Code | Mentions |
|---|---|---|
| Definitions | IPC 2009 | 2 |
| Indirect/special Waste | IPC 2009 | 2 |
| Water Supply and Distribution | IRC 2009 | 2 |
| Definitions | IRC 2009 | 1 |
The term in use
How the code actually writes about effective opening, quoted from the 2009 text hosted here:
The minimum required air gap shall be twice the diameter ofthe effective opening ofthe outlet, but in no case less than the values specified in Table P2902.3.1.
The terms effective opening is built out of
The definition above leans on 4 other defined terms. Each carries its own code definition, and a local amendment to any of them changes what effective opening covers:
- Diameter — IRC 2009: Unless specifically stated, the term "diameter" is the nominal diameter as designated by the approved material standard.
- Fitting — IRC 2009: An accessory such as a locknut, bushing or other part of a wiring system that is intended primarily to perform a mechanical rather than an electrical function.
- Piping — IRC 2009: Where used in this code, “piping” refers to either pipe or tubing, or both.
- Shall — IRC 2009: The term, when used in the code, is construed as mandatory.
Effective Opening: what to open, and in what order
Every row is a document this term depends on. The ICC code library and the ICC adoption maps cover the middle rows.
| Check | Where | Confirmed |
|---|---|---|
| Read the definition in the adopted IRC | Definitions | |
| Read the definition in the adopted IPC | Definitions | |
| Re-check the requirement that uses it | Definitions (IPC 2009) | |
| Re-check the requirement that uses it | Indirect/special Waste (IPC 2009) | |
| Re-check the requirement that uses it | Water Supply and Distribution (IRC 2009) | |
| Re-check the requirement that uses it | Definitions (IRC 2009) | |
| Confirm the dependent definition | Diameter | |
| Confirm the dependent definition | Fitting | |
| Confirm the dependent definition | Piping | |
| Local amendment to any of the above | Jurisdiction's amendment list |
A research aid, not a code determination. The authority having jurisdiction decides which edition and which amendments apply.
Where can you explore related guidance?
- Explore all glossary guidance
- Diameter: Building Code Definition
- Fitting: Building Code Definition
- Piping: Building Code Definition
Sources and method
Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The ICC code library publishes the current model text and the ICC adoption maps show which edition a jurisdiction has adopted; those sources control.
Source links
Frequently asked questions
What is the code definition of effective opening?
The International Residential Code (IRC) 2009 defines it in Definitions as: “The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.)” The 2009 model text is reproduced here; the definition that binds your project is the one in the edition your jurisdiction has adopted, as amended locally.
Which parts of the code depend on effective opening?
In this corpus the term is used across 4 chapters, led by Definitions in the IPC 2009. Those are the sections whose scope moves if the definition is amended locally, so read them together with Chapter 2 rather than on their own.
What is considered a structure in building code?
Structure is a separate defined term. The IPC 2009 defines it as: “That which is built or constructed or a portion thereof.” That is not the same as effective opening, which the IRC 2009 defines as “The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.)” — read both before applying either, and confirm the wording in the edition your jurisdiction has adopted.
What does IRC mean in building code?
Building is a separate defined term. The IBC 2009 defines it as: “Any structure used or intended for supporting or sheltering any use or occupancy.” That is not the same as effective opening, which the IRC 2009 defines as “The minimum cross-sectional area at the point of water-supply discharge, measured or expressed in terms of diameter ofa circle and ifthe opening is not circular, the diameter of a circle of equivalent cross-sectional area. (This is applicable to air gap.)” — read both before applying either, and confirm the wording in the edition your jurisdiction has adopted.
