Building Code Glossary
Mechanical Draft System: Building Code Definition
How the IRC 2009, IMC 2009 define mechanical draft system, where the wording differs, and which chapters depend on the term.
On this page
Last updated September 7, 2026 · Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The [ICC code library](https://codes.iccsafe.org/codes) publishes the current model text and the [ICC adoption maps](https://www.iccsafe.org/advocacy/code-adoption-maps/) show which edition a jurisdiction has adopted; those sources control.
Direct answer

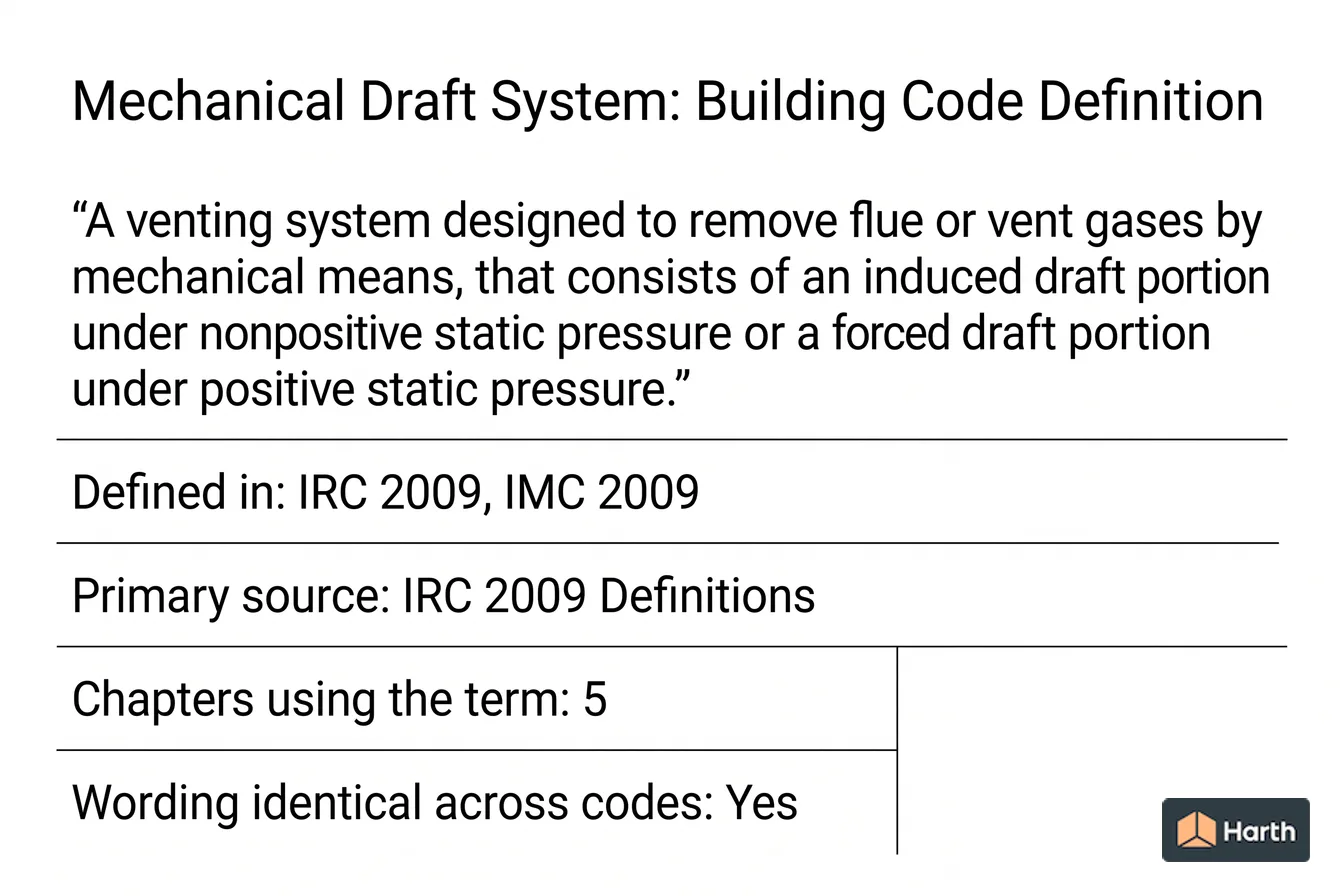

Mechanical draft system is a defined term in the International Residential Code (IRC) 2009, in Definitions. The code's own words are: “A venting system designed to remove flue or vent gases by mechanical means, that consists of an induced draft portion under nonpositive static pressure or a forced draft portion under positive static pressure.” The IMC 2009 carries the same definition word for word, so the term means the same thing in each. The term is used in 5 chapters of this corpus, most often in Fuel Gas (IRC 2009), Chimneys and Vents (IMC 2009), Chimneys and Vents (IRC 2009). These pages transcribe the 2009 model text; verify the definition against the edition and amendments your authority having jurisdiction has adopted.
Content and cited inputs reviewed by Scott Barrington, Harth founder and architectural technology specialist · Published 2026-09-07 · Updated 2026-09-07.
What does this term mean?
Mechanical Draft System — IRC 2009, Definitions:
A venting system designed to remove flue or vent gases by mechanical means, that consists of an induced draft portion under nonpositive static pressure or a forced draft portion under positive static pressure.
What must be verified before using this guidance?
Two of the I-Codes in this corpus define Mechanical Draft System, in identical words.
| Code | Where it is defined | Definition |
|---|---|---|
| IRC 2009 | Definitions | A venting system designed to remove flue or vent gases by mechanical means, that consists of an induced draft portion under nonpositive static pressure or a forced draft portion under positive static pressure. |
| IMC 2009 | Definitions | A venting system designed to remove flue or vent gases by mechanical means, that consists of an induced-draft portion under nonpositive static pressure or a forced-draft portion under positive static pressure. |
Where mechanical draft system is used in the code
The term appears in 5 chapters of the 2009 I-Codes hosted here. The chapters that lean on it hardest are the ones to read next.
| Chapter | Code | Mentions |
|---|---|---|
| Fuel Gas | IRC 2009 | 22 |
| Chimneys and Vents | IMC 2009 | 11 |
| Chimneys and Vents | IRC 2009 | 7 |
| Definitions | IMC 2009 | 1 |
| Definitions | IRC 2009 | 1 |
The term in use
How the code actually writes about mechanical draft system, quoted from the 2009 text hosted here:
Vent connectors serving Category I appliances shall not be connected to any portion of a mechanical draft system operating under positive static pressure, such as those serving Category III or IV appliances.
A mechanical draft system shall be used only with appliances listed and labeled for such use.
Mechanical Draft System compared with Natural Draft System
These two are the closest pair in the 2009 I-Codes: about 57 per cent of their defining words are the same. The code states both and compares neither, so the difference is worth naming.
| Wording unique to it | |
|---|---|
| Mechanical Draft System (IRC 2009) | mechanical, means, consists, induced, portion, forced, positive |
| Natural Draft System (IRC 2009) | entirely, natural |
Everything else in the two definitions is shared. If a project turns on which of the two applies, those words are the whole of the test — and a local amendment that edits one of them without editing the other moves the boundary between mechanical draft system and natural draft system.
The terms mechanical draft system is built out of
The definition above leans on 5 other defined terms. Each carries its own code definition, and a local amendment to any of them changes what mechanical draft system covers:
- Venting System — IRC 2009: A continuous open passageway from the flue collar or draft hood of an appliance to the outside atmosphere for the purpose of removing flue or vent gases.
- Vent Gases — IRC 2009: Products of combustion from fuel-burning appliances, plus excess air and dilution air, in the venting system above the draft hood or draft regulator.
- Venting — IRC 2009: Removal of combustion products to the outdoors.
- System — IFC 2009: An assembly of equipment consisting of a tank, container or containers, appurtenances, pumps, compressors and connecting piping.
- Draft — IRC 2009: The pressure difference existing between the appliance or any component part and the atmosphere, that causes a continuous flow of air and products of combustion through the gas passages of the appliance to the atmosphere.
Mechanical Draft System: what to open, and in what order
Every row is a document this term depends on. The ICC code library and the ICC adoption maps cover the middle rows.
| Check | Where | Confirmed |
|---|---|---|
| Read the definition in the adopted IRC | Definitions | |
| Read the definition in the adopted IMC | Definitions | |
| Re-check the requirement that uses it | Fuel Gas (IRC 2009) | |
| Re-check the requirement that uses it | Chimneys and Vents (IMC 2009) | |
| Re-check the requirement that uses it | Chimneys and Vents (IRC 2009) | |
| Re-check the requirement that uses it | Definitions (IMC 2009) | |
| Confirm the dependent definition | Venting System | |
| Confirm the dependent definition | Vent Gases | |
| Confirm the dependent definition | Venting | |
| Local amendment to any of the above | Jurisdiction's amendment list |
A research aid, not a code determination. The authority having jurisdiction decides which edition and which amendments apply.
Where can you explore related guidance?
- Explore all glossary guidance
- Venting System: Building Code Definition
- Vent Gases: Building Code Definition
- Venting: Building Code Definition
- System: Building Code Definition
Sources and method
Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The ICC code library publishes the current model text and the ICC adoption maps show which edition a jurisdiction has adopted; those sources control.
Source links
Frequently asked questions
What is the code definition of mechanical draft system?
The International Residential Code (IRC) 2009 defines it in Definitions as: “A venting system designed to remove flue or vent gases by mechanical means, that consists of an induced draft portion under nonpositive static pressure or a forced draft portion under positive static pressure.” The 2009 model text is reproduced here; the definition that binds your project is the one in the edition your jurisdiction has adopted, as amended locally.
Which parts of the code depend on mechanical draft system?
In this corpus the term is used across 5 chapters, led by Fuel Gas in the IRC 2009. Those are the sections whose scope moves if the definition is amended locally, so read them together with Chapter 2 rather than on their own.
