Solar Shading Design: Bengaluru, India

Direct answer

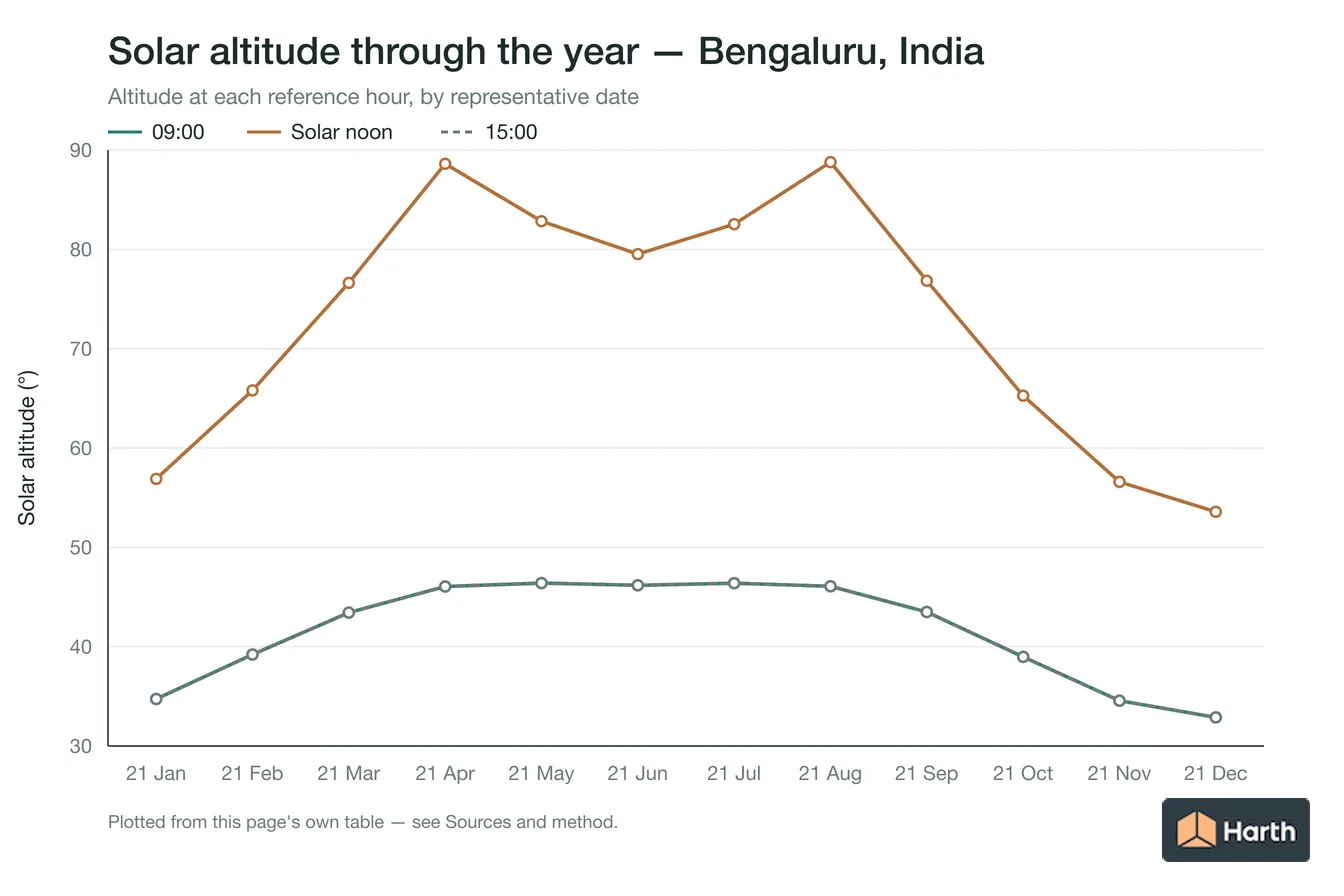

For Bengaluru at 12.9719, 77.5937, the declination-only solar-noon altitude is approximately 79.5° at the June solstice, 77.0° at an equinox and 53.6° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 1277333 in administrative area 19, at 12.9719, 77.5937; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 79.5° at the June solstice, 77.0° at an equinox and 53.6° at the December solstice. Representative 21st-day geometry ranges from about 11.2 hours in December to 12.8 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this solar shading design record.

Content and cited inputs reviewed by Harth team · Published 2026-08-26 · Updated 2026-09-02.

What must be verified for Bengaluru?

Bengaluru is represented here at approximately 12.9719, 77.5937 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.

How should solar shading design be established?

1. Fix the surveyed site and local time basis.
2. Select an authoritative weather source or a named solar-position algorithm.
3. Record period, percentile or scenario and units.
4. Test sensitivity to elevation, exposure, urban form and horizon.
5. Save the source file, retrieval date and checker in the model record.

What are the limits of this worksheet?

This shading-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Bengaluru site remain authoritative.

Bengaluru horizontal-overhang screening worksheet

Bengaluru overhang sizing hand check

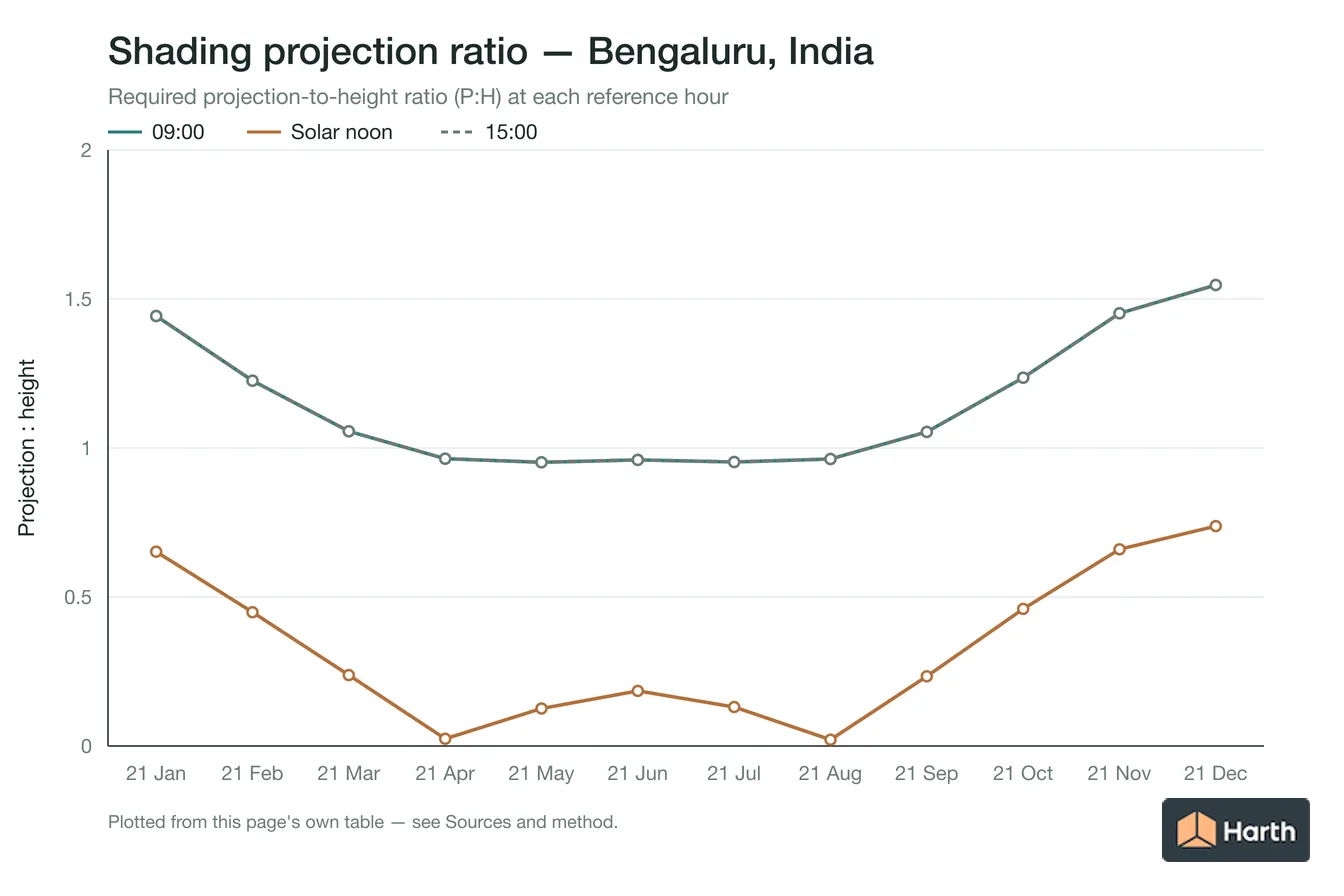

P:H is projection depth divided by the vertical facade distance to shade, calculated as 1 / tan(solar altitude). For a 1.20 m vertical target, multiply the table ratio by 1.20 m. The 09:00 and 15:00 columns use apparent solar time and show the solar-profile-plane ratio; they do not resolve facade azimuth, horizontal shadow displacement or a side-fin geometry.

The Bengaluru worksheet uses latitude 12.9719° and records longitude 77.5937°. A project study must replace the reference point, use the actual facade normal and obstruction mask, convert to civil time, test the full occupied period and account for diffuse sky, glazing and thermal performance. Refine solar positions with the NREL SPA.
