Solar Shading Design: Kota Kuala Muda, Malaysia
How to research solar shading design for a specific site in Kota Kuala Muda — the controlling authority, source documents, and checks to run before you rely on a number.
Last updated September 2, 2026 · Location data from the [GeoNames MY dump](https://download.geonames.org/export/dump/MY.zip) (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 6847550). Regulatory starting point: [the applicable state and local authority](https://jkt.kpkt.gov.my/). Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: [NOAA Solar Calculation Details](https://gml.noaa.gov/grad/solcalc/calcdetails.html); the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: [NREL Solar Position Algorithm](https://midcdmz.nrel.gov/spa/).
Direct answer
For Kota Kuala Muda at 5.5882, 100.3709, the declination-only solar-noon altitude is approximately 72.2° at the June solstice, 84.4° at an equinox and 61.0° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 6847550 in administrative area 02, at 5.5882, 100.3709; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 72.2° at the June solstice, 84.4° at an equinox and 61.0° at the December solstice. Representative 21st-day geometry ranges from about 11.7 hours in December to 12.3 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this solar shading design record.
Prepared by Harth · Topic-specific calculated asset and fresh SERP brief passed editorial screening; page remains noindex pending the independent content, evidence, similarity and link gates · Published 2026-08-26 · Updated 2026-09-02.
What must be verified for Kota Kuala Muda?
Kota Kuala Muda is represented here at approximately 5.5882, 100.3709 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.
How should solar shading design be established?
- Fix the surveyed site and local time basis.
- Select an authoritative weather source or a named solar-position algorithm.
- Record period, percentile or scenario and units.
- Test sensitivity to elevation, exposure, urban form and horizon.
- Save the source file, retrieval date and checker in the model record.
| Input | Project-specific evidence | QA question |
|---|---|---|
| Site | surveyed coordinates, elevation and horizon | Does the point represent the building? |
| Weather/solar method | named dataset, algorithm, period and time basis | Are station, time zone and units explicit? |
| Design scenario | current and future scenario agreed by the team | Is an average being mistaken for an extreme? |
| Compliance | adopted local document and edition | Was applicability confirmed with the authority? |
What are the limits of this worksheet?
This shading-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Kota Kuala Muda site remain authoritative.

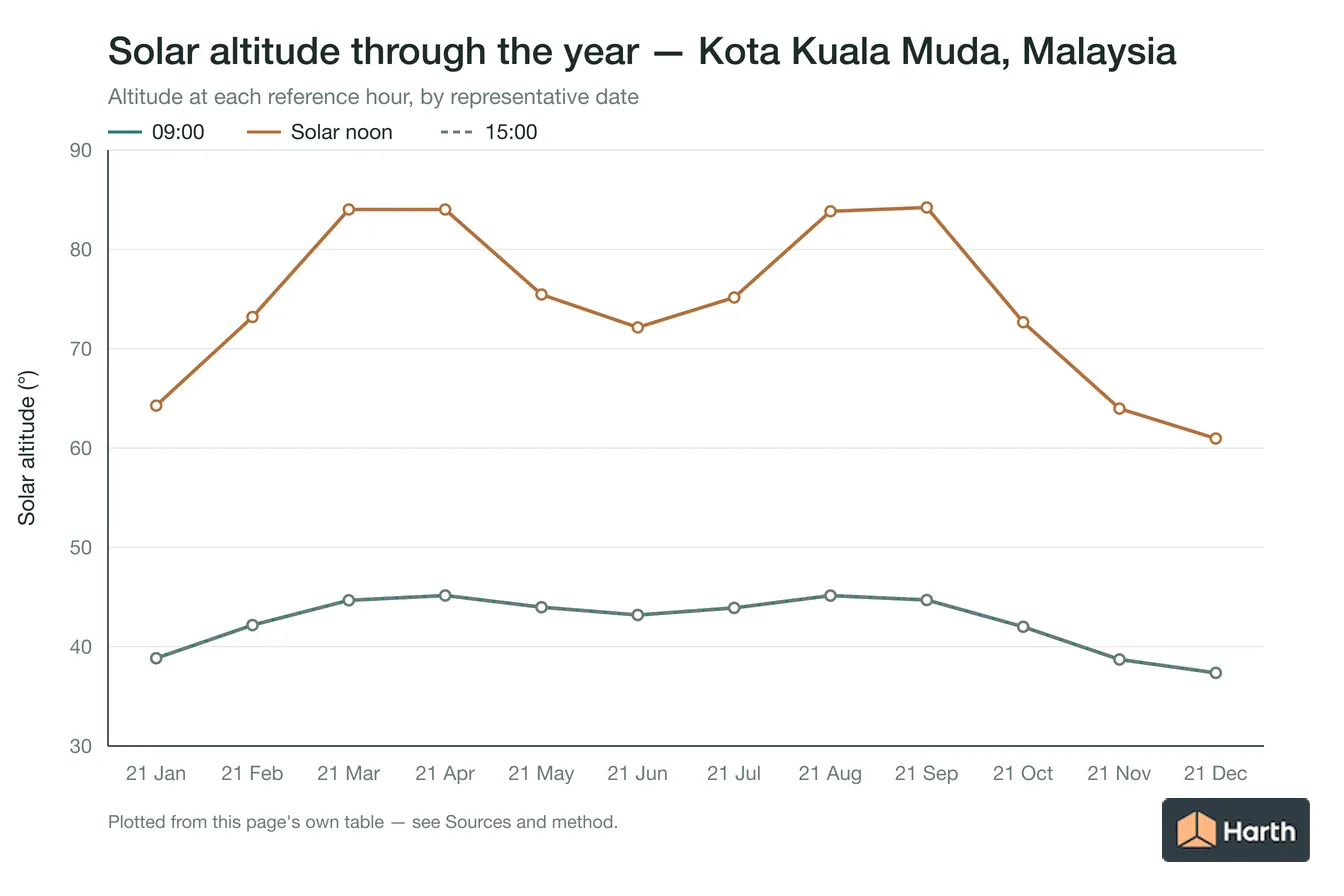

Kota Kuala Muda horizontal-overhang screening worksheet
| Representative date | 09:00 altitude / P:H | Solar noon altitude / P:H | 15:00 altitude / P:H |
|---|---|---|---|
| 21 January | 38.84° / 1.242 | 64.27° / 0.482 | 38.84° / 1.242 |
| 21 February | 42.17° / 1.104 | 73.19° / 0.302 | 42.17° / 1.104 |
| 21 March | 44.67° / 1.012 | 84.01° / 0.105 | 44.67° / 1.012 |
| 21 April | 45.15° / 0.995 | 84.01° / 0.105 | 45.15° / 0.995 |
| 21 May | 43.97° / 1.037 | 75.45° / 0.260 | 43.97° / 1.037 |
| 21 June | 43.19° / 1.065 | 72.14° / 0.322 | 43.19° / 1.065 |
| 21 July | 43.90° / 1.039 | 75.15° / 0.265 | 43.90° / 1.039 |
| 21 August | 45.14° / 0.995 | 83.83° / 0.108 | 45.14° / 0.995 |
| 21 September | 44.70° / 1.011 | 84.21° / 0.101 | 44.70° / 1.011 |
| 21 October | 42.00° / 1.111 | 72.66° / 0.312 | 42.00° / 1.111 |
| 21 November | 38.71° / 1.248 | 63.97° / 0.488 | 38.71° / 1.248 |
| 21 December | 37.36° / 1.310 | 60.96° / 0.555 | 37.36° / 1.310 |

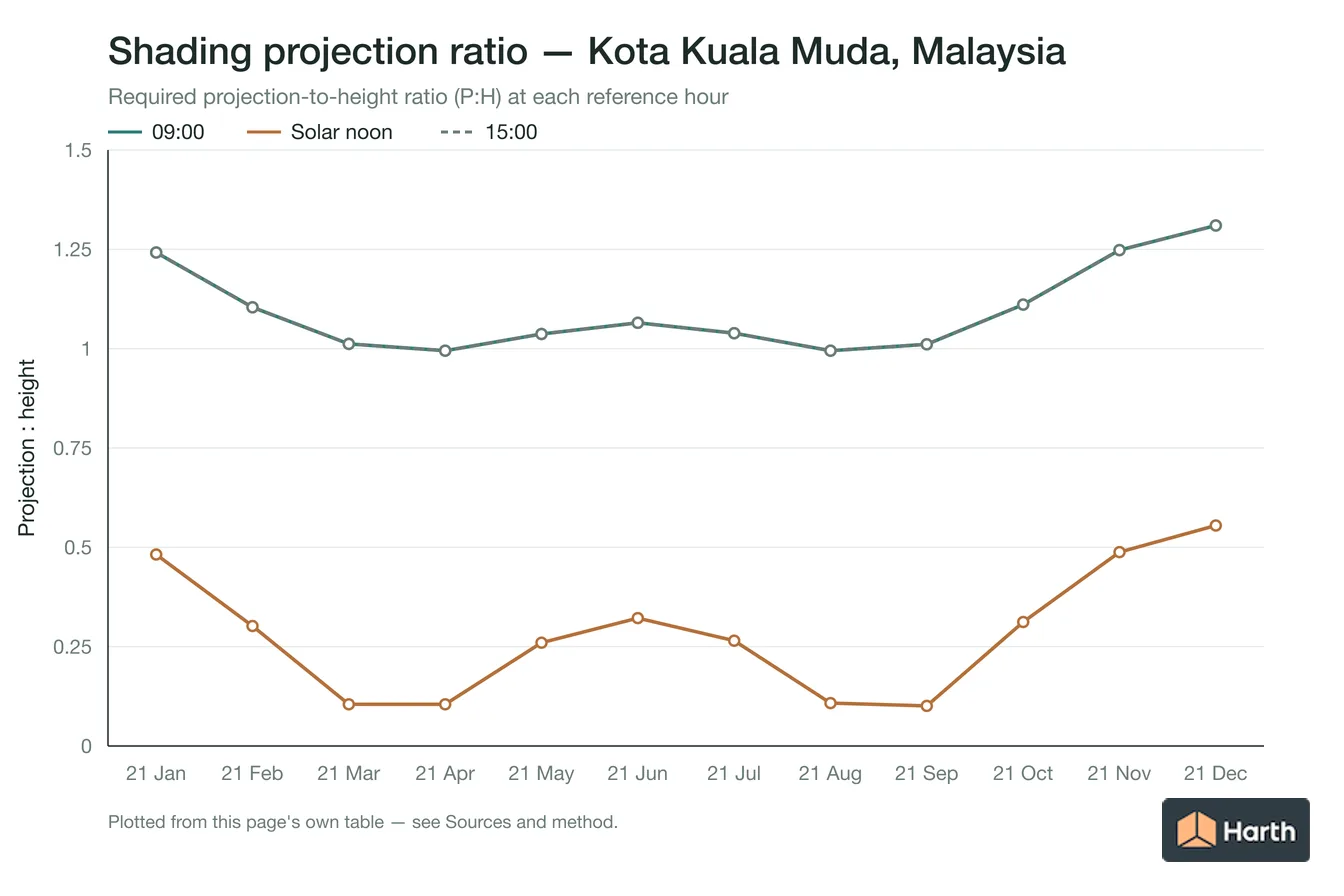

Kota Kuala Muda overhang sizing hand check
P:H is projection depth divided by the vertical facade distance to shade, calculated as 1 / tan(solar altitude). For a 1.20 m vertical target, multiply the table ratio by 1.20 m. The 09:00 and 15:00 columns use apparent solar time and show the solar-profile-plane ratio; they do not resolve facade azimuth, horizontal shadow displacement or a side-fin geometry.
The Kota Kuala Muda worksheet uses latitude 5.5882° and records longitude 100.3709°. A project study must replace the reference point, use the actual facade normal and obstruction mask, convert to civil time, test the full occupied period and account for diffuse sky, glazing and thermal performance. Refine solar positions with the NREL SPA.
Where can you explore related guidance?
- Explore all solar data guidance
- Sun Path: Kota Kuala Muda, Malaysia
- Solar Altitude & Azimuth: Kota Kuala Muda, Malaysia
- Daylight & Orientation: Kota Kuala Muda, Malaysia
- Solar Shading Design: Sungai Petani, Malaysia
- All solar & daylight data guidance for Malaysia
- Climate Design Data: Kota Kuala Muda, Malaysia
Sources and method
Location data from the GeoNames MY dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 6847550). Regulatory starting point: the applicable state and local authority. Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: NOAA Solar Calculation Details; the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: NREL Solar Position Algorithm.
Source links
Frequently asked questions
What does the solar shading design record for Kota Kuala Muda establish?
The solar shading design record for Kota Kuala Muda establishes a reproducible discovery point at 5.5882, 100.3709 (GeoNames ID 6847550, administrative area 02) and a Malaysia source path. It does not establish a final project value, approval or parcel decision.
What must be replaced before using this solar shading design workflow for a project in Kota Kuala Muda?
For the solar shading design record in Kota Kuala Muda, replace the 5.5882, 100.3709 city reference with the surveyed site or parcel, identify the competent local authority, and verify the current documents under Uniform Building By-Laws and state or local-authority adoption. Record the edition, retrieval date, units, assumptions and named checker before relying on the result.
