Solar & Daylight Data
Solar Shading Design: Sydney, Australia
Which months need shading in Sydney, Australia, and how much sun overhangs and fins block on each facade.
On this page
Last updated September 25, 2026 · Location: GeoNames point -33.8678, 151.2073 ([GeoNames AU dump](https://download.geonames.org/export/dump/AU.zip), CC BY 4.0, ID 2147714); time zone Australia/Sydney from the same GeoNames record. Sun positions, sunrise and sunset calculated by Harth with [NOAA's solar calculator equations](https://gml.noaa.gov/grad/solcalc/calcdetails.html), including standard atmospheric refraction, for a sea-level horizon. Sunlight, cloud and air temperature: [NASA POWER climatology](https://power.larc.nasa.gov/docs/services/api/temporal/climatology/) monthly means for 2001–2020 at this point (API v2.10.0, retrieved 2026-09-25).
Direct answer
Sydney has 7 warm months (October to April) with mean air temperature of 18 °C or more. Through them an overhang projecting 1.02 times the window height fully shades a north-facing window at noon. East and west windows get 6.5 hours of direct sun a day, and a P:H 1.0 overhang stops only 46% and 45% of it. The warmest month averages 22.9 °C. On the north facade a P:H 1.0 overhang blocks 83% of the warm-month direct sun. Fins with a depth equal to the window width block 23% (east) and 21% (west) of the east- and west-facade sun. The south facade gets 3.8 hours of direct sun a day in October to April.
Content and cited inputs reviewed by Harth team · Published 2026-08-26 · Updated 2026-09-25.

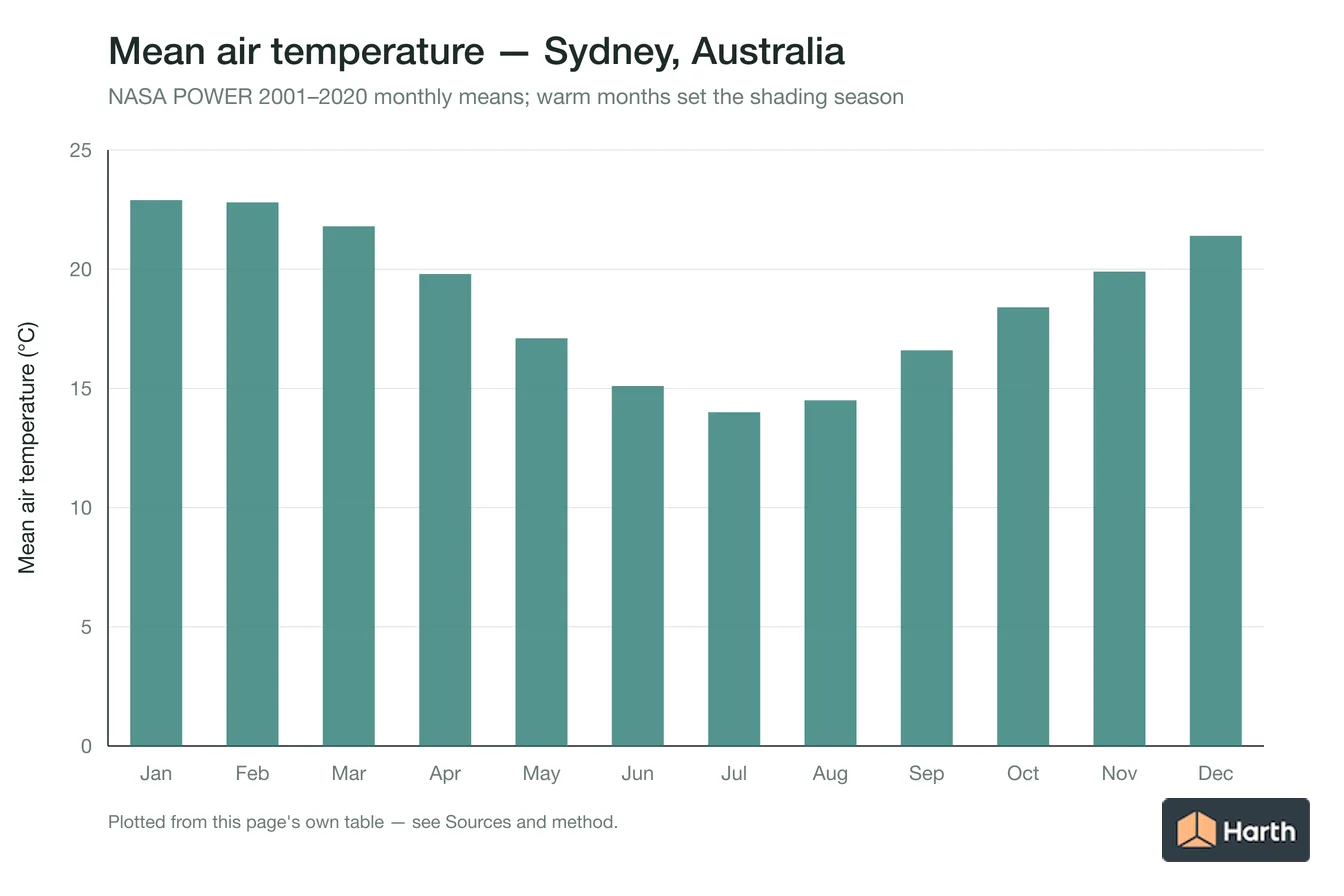

Which months need shading in Sydney?

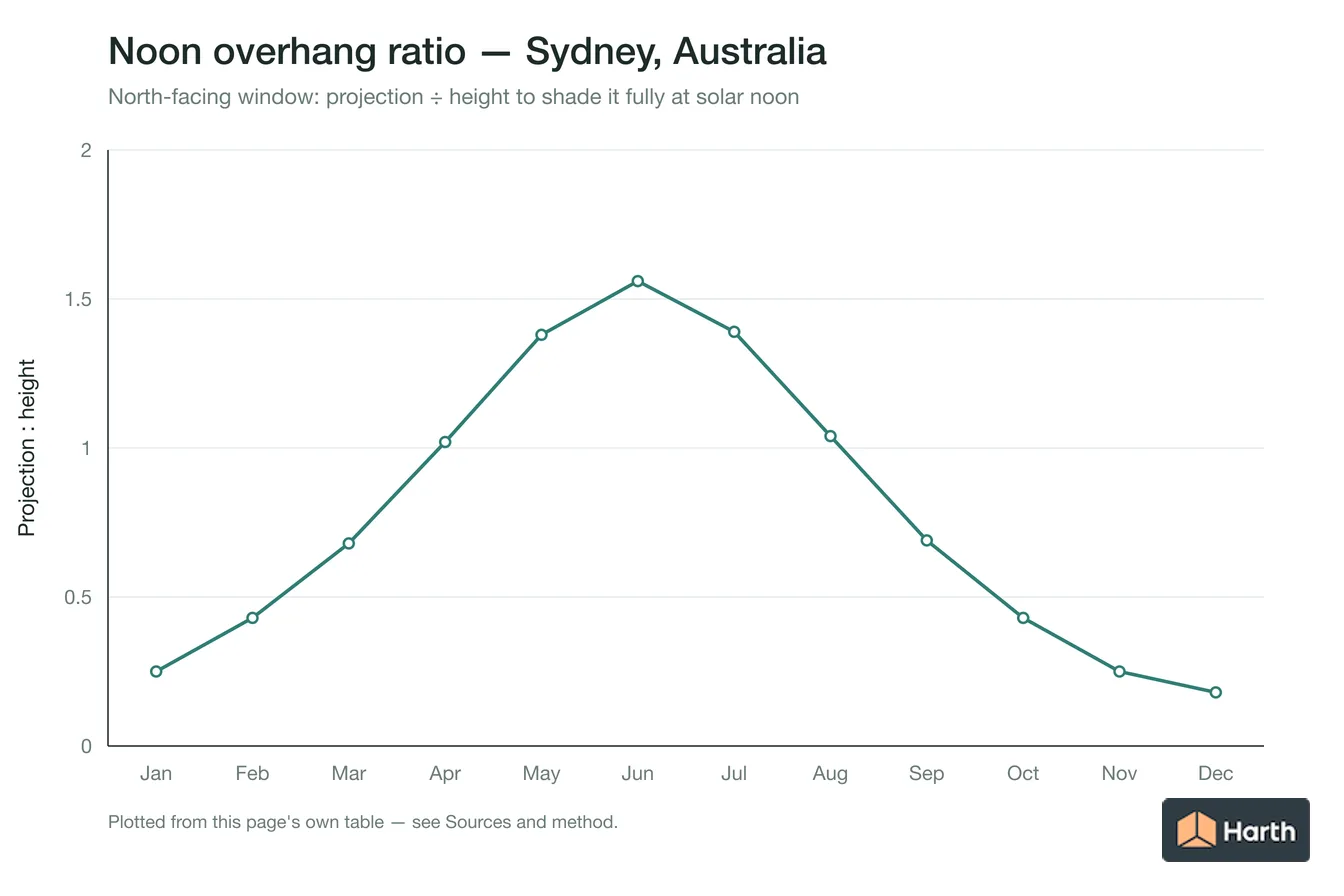

Warm months are those whose NASA POWER mean air temperature is 18 °C or higher. The last column is the overhang projection, as a fraction of window height, that fully shades a north-facing window at solar noon on the 21st.
| Month | Mean air temp (°C) | Warm month | Noon altitude | North facade noon P:H |
|---|---|---|---|---|
| January | 22.9 | yes | 76.1° | 0.25 |
| February | 22.8 | yes | 66.7° | 0.43 |
| March | 21.8 | yes | 56.0° | 0.68 |
| April | 19.8 | yes | 44.3° | 1.02 |
| May | 17.1 | no | 36.0° | 1.38 |
| June | 15.1 | no | 32.7° | 1.56 |
| July | 14.0 | no | 35.7° | 1.39 |
| August | 14.5 | no | 44.0° | 1.04 |
| September | 16.6 | no | 55.4° | 0.69 |
| October | 18.4 | yes | 66.8° | 0.43 |
| November | 19.9 | yes | 76.0° | 0.25 |
| December | 21.4 | yes | 79.6° | 0.18 |
How much warm-month sun each Sydney facade gets, and what blocks it
Averaged over the 21st of each warm month (October to April). Percentages are the share of the minutes the sun is on that facade during which the device fully shades the glazing. Overhang P:H is projection ÷ window height; fin D:W is fin depth ÷ window width, with a fin on each side.
| Facade | Direct sun (h/day) | Overhang P:H 0.5 | Overhang P:H 1.0 | Fins D:W 1.0 | Overhang + fins 1.0 |
|---|---|---|---|---|---|
| North | 9.2 | 64% | 83% | 69% | 92% |
| North-east | 7.9 | 31% | 58% | 41% | 78% |
| East | 6.5 | 27% | 46% | 23% | 46% |
| South-east | 5.0 | 33% | 50% | 63% | 66% |
| South | 3.8 | 45% | 61% | 100% | 100% |
| South-west | 5.1 | 32% | 50% | 62% | 65% |
| West | 6.5 | 25% | 45% | 21% | 46% |
| North-west | 8.0 | 31% | 57% | 43% | 78% |
What this means for shading design in Sydney
The north facade is the easy one: the sun reaches it high in the sky, so a fixed horizontal overhang does most of the work (P:H 1.0 blocks 83% of its warm-month sun). East and west facades take low morning and afternoon sun that passes under any practical overhang; there, fins with D:W 1.0 block 23% (east) and 21% (west), and adjustable external blinds or screens are the dependable answer. The facades that keep the most unblocked sun with both an overhang and fins at 1.0 are east and west.
How these figures were calculated
Sun positions come from NOAA's solar equations at the GeoNames point -33.8678, 151.2073, sampled every 10 minutes from sunrise to sunset on the 21st of each warm month. A facade is sunlit when the sun is above the horizon and in front of it; a device fully shades the window when the vertical shadow angle (overhang) or horizontal shadow angle (fins) exceeds its cut-off angle. Overhangs and fins are assumed to extend well past the window edges, and diffuse sky light, glass type and obstructions are not included. Air temperatures are NASA POWER 2001–2020 monthly means.
Where can you explore related guidance?
- Explore all solar data guidance
- Sun Path: Sydney, Australia
- Solar Altitude & Azimuth: Sydney, Australia
- Daylight & Orientation: Sydney, Australia
- All solar & daylight data guidance for Australia
- House Construction Cost Planning: Sydney, Australia
- Office Construction Cost Planning: Sydney, Australia
- Retail Construction Cost Planning: Sydney, Australia
- School Construction Cost Planning: Sydney, Australia
Sources and method
Location: GeoNames point -33.8678, 151.2073 (GeoNames AU dump, CC BY 4.0, ID 2147714); time zone Australia/Sydney from the same GeoNames record. Sun positions, sunrise and sunset calculated by Harth with NOAA's solar calculator equations, including standard atmospheric refraction, for a sea-level horizon. Sunlight, cloud and air temperature: NASA POWER climatology monthly means for 2001–2020 at this point (API v2.10.0, retrieved 2026-09-25).
Source links
Frequently asked questions
How deep should a north-facing overhang be in Sydney?
To shade a north-facing window fully at solar noon through Sydney's warm months (October to April), the overhang should project 1.02 times the height from the overhang to the window sill; for a 1.5 m tall window that is about 1.54 m.
Do east and west windows in Sydney need shading?
Yes. In October to April east and west windows in Sydney get about 6.5 hours of direct sun a day, mostly at low angles: a P:H 1.0 overhang blocks only 46% and 45% of it, while fins with D:W 1.0 block 23% and 21%.
Which months need sun shading in Sydney?
Using NASA POWER 2001–2020 monthly means, October to April average 18 °C or more in Sydney. The warmest month averages 22.9 °C and the coolest 14.0 °C.
