Daylight & Orientation: Waterford, Ireland

How to research daylight & orientation for a specific site in Waterford — the controlling authority, source documents, and checks to run before you rely on a number.

Get started for free

Last updated September 2, 2026 · Location data from the [GeoNames IE dump](https://download.geonames.org/export/dump/IE.zip) (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 2960992). Regulatory starting point: [Department of Housing, Local Government and Heritage and the local building-control authority](https://www.gov.ie/en/department-of-housing-local-government-and-heritage/collections/building-standards/). Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: [NOAA Solar Calculation Details](https://gml.noaa.gov/grad/solcalc/calcdetails.html); the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: [NREL Solar Position Algorithm](https://midcdmz.nrel.gov/spa/).

Direct answer

For Waterford at 52.2583, -7.1119, the declination-only solar-noon altitude is approximately 61.2° at the June solstice, 37.7° at an equinox and 14.3° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 2960992 in administrative area M, at 52.2583, -7.1119; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 61.2° at the June solstice, 37.7° at an equinox and 14.3° at the December solstice. Representative 21st-day geometry ranges from about 7.5 hours in December to 16.5 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this daylight and building orientation record.

Prepared by Harth · Topic-specific calculated asset and fresh SERP brief passed editorial screening; page remains noindex pending the independent content, evidence, similarity and link gates · Published 2026-08-26 · Updated 2026-09-02.

What must be verified for Waterford?

Waterford is represented here at approximately 52.2583, -7.1119 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.

How should daylight and building orientation be established?

  1. Fix the surveyed site and local time basis.
  2. Select an authoritative weather source or a named solar-position algorithm.
  3. Record period, percentile or scenario and units.
  4. Test sensitivity to elevation, exposure, urban form and horizon.
  5. Save the source file, retrieval date and checker in the model record.
InputProject-specific evidenceQA question
Sitesurveyed coordinates, elevation and horizonDoes the point represent the building?
Weather/solar methodnamed dataset, algorithm, period and time basisAre station, time zone and units explicit?
Design scenariocurrent and future scenario agreed by the teamIs an average being mistaken for an extreme?
Complianceadopted local document and editionWas applicability confirmed with the authority?

What are the limits of this worksheet?

This daylight-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Waterford site remain authoritative.

Waterford monthly daylight-orientation ledger

Representative dateGeometric daylightSolar sunriseSolar sunsetSunrise hour angleNoon bearingChange from prior month
21 January8.230 h07.8916.1161.72°180.0°+0.774 h
21 February10.019 h06.9917.0175.14°180.0°+1.789 h
21 March11.930 h06.0317.9789.48°180.0°+1.912 h
21 April14.047 h04.9819.02105.35°180.0°+2.116 h
21 May15.770 h04.1119.89118.28°180.0°+1.724 h
21 June16.544 h03.7320.27124.08°180.0°+0.774 h
21 July15.838 h04.0819.92118.78°180.0°-0.706 h
21 August14.079 h04.9619.04105.59°180.0°-1.759 h
21 September11.965 h06.0217.9889.74°180.0°-2.114 h
21 October9.921 h07.0416.9674.41°180.0°-2.044 h
21 November8.162 h07.9216.0861.22°180.0°-1.759 h
21 December7.456 h08.2715.7355.92°180.0°-0.706 h

Orientation checks prompted by the Waterford ledger

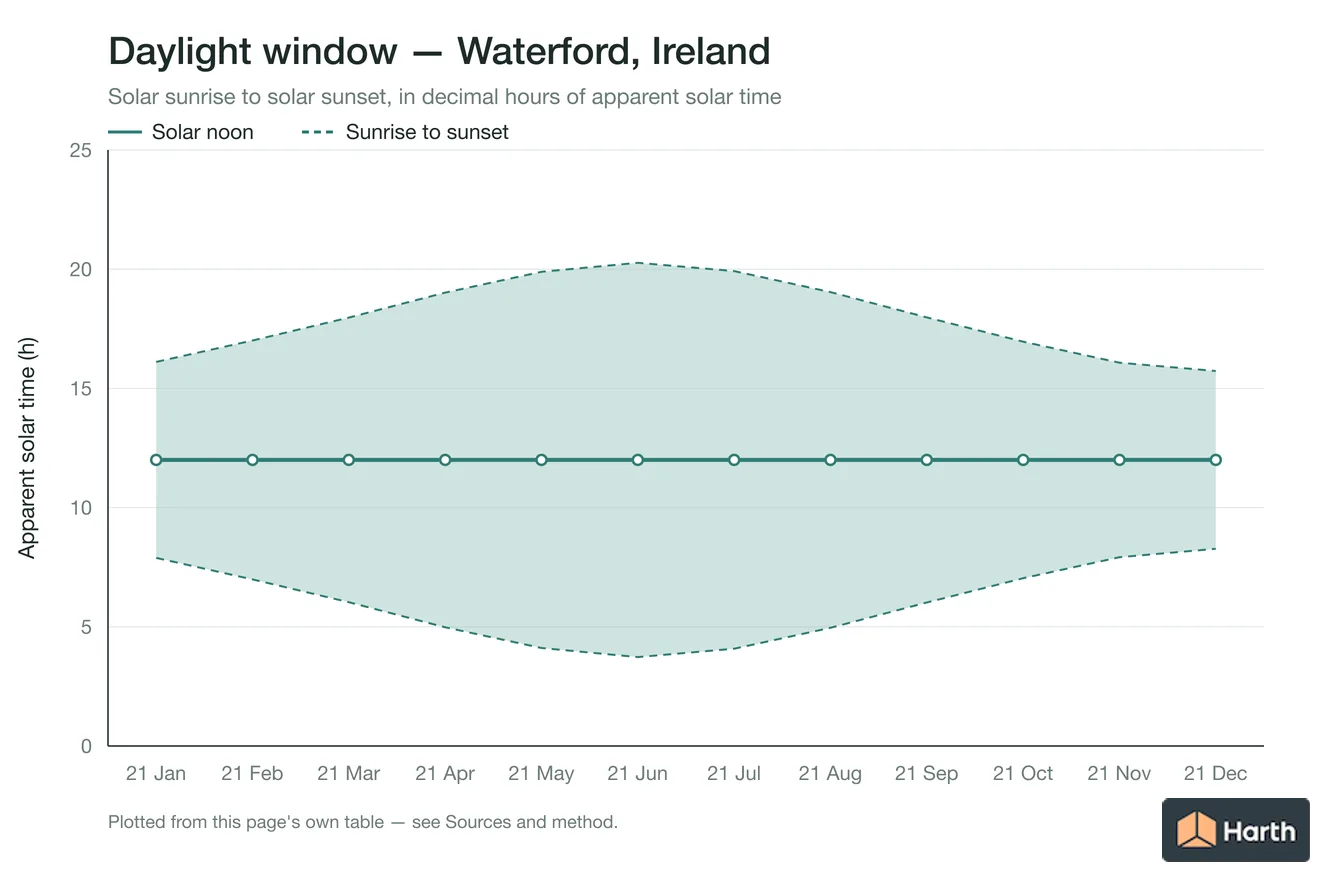

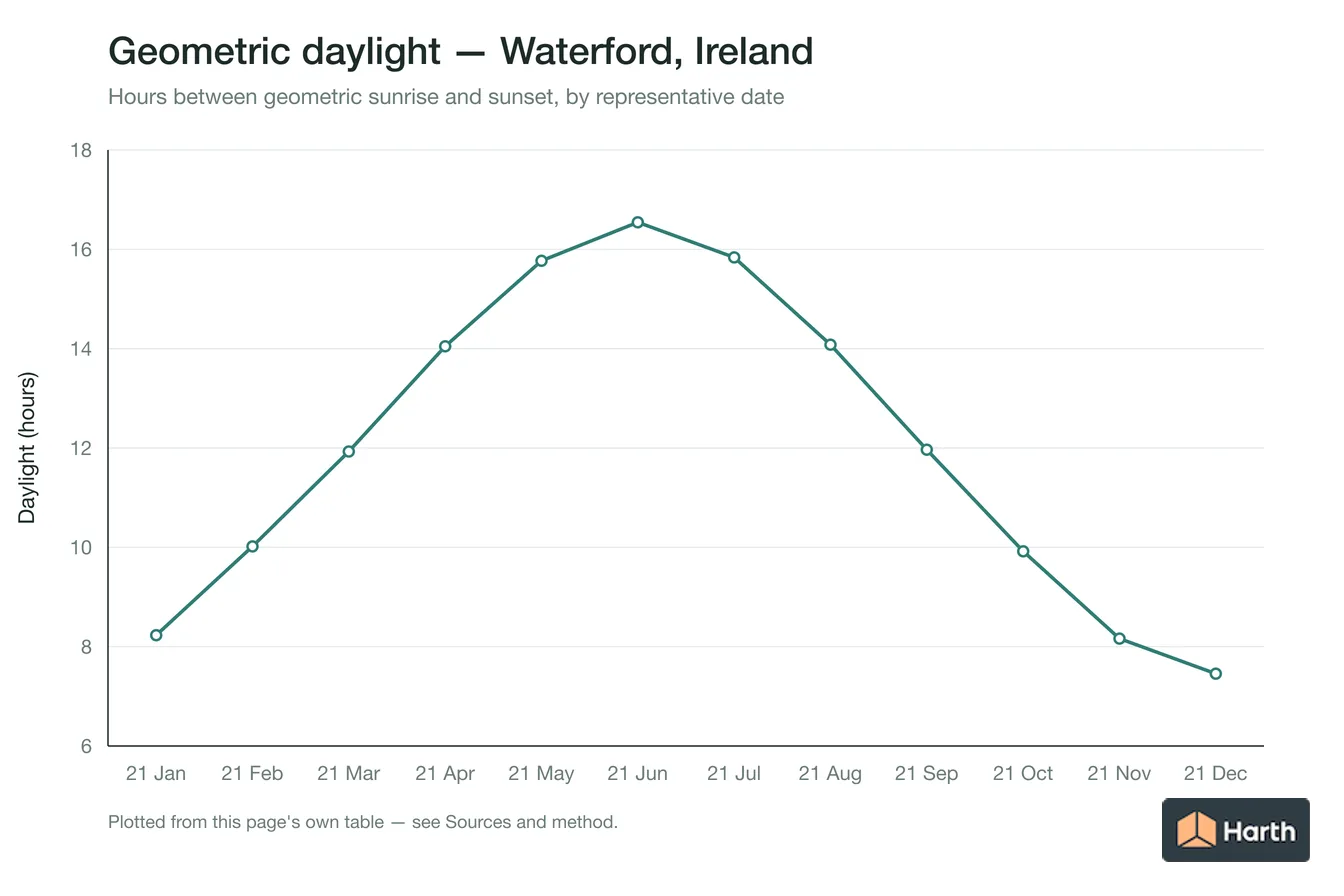

The representative daylight span runs from 7.456 hours on 21 December to 16.544 hours on 21 June. Solar sunrise and sunset are expressed in apparent solar time, not a time-zone clock. The noon-bearing column is a true-north azimuth screen and becomes unstable when the sun passes close to zenith.

For Waterford at 52.2583°, -7.1119°, test each occupied facade against the actual horizon, adjacent buildings, glazing, room depth and target illuminance. This ledger describes geometric availability only; it does not estimate irradiance, daylight autonomy, glare or energy. Refine project-date positions with the NREL SPA.

Where can you explore related guidance?

Sources and method

Location data from the GeoNames IE dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 2960992). Regulatory starting point: Department of Housing, Local Government and Heritage and the local building-control authority. Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: NOAA Solar Calculation Details; the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained. Project-date refinement reference: NREL Solar Position Algorithm.

Source links

Frequently asked questions

What does the daylight and building orientation record for Waterford establish?

The daylight and building orientation record for Waterford establishes a reproducible discovery point at 52.2583, -7.1119 (GeoNames ID 2960992, administrative area M) and a Ireland source path. It does not establish a final project value, approval or parcel decision.

What must be replaced before using this daylight and building orientation workflow for a project in Waterford?

For the daylight and building orientation record in Waterford, replace the 52.2583, -7.1119 city reference with the surveyed site or parcel, identify the competent local authority, and verify the current documents under Building Regulations and Technical Guidance Documents. Record the edition, retrieval date, units, assumptions and named checker before relying on the result.
