Sun Path: Muar, Malaysia

Direct answer

For Muar at 2.0442, 102.5689, the declination-only solar-noon altitude is approximately 68.6° at the June solstice, 88.0° at an equinox and 64.5° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 1732869 in administrative area 01, at 2.0442, 102.5689; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 68.6° at the June solstice, 88.0° at an equinox and 64.5° at the December solstice. Representative 21st-day geometry ranges from about 11.9 hours in December to 12.1 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this sun path record.

Prepared by Harth · Prepared from the cited location and country sources; local project inputs remain unreviewed · Published 2026-08-26 · Updated 2026-08-31.

What must be verified for Muar?

Muar is represented here at approximately 2.0442, 102.5689 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.

How should sun path be established?

1. Fix the surveyed site and local time basis.
2. Select an authoritative weather source or a named solar-position algorithm.
3. Record period, percentile or scenario and units.
4. Test sensitivity to elevation, exposure, urban form and horizon.
5. Save the source file, retrieval date and checker in the model record.

What are the limits of this worksheet?

This sun-path-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Muar site remain authoritative.

Which related searches does this primary location record cover?

This primary route consolidates the location evidence needed for Sun Path, Solar Altitude & Azimuth, Solar Shading Design, Daylight & Orientation. A narrower route should be released only when it adds a materially different official source, calculation, process, threshold or worked example.

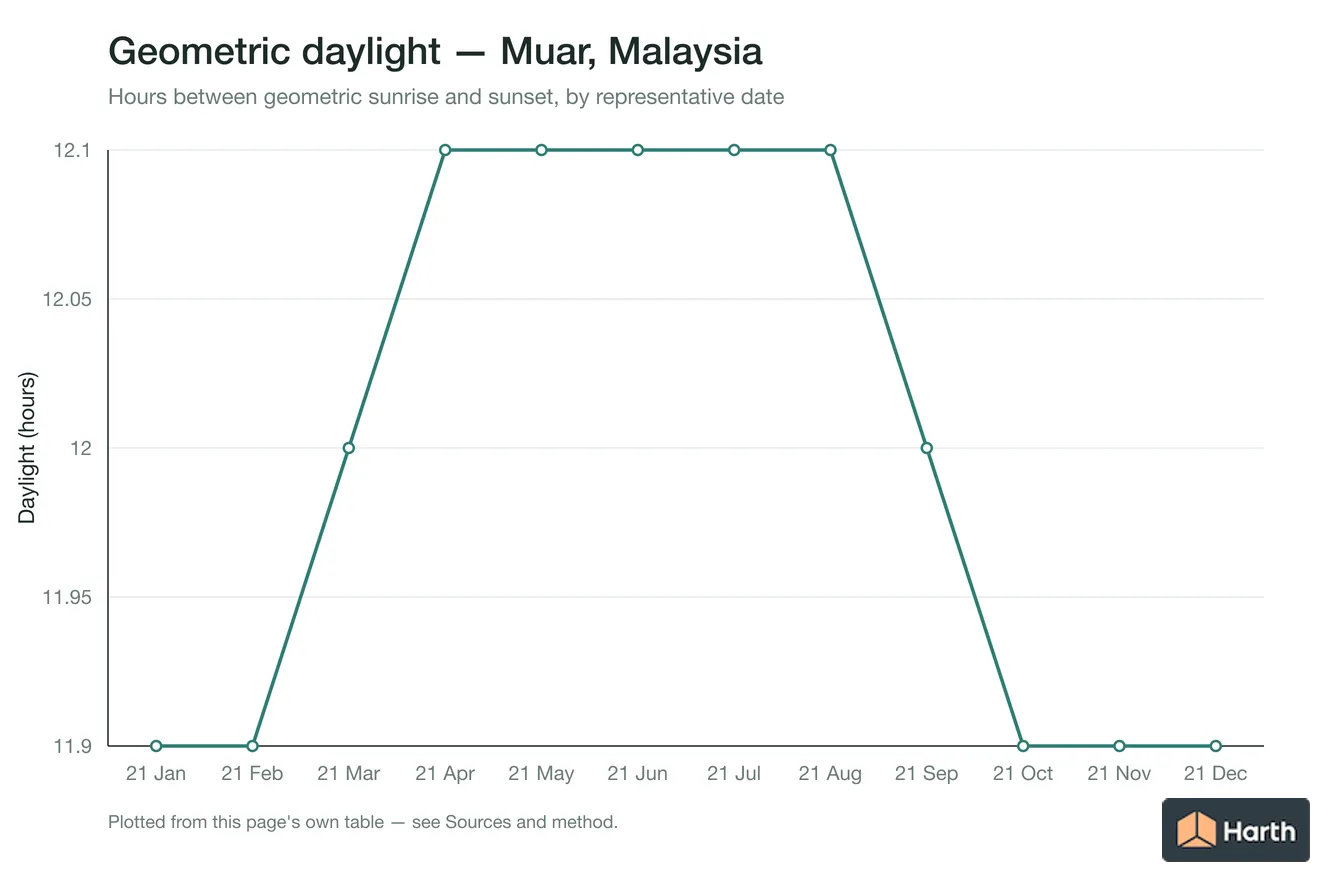

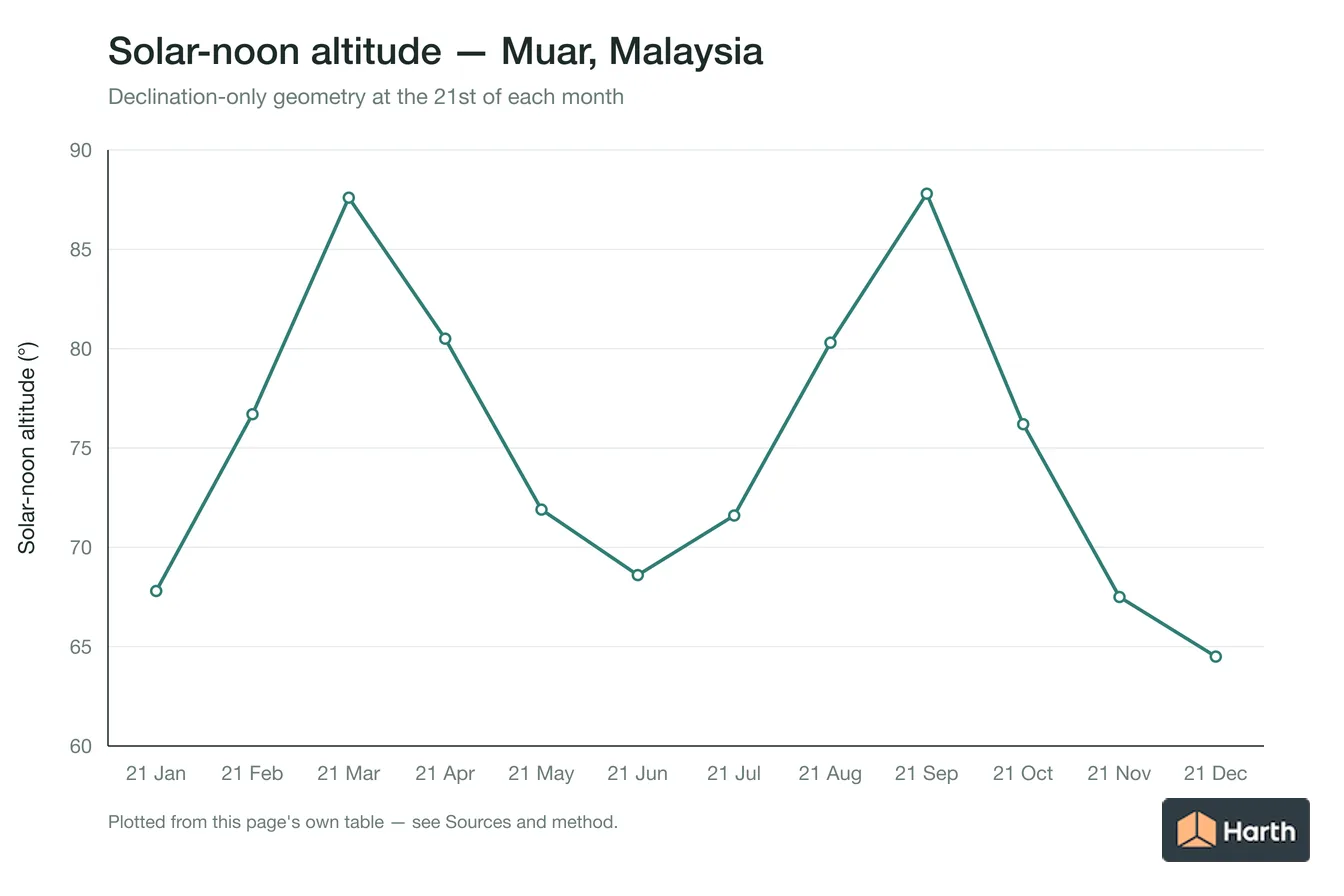

Muar monthly solar geometry check for sun path

Month-by-month geometry interpretation

• 21 January: approximate solar-noon altitude 67.8° (zenith angle 22.2°) and 11.9 hours of geometric daylight. That is 0.0 hours longer than the preceding representative date in this annual sequence.
• 21 February: approximate solar-noon altitude 76.7° (zenith angle 13.3°) and 11.9 hours of geometric daylight. That is 0.0 hours longer than the preceding representative date in this annual sequence.
• 21 March: approximate solar-noon altitude 87.6° (zenith angle 2.4°) and 12.0 hours of geometric daylight. That is 0.1 hours longer than the preceding representative date in this annual sequence.
• 21 April: approximate solar-noon altitude 80.5° (zenith angle 9.5°) and 12.1 hours of geometric daylight. That is 0.1 hours longer than the preceding representative date in this annual sequence.
• 21 May: approximate solar-noon altitude 71.9° (zenith angle 18.1°) and 12.1 hours of geometric daylight. That is 0.0 hours longer than the preceding representative date in this annual sequence.
• 21 June: approximate solar-noon altitude 68.6° (zenith angle 21.4°) and 12.1 hours of geometric daylight. That is 0.0 hours longer than the preceding representative date in this annual sequence.
• 21 July: approximate solar-noon altitude 71.6° (zenith angle 18.4°) and 12.1 hours of geometric daylight. That is 0.0 hours shorter than the preceding representative date in this annual sequence.
• 21 August: approximate solar-noon altitude 80.3° (zenith angle 9.7°) and 12.1 hours of geometric daylight. That is 0.0 hours shorter than the preceding representative date in this annual sequence.
• 21 September: approximate solar-noon altitude 87.8° (zenith angle 2.2°) and 12.0 hours of geometric daylight. That is 0.1 hours shorter than the preceding representative date in this annual sequence.
• 21 October: approximate solar-noon altitude 76.2° (zenith angle 13.8°) and 11.9 hours of geometric daylight. That is 0.1 hours shorter than the preceding representative date in this annual sequence.
• 21 November: approximate solar-noon altitude 67.5° (zenith angle 22.5°) and 11.9 hours of geometric daylight. That is 0.0 hours shorter than the preceding representative date in this annual sequence.
• 21 December: approximate solar-noon altitude 64.5° (zenith angle 25.5°) and 11.9 hours of geometric daylight. That is 0.0 hours shorter than the preceding representative date in this annual sequence.

Harth calculation for latitude 2.0442°: Cooper declination approximation, 90° - |latitude - declination| at solar noon, and centre-to-centre sunrise hour angle. See NOAA's solar calculation details for fuller method context. This screening table excludes equation-of-time/civil-time conversion, atmospheric refraction, terrain, facade azimuth and obstructions; it is not an hourly shading result.

Where can you explore related guidance?

• Explore all solar data guidance
• Sun Path: Malacca, Malaysia
• Sun Path: Seremban, Malaysia
• Sun Path: Kajang, Malaysia
• Sun Path: Iskandar Puteri, Malaysia

Sources and method

Location data from the GeoNames MY dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 1732869). Regulatory starting point: the applicable state and local authority. Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: NOAA Solar Calculation Details; the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained.

Source links

• download.geonames.org

• jkt.kpkt.gov.my

• gml.noaa.gov
