Sun Path: Ras Al Khaimah, UAE

Direct answer

For Ras Al Khaimah at 25.7895, 55.9432, the declination-only solar-noon altitude is approximately 87.6° at the June solstice, 64.2° at an equinox and 40.8° at the December solstice. Refine these geometry checks with the project date, civil time, facade azimuth, terrain and local horizon. The reproducible location record is GeoNames ID 291074 in administrative area 05, at 25.7895, 55.9432; replace it with the surveyed parcel point before relying on the result. As a transparent geometry check, declination-only solar-noon altitude is about 87.6° at the June solstice, 64.2° at an equinox and 40.8° at the December solstice. Representative 21st-day geometry ranges from about 10.4 hours in December to 13.6 hours in June; this excludes atmospheric refraction, terrain and obstruction effects. The cited national authority is a discovery starting point; current local documents and a named qualified reviewer control project use of this sun path record.

Prepared by Harth · Prepared from the cited location and country sources; local project inputs remain unreviewed · Published 2026-08-26 · Updated 2026-08-31.

What must be verified for Ras Al Khaimah?

Ras Al Khaimah is represented here at approximately 25.7895, 55.9432 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.

How should sun path be established?

1. Fix the surveyed site and local time basis.
2. Select an authoritative weather source or a named solar-position algorithm.
3. Record period, percentile or scenario and units.
4. Test sensitivity to elevation, exposure, urban form and horizon.
5. Save the source file, retrieval date and checker in the model record.

What are the limits of this worksheet?

This sun-path-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Ras Al Khaimah site remain authoritative.

Which related searches does this primary location record cover?

This primary route consolidates the location evidence needed for Sun Path, Solar Altitude & Azimuth, Solar Shading Design, Daylight & Orientation. A narrower route should be released only when it adds a materially different official source, calculation, process, threshold or worked example.

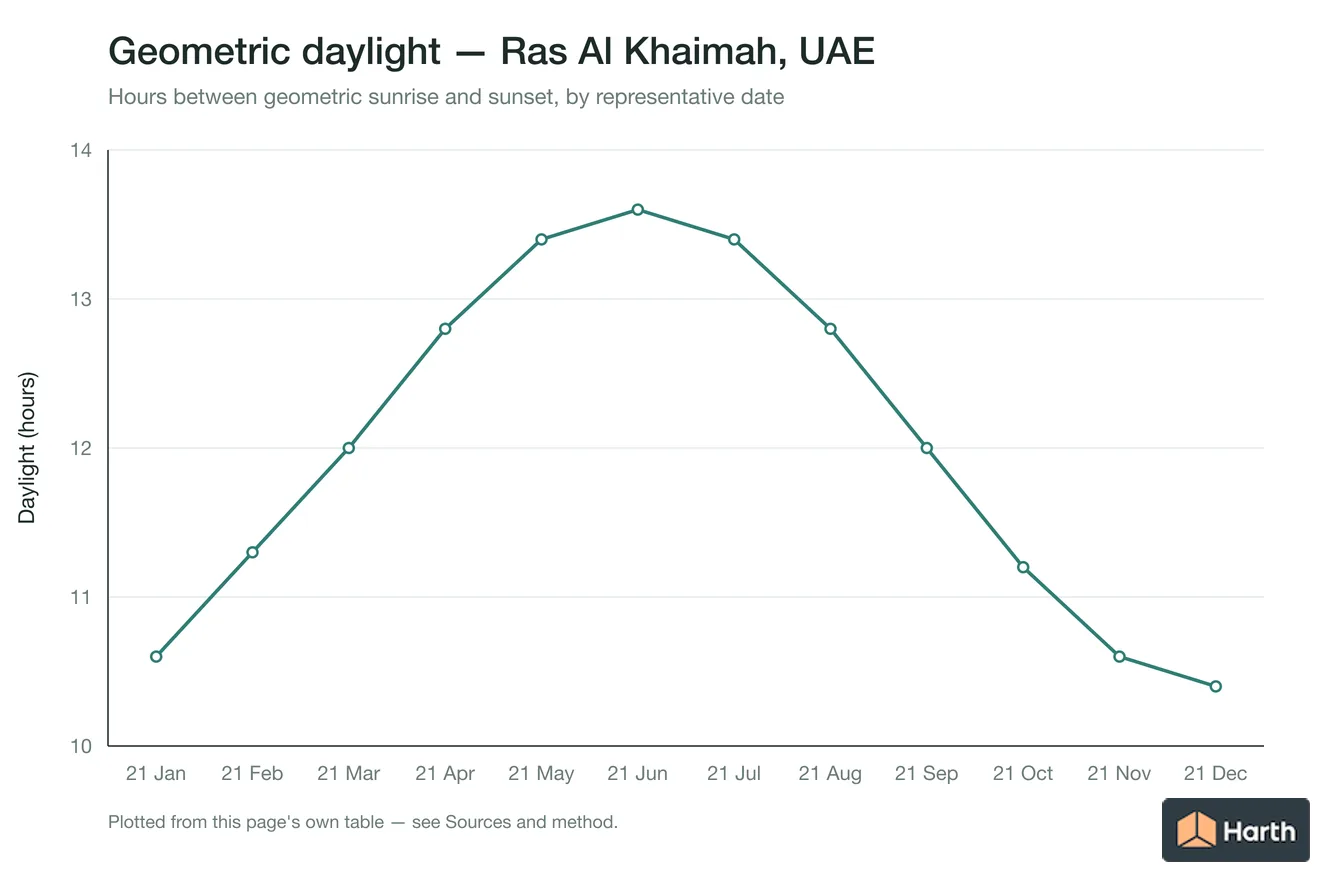

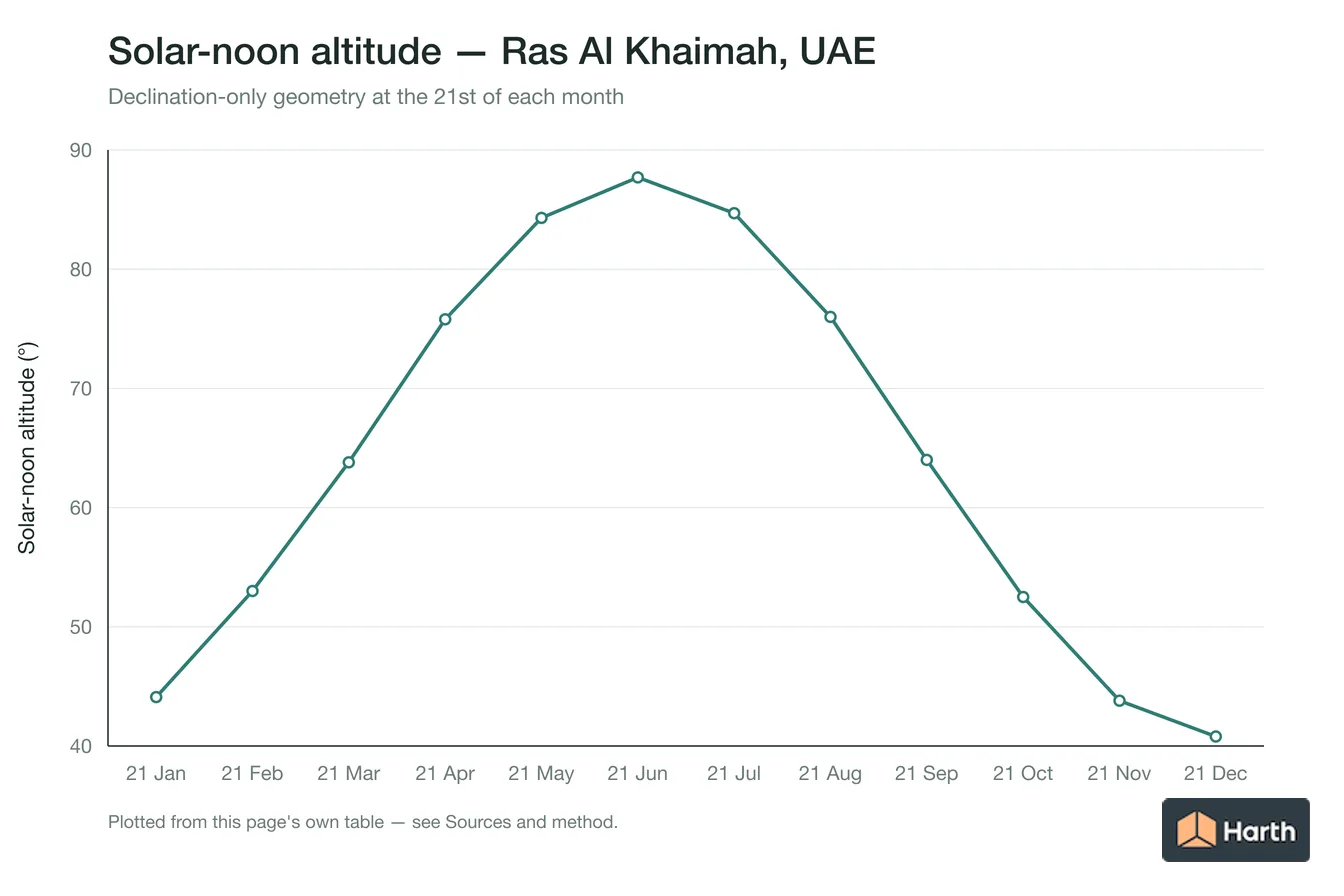

Ras Al Khaimah monthly solar geometry check for sun path

Month-by-month geometry interpretation

• 21 January: approximate solar-noon altitude 44.1° (zenith angle 45.9°) and 10.6 hours of geometric daylight. That is 0.3 hours longer than the preceding representative date in this annual sequence.
• 21 February: approximate solar-noon altitude 53.0° (zenith angle 37.0°) and 11.3 hours of geometric daylight. That is 0.6 hours longer than the preceding representative date in this annual sequence.
• 21 March: approximate solar-noon altitude 63.8° (zenith angle 26.2°) and 12.0 hours of geometric daylight. That is 0.7 hours longer than the preceding representative date in this annual sequence.
• 21 April: approximate solar-noon altitude 75.8° (zenith angle 14.2°) and 12.8 hours of geometric daylight. That is 0.8 hours longer than the preceding representative date in this annual sequence.
• 21 May: approximate solar-noon altitude 84.3° (zenith angle 5.7°) and 13.4 hours of geometric daylight. That is 0.6 hours longer than the preceding representative date in this annual sequence.
• 21 June: approximate solar-noon altitude 87.7° (zenith angle 2.3°) and 13.6 hours of geometric daylight. That is 0.3 hours longer than the preceding representative date in this annual sequence.
• 21 July: approximate solar-noon altitude 84.7° (zenith angle 5.3°) and 13.4 hours of geometric daylight. That is 0.2 hours shorter than the preceding representative date in this annual sequence.
• 21 August: approximate solar-noon altitude 76.0° (zenith angle 14.0°) and 12.8 hours of geometric daylight. That is 0.6 hours shorter than the preceding representative date in this annual sequence.
• 21 September: approximate solar-noon altitude 64.0° (zenith angle 26.0°) and 12.0 hours of geometric daylight. That is 0.8 hours shorter than the preceding representative date in this annual sequence.
• 21 October: approximate solar-noon altitude 52.5° (zenith angle 37.5°) and 11.2 hours of geometric daylight. That is 0.8 hours shorter than the preceding representative date in this annual sequence.
• 21 November: approximate solar-noon altitude 43.8° (zenith angle 46.2°) and 10.6 hours of geometric daylight. That is 0.6 hours shorter than the preceding representative date in this annual sequence.
• 21 December: approximate solar-noon altitude 40.8° (zenith angle 49.2°) and 10.4 hours of geometric daylight. That is 0.2 hours shorter than the preceding representative date in this annual sequence.

Harth calculation for latitude 25.7895°: Cooper declination approximation, 90° - |latitude - declination| at solar noon, and centre-to-centre sunrise hour angle. See NOAA's solar calculation details for fuller method context. This screening table excludes equation-of-time/civil-time conversion, atmospheric refraction, terrain, facade azimuth and obstructions; it is not an hourly shading result.

Where can you explore related guidance?

• Explore all solar data guidance
• Sun Path: Dibba Al-Fujairah, UAE
• Sun Path: Al Sajaah, UAE
• Sun Path: Ajman, UAE
• Sun Path: Al Qusais 1, UAE

Sources and method

Location data from the GeoNames AE dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 291074). Regulatory starting point: UAE Government overview of local building authorities. Figures are illustrative — verify against the current locally adopted edition for the site. Solar-method context: NOAA Solar Calculation Details; the Harth monthly table uses a simpler declination and geometric-daylight approximation whose stated limitations must be retained.
