Climate Design Data: Manchester, UK

How to research climate design data for a specific site in Manchester — the controlling authority, source documents, and checks to run before you rely on a number.

Last updated August 31, 2026 · Location data from the [GeoNames GB dump](https://download.geonames.org/export/dump/GB.zip) (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 2643123). Regulatory starting point: [UK and devolved building-control authorities](https://www.gov.uk/government/collections/approved-documents). Figures are illustrative — verify against the current locally adopted edition for the site. Climate screening data from the [NASA POWER Climatology API documentation](https://power.larc.nasa.gov/docs/services/api/temporal/climatology/) and [exact point response](https://power.larc.nasa.gov/api/temporal/climatology/point?parameters=T2M%2CT2M_MAX%2CT2M_MIN%2CRH2M%2CPRECTOTCORR%2CWS10M&community=SB&longitude=-2.23743&latitude=53.48095&format=JSON), retrieved 2026-08-31; source period: 20-year Meteorological and Solar Monthly & Annual Climatologies (January 2001 - December 2020). NASA POWER values are gridded screening statistics, not code design conditions or guaranteed local observations.

Direct answer

NASA POWER's 2001–2020 climatology at the Manchester reference point reports an annual mean 2 m temperature of 9.1 °C and relative humidity of 88.6%. The highest monthly maximum is 28.0 °C in July, while the lowest monthly minimum is -7.6 °C in December; these are screening statistics, not code design temperatures. The point response uses LST and the 20-year Meteorological and Solar Monthly & Annual Climatologies (January 2001 - December 2020); its annual corrected precipitation is 2.74 mm/day and annual 10 m wind speed is 5.07 m/s. For climate design data, use the 28.0 °C and -7.6 °C monthly extrema to screen seasonal exposure, then obtain the adopted percentile design conditions. NASA POWER is gridded climatology: verify elevation, microclimate, urban exposure, station or weather-file suitability, current code edition and the authority's required source before design use.

Prepared by Harth · Harth transformed the cited NASA POWER climatology into this screening table; project design conditions and local applicability remain unreviewed · Published 2026-08-26 · Updated 2026-08-31.

What must be verified for Manchester?

Manchester is represented here at approximately 53.4809, -2.2374 for discovery and workflow planning. A project address, parcel, elevation, exposure, authority, and submission date must replace that city-centre reference before design use.

How should climate design data be established?

  1. Fix the surveyed site and local time basis.
  2. Select an authoritative weather source or a named solar-position algorithm.
  3. Record period, percentile or scenario and units.
  4. Test sensitivity to elevation, exposure, urban form and horizon.
  5. Save the source file, retrieval date and checker in the model record.
InputProject-specific evidenceQA question
Sitesurveyed coordinates, elevation and horizonDoes the point represent the building?
Weather/solar methodnamed dataset, algorithm, period and time basisAre station, time zone and units explicit?
Design scenariocurrent and future scenario agreed by the teamIs an average being mistaken for an extreme?
Complianceadopted local document and editionWas applicability confirmed with the authority?

What are the limits of this worksheet?

This climate-design-workflow page is a project-starting worksheet, not a design value or approval. The controlling authority and qualified professionals for the Manchester site remain authoritative.

This primary route consolidates the location evidence needed for Climate Design Data, Weather File Guide, Overheating Weather Data, Building Climate Checklist. A narrower route should be released only when it adds a materially different official source, calculation, process, threshold or worked example.

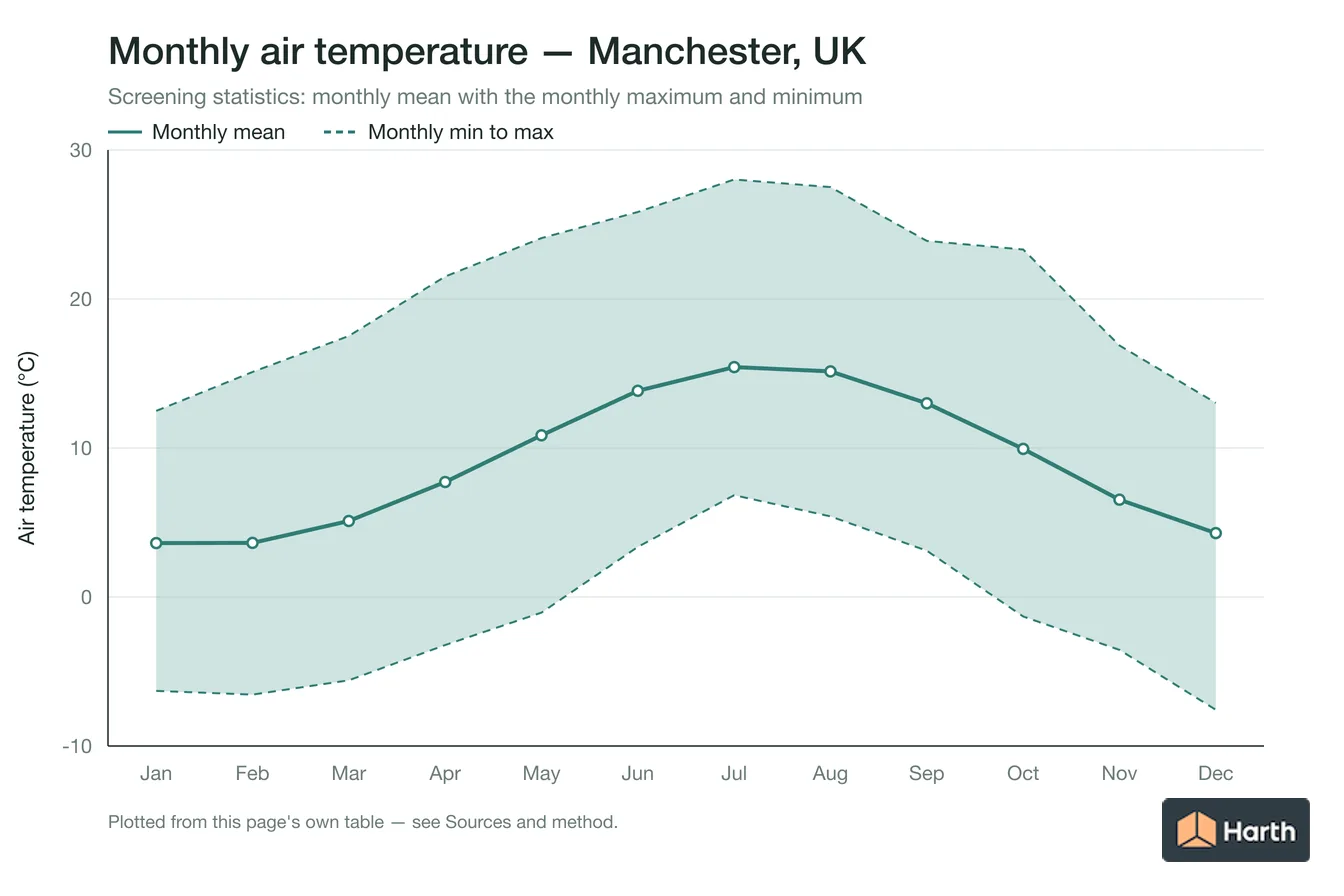

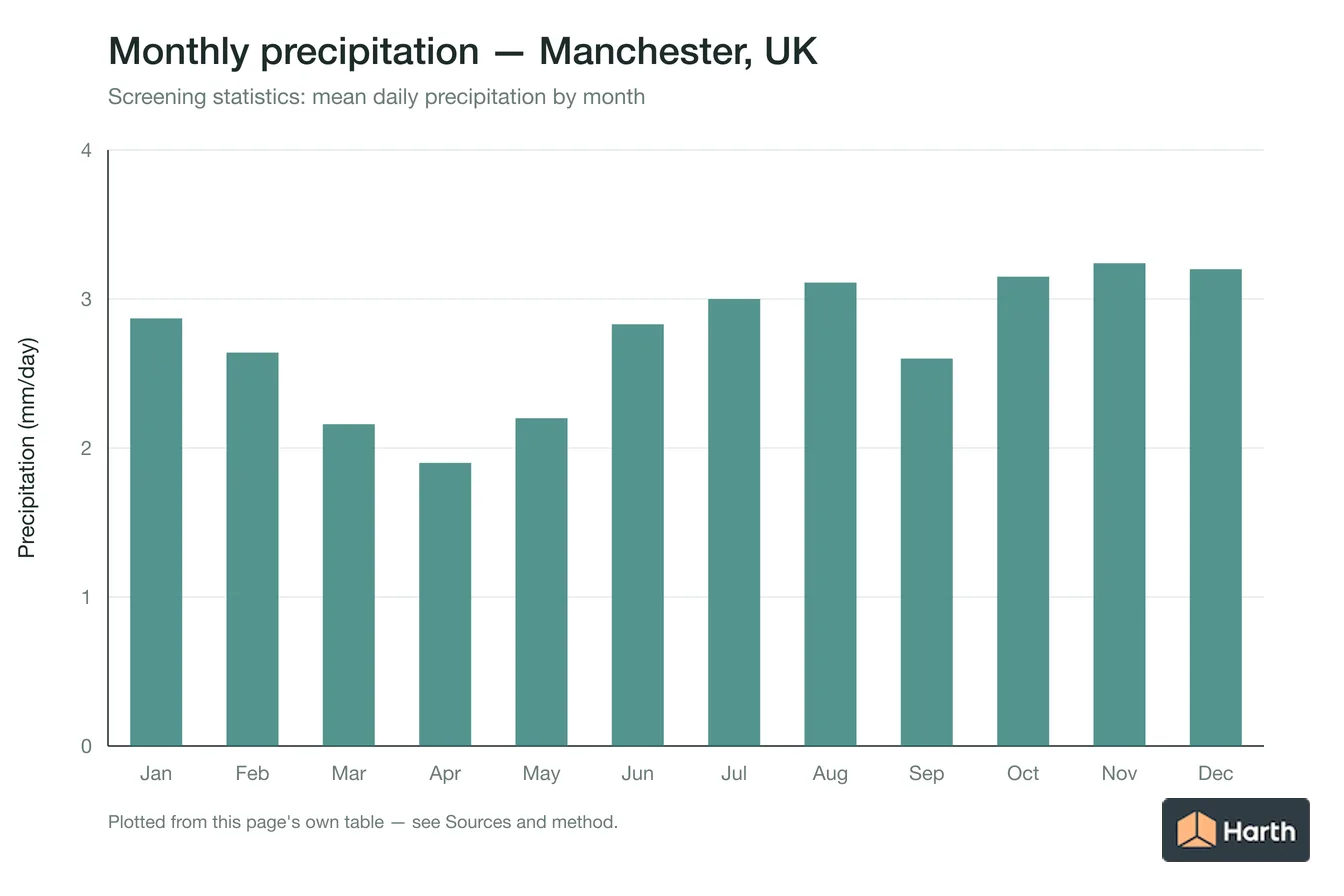

Manchester NASA POWER monthly climate screening table

MonthMean °CMonthly max °CMonthly min °CRH %Precipitation mm/dayWind at 10 m m/s
January3.6212.49-6.3094.602.875.97
February3.6315.10-6.5592.822.645.72
March5.1017.52-5.5989.352.165.38
April7.7221.51-3.2285.481.904.82
May10.8524.09-1.0582.592.204.80
June13.8425.843.3682.752.834.41
July15.4328.026.8383.603.004.34
August15.1427.515.4185.263.114.50
September13.0023.903.1187.002.604.69
October9.9423.32-1.3190.593.155.28
November6.5316.88-3.5593.773.245.45
December4.2913.03-7.5795.063.205.57

Manchester ranked monthly climate fingerprint

  • Manchester mean temperature, highest to lowest: July 15.43 °C, August 15.14 °C, June 13.84 °C, September 13.00 °C, May 10.85 °C, October 9.94 °C, April 7.72 °C, November 6.53 °C, March 5.10 °C, December 4.29 °C, February 3.63 °C, January 3.62 °C.
  • Manchester monthly maximum, highest to lowest: July 28.02 °C, August 27.51 °C, June 25.84 °C, May 24.09 °C, September 23.90 °C, October 23.32 °C, April 21.51 °C, March 17.52 °C, November 16.88 °C, February 15.10 °C, December 13.03 °C, January 12.49 °C.
  • Manchester monthly minimum, highest to lowest: July 6.83 °C, August 5.41 °C, June 3.36 °C, September 3.11 °C, May -1.05 °C, October -1.31 °C, April -3.22 °C, November -3.55 °C, March -5.59 °C, January -6.30 °C, February -6.55 °C, December -7.57 °C.
  • Manchester relative humidity, highest to lowest: December 95.06 %, January 94.60 %, November 93.77 %, February 92.82 %, October 90.59 %, March 89.35 %, September 87.00 %, April 85.48 %, August 85.26 %, July 83.60 %, June 82.75 %, May 82.59 %.
  • Manchester corrected precipitation, highest to lowest: November 3.24 mm/day, December 3.20 mm/day, October 3.15 mm/day, August 3.11 mm/day, July 3.00 mm/day, January 2.87 mm/day, June 2.83 mm/day, February 2.64 mm/day, September 2.60 mm/day, May 2.20 mm/day, March 2.16 mm/day, April 1.90 mm/day.
  • Manchester 10 m wind speed, highest to lowest: January 5.97 m/s, February 5.72 m/s, December 5.57 m/s, November 5.45 m/s, March 5.38 m/s, October 5.28 m/s, April 4.82 m/s, May 4.80 m/s, September 4.69 m/s, August 4.50 m/s, June 4.41 m/s, July 4.34 m/s.

Manchester month-to-month screening ledger

  • Manchester January: mean 3.62 °C, change from December -0.67 °C; max–min span 18.79 °C; humidity 94.60%, change -0.46 points; precipitation 2.87 mm/day; wind 5.97 m/s.
  • Manchester February: mean 3.63 °C, change from January +0.01 °C; max–min span 21.65 °C; humidity 92.82%, change -1.78 points; precipitation 2.64 mm/day; wind 5.72 m/s.
  • Manchester March: mean 5.10 °C, change from February +1.47 °C; max–min span 23.11 °C; humidity 89.35%, change -3.47 points; precipitation 2.16 mm/day; wind 5.38 m/s.
  • Manchester April: mean 7.72 °C, change from March +2.62 °C; max–min span 24.73 °C; humidity 85.48%, change -3.87 points; precipitation 1.90 mm/day; wind 4.82 m/s.
  • Manchester May: mean 10.85 °C, change from April +3.13 °C; max–min span 25.14 °C; humidity 82.59%, change -2.89 points; precipitation 2.20 mm/day; wind 4.80 m/s.
  • Manchester June: mean 13.84 °C, change from May +2.99 °C; max–min span 22.48 °C; humidity 82.75%, change +0.16 points; precipitation 2.83 mm/day; wind 4.41 m/s.
  • Manchester July: mean 15.43 °C, change from June +1.59 °C; max–min span 21.19 °C; humidity 83.60%, change +0.85 points; precipitation 3.00 mm/day; wind 4.34 m/s.
  • Manchester August: mean 15.14 °C, change from July -0.29 °C; max–min span 22.10 °C; humidity 85.26%, change +1.66 points; precipitation 3.11 mm/day; wind 4.50 m/s.
  • Manchester September: mean 13.00 °C, change from August -2.14 °C; max–min span 20.79 °C; humidity 87.00%, change +1.74 points; precipitation 2.60 mm/day; wind 4.69 m/s.
  • Manchester October: mean 9.94 °C, change from September -3.06 °C; max–min span 24.63 °C; humidity 90.59%, change +3.59 points; precipitation 3.15 mm/day; wind 5.28 m/s.
  • Manchester November: mean 6.53 °C, change from October -3.41 °C; max–min span 20.43 °C; humidity 93.77%, change +3.18 points; precipitation 3.24 mm/day; wind 5.45 m/s.
  • Manchester December: mean 4.29 °C, change from November -2.24 °C; max–min span 20.60 °C; humidity 95.06%, change +1.29 points; precipitation 3.20 mm/day; wind 5.57 m/s.

Harth retrieved this point climatology from NASA POWER API v2.9.7 for location record 2643123. The ranked fingerprint and transition ledger preserve Manchester's monthly order and successive changes for source comparison. This is a reproducible screening dataset, not an hourly weather file, forecast, code design condition or substitute for local professional review.

Sources and method

Location data from the GeoNames GB dump (CC BY 4.0, snapshot 2026-08-31, GeoNames ID 2643123). Regulatory starting point: UK and devolved building-control authorities. Figures are illustrative — verify against the current locally adopted edition for the site. Climate screening data from the NASA POWER Climatology API documentation and exact point response, retrieved 2026-08-31; source period: 20-year Meteorological and Solar Monthly & Annual Climatologies (January 2001 - December 2020). NASA POWER values are gridded screening statistics, not code design conditions or guaranteed local observations.

Frequently asked questions

What does NASA POWER climatology show for Manchester?

For the Manchester reference point, the 2001–2020 NASA POWER climatology reports 9.1 °C annual mean temperature, 88.6% relative humidity and 2.74 mm/day corrected precipitation. The monthly maximum peaks at 28.0 °C in July.

Can the Manchester climatology replace project design temperatures or an hourly weather file?

No. The Manchester response is gridded monthly climatology; its lowest monthly minimum of -7.6 °C in December is not a code percentile or observed site extreme. Verify elevation, local exposure, the required weather file or design-condition source and the current adopted code.
