CAD vs. BIM: What's the Real Difference? (2026)
CAD produces drawings — geometry that represents a design; BIM produces a data-rich model from which drawings and data are derived. BIM is a process and a database, not just 3D CAD.
On this page
Last updated October 27, 2026 · Definitions and tool positioning from primary sources, checked 2026-10-27: [ISO 19650-1:2018](https://www.iso.org/standard/68078.html) for the definition of building information modelling and the information management process; Autodesk's [BIM vs. CAD software comparison](https://www.autodesk.com/solutions/revit-vs-autocad) for the positioning of AutoCAD as CAD and Revit as BIM; [Autodesk Revit Help](https://help.autodesk.com/view/RVT/2026/ENU/) for bidirectional associativity and DWG linking; [Autodesk AutoCAD Help](https://help.autodesk.com/view/ACD/2026/ENU/) for DWG drafting; and the buildingSMART [IFC](https://technical.buildingsmart.org/standards/ifc/) and [BCF](https://technical.buildingsmart.org/standards/bcf/) standards for open exchange. The workflow matrix describes documented tool behaviour, not a timed test; check features against the current release of the software you use.
Direct answer
In CAD software such as AutoCAD, a wall is two parallel lines on a layer; the drawing represents the building, but the software does not know those lines are a wall. Plans, elevations, sections and schedules are separate drawings that the drafter keeps consistent by hand. In BIM software such as Revit, Archicad or Vectorworks Architect, the wall is an object with a type, materials, dimensions and a host level, and every view and schedule is generated from the same model, so a change made once appears everywhere. ISO 19650-1:2018 defines BIM as the use of a shared digital representation of a built asset to facilitate design, construction and operation processes, which is why BIM also covers information requirements, a common data environment and open exchange through IFC. Autodesk itself describes AutoCAD as CAD and Revit as BIM. CAD remains useful for 2D details, site and survey drawings and DWG deliverables; most practices use both.
Content and cited inputs reviewed by Harth team · Published 2026-08-18 · Updated 2026-10-27.
What does this term mean?
CAD vs. BIM: CAD produces drawings — geometry that represents a design; BIM produces a data-rich model from which drawings and data are derived. BIM is a process and a database, not just 3D CAD.
What are the key takeaways?
- CAD draws a representation of the building; BIM models the building and draws from the model.
- Revit, Archicad and Vectorworks Architect are BIM tools; AutoCAD is CAD, even with its Architecture toolset.
- BIM is also a process defined by ISO 19650, not only a type of software.
- Most practices use BIM for coordinated documentation and keep CAD for details and DWG exchange.
What is the difference between CAD and BIM?

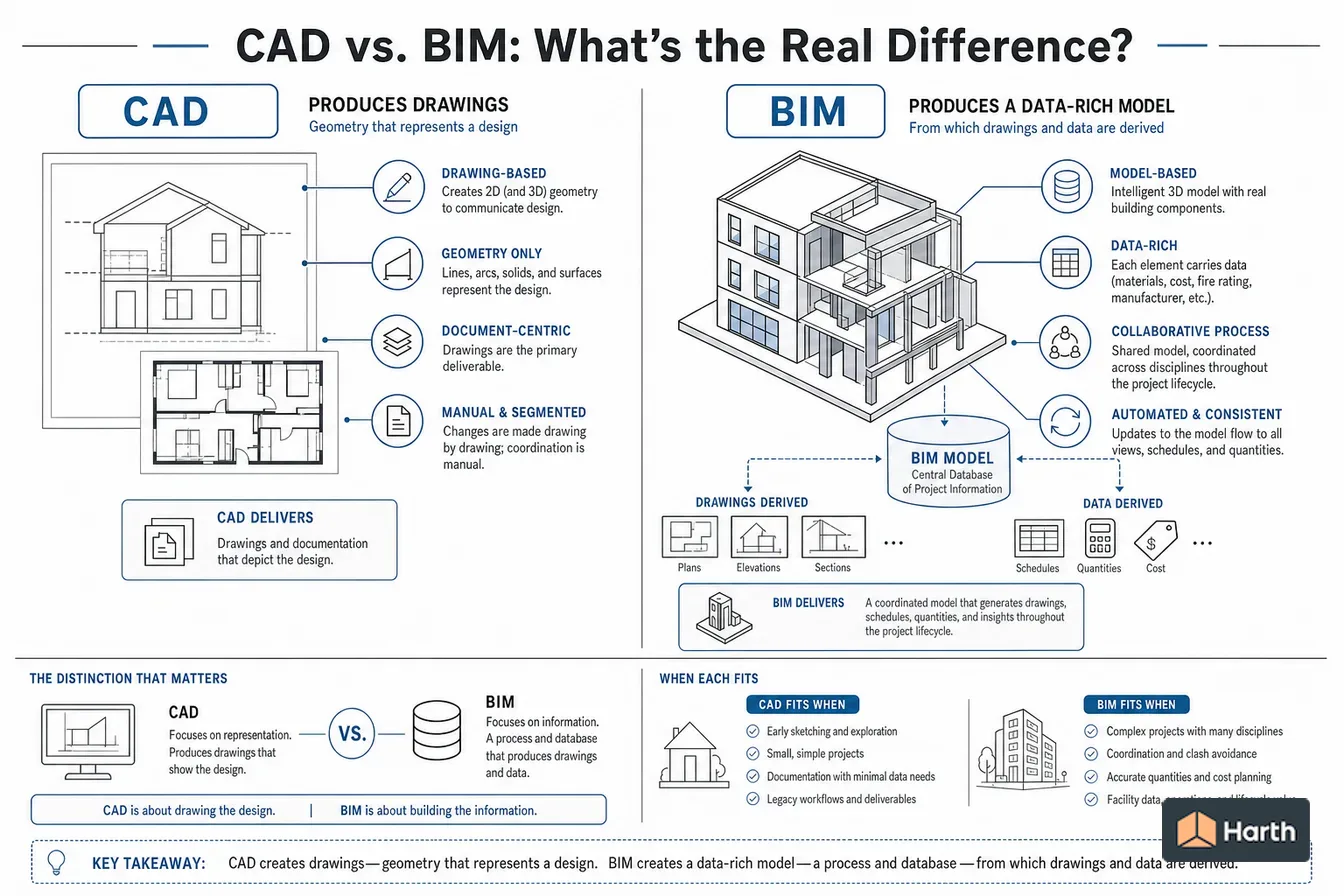

CAD (computer-aided design) replaced the drawing board: the software draws precise lines, arcs, hatches, text and, in 3D, surfaces and solids. BIM (Building Information Modeling) replaces the set of drawings with a model of the building made from objects that know what they are, from which the drawings are produced.
| Dimension | CAD | BIM |
|---|---|---|
| What you create | Drawings: geometry on layers | A model: walls, floors, doors, spaces and their properties |
| What a wall is | Two lines, possibly on a wall layer | An object with a type, materials, thickness, height and host level |
| Plans, sections, elevations | Separate drawings drafted individually | Views generated from the same model |
| Schedules and quantities | Counted or typed by hand | Generated from the model's elements |
| Making a change | Edit every drawing that shows the element | Edit once; every view and schedule updates |
| Coordination with consultants | Overlay 2D drawings | Combine 3D models and check clashes |
| Typical file formats | DWG, DXF, DGN | RVT, PLN, VWX plus IFC for open exchange |
| Example software | AutoCAD, MicroStation | Revit, Archicad, Vectorworks Architect, Allplan |
The difference is not 2D versus 3D. CAD tools can model in 3D, and BIM tools produce 2D sheets. The difference is information: a BIM element carries data and relationships, so the model behaves like a database of the building, while CAD geometry means only what the drafter's layers and notes say it means.
Is Revit BIM or CAD? Is AutoCAD BIM?
Autodesk, which makes both, is explicit: AutoCAD is CAD software and Revit is software for BIM. AutoCAD is a general drawing tool used across many industries; its Architecture toolset adds wall, door and window objects and other architectural features, but the output is still DWG drawings rather than a coordinated building model. Revit is a design and documentation tool where each element is modeled once and every view is derived from it. Revit's help calls this bidirectional associativity: a change made in any view is reflected in all views and schedules.
Archicad (Graphisoft), Vectorworks Architect and Allplan are also BIM authoring tools. Rhino and SketchUp are 3D modeling tools; they are often used in early design and can feed BIM workflows through plug-ins or exchange, but on their own they are not BIM platforms.
Is SolidWorks CAD or BIM?
SolidWorks is mechanical CAD for product and machine design: parametric parts, assemblies and fabrication drawings. It has no concept of storeys, spaces or building documentation, so it is not BIM. It matters to architects mainly when a manufacturer of curtain walls, stairs or equipment models its products in it and supplies them to the BIM team.
Is BIM better than CAD for architects?
For most building projects BIM does more of the work, but CAD still has a place.
BIM is the better fit when the project has multiple consultants who need to coordinate, the drawing set is large enough that keeping plans, sections and schedules consistent by hand is a risk, the client or contract requires a model or IFC deliverable, quantities and schedules matter, or the building will be operated from the model after handover.
CAD is still the better fit when you need a quick 2D drawing or detail, you are drafting a site plan from a survey supplied in DWG, the deliverable is a DWG for a consultant who does not model, or the project is too small to justify building a model and its templates.
The costs of BIM are real: templates and families to set up, more demanding hardware, training, and the discipline of modeling to an agreed level of information. The return is that coordination problems are found in the model rather than on site, and that late design changes cost a few edits instead of a re-draft.
Can I learn BIM without AutoCAD?
Yes. BIM software does not depend on AutoCAD, and many students learn Revit or Archicad first. What transfers is drawing literacy: line weights, annotation, dimensioning, sheet organisation and how construction drawings are read. Most practitioners still pick up enough AutoCAD to open, clean and exchange DWG files, because survey data and consultant backgrounds often arrive in that format.
Which file formats do CAD and BIM use?
CAD work in architecture mostly travels as DWG, AutoCAD's native format, or DXF, the interchange format Autodesk documents for other software; MicroStation uses DGN. BIM tools store their own native files, such as RVT for Revit, PLN for Archicad and VWX for Vectorworks, and exchange models with other platforms through IFC, the open buildingSMART schema published as ISO 16739-1:2024.
The two worlds connect in both directions, but not symmetrically. A BIM tool can link a DWG survey or consultant background and can export any view as DWG for someone who does not model. Going the other way, a DWG does not turn into a BIM model on import: its lines carry no element information, so walls, doors and slabs have to be modeled, using the drawing as a trace.
What does BIM mean beyond software?
ISO 19650-1:2018 defines building information modelling as the use of a shared digital representation of a built asset to facilitate design, construction and operation processes, forming a reliable basis for decisions. The ISO 19650 series wraps that in a process: the client states information requirements, the team agrees who delivers what, and information is shared through a common data environment. Open standards make it work across software: IFC carries models between tools and BCF carries issues about them. Owning BIM software without that process gives you a better drawing tool; the full benefit comes from the shared model.
One change, two workflows: what has to be updated
The matrix below follows common design changes through a CAD drawing set and a BIM model. It describes the documented behaviour of each kind of tool, so use it to estimate where coordination effort goes on your own projects.
| Design change or task | In a CAD drawing set | In a BIM model | What still needs a human check |
|---|---|---|---|
| Move a door 600 mm along a wall | Edit the plan, any elevation and section that cut the door, the door schedule and enlarged plans separately | Move the door once; plans, elevations, sections and the door schedule update | Clearances, swing conflicts and tags placed by hand |
| Change an exterior wall from masonry to rainscreen | Re-hatch every plan and section, update wall tags, details and specification references | Change the wall type; thickness, layers and tags update in every view | Wall-to-window and wall-to-roof details drawn as 2D detail views |
| Add a floor to the building | Copy plans, redraw elevations and sections, renumber levels | Add a level and copy elements; elevations and sections show the new floor without redrafting | Stair, lift and structural layout on the new level |
| Produce a door or room schedule | Count and type it from the drawings | Generate it from the model's elements and properties | Data entered on each element is correct and complete |
| Take off wall and floor areas | Measure on the drawings or with a separate tool | Read from model schedules | Measurement rules the cost consultant uses |
| Coordinate with the structural engineer | Overlay their DWG on your plans, level by level | Link or federate their model and run a clash check | Clashes that are acceptable by design |
| Issue backgrounds to a consultant who does not model | Send DWG directly | Export views to DWG | Layer mapping and line weights in the export |
| Hand over to the owner | Issue drawings and a separate asset register | Issue the model or IFC with asset data, plus drawings | Owner's information requirements are met |
CAD or BIM: project decision checklist
| Project condition | Points to | Why |
|---|---|---|
| Three or more consultants coordinating geometry | BIM | Federated models make clashes visible before construction |
| Drawing set over a few dozen sheets | BIM | Generated views remove most cross-sheet inconsistencies |
| Client, contract or public owner requires a model or IFC | BIM | The deliverable cannot be produced from drawings alone |
| Frequent design changes expected late | BIM | One edit updates every view and schedule |
| Single 2D drawing, detail or sketch | CAD | Faster with no model or template setup |
| Survey, site or civil background supplied in DWG | CAD, then link into BIM | Native format of the source data |
| Consultant or authority requires DWG submissions | Either, exported to DWG | Both kinds of tool can produce DWG |
| Very small alteration with no consultants | CAD | Model setup may cost more than it saves |
| Building to be operated from its data after handover | BIM | Asset data travels with the model |
Where can you explore related guidance?
- Explore all comparisons guidance
- IFC vs. RVT: Open Exchange vs. Native Revit (2026)
- IFC vs. BCF: Model Data vs. Model Issues (2026)
Sources and method
Definitions and tool positioning from primary sources, checked 2026-10-27: ISO 19650-1:2018 for the definition of building information modelling and the information management process; Autodesk's BIM vs. CAD software comparison for the positioning of AutoCAD as CAD and Revit as BIM; Autodesk Revit Help for bidirectional associativity and DWG linking; Autodesk AutoCAD Help for DWG drafting; and the buildingSMART IFC and BCF standards for open exchange. The workflow matrix describes documented tool behaviour, not a timed test; check features against the current release of the software you use.
Source links
Frequently asked questions
Is Revit BIM or CAD?
Revit is BIM software. Autodesk describes AutoCAD as CAD software and Revit as software for BIM: in Revit you model walls, floors, doors and other building elements, and plans, sections, elevations and schedules are generated from that model. Revit can still link and export DWG files, so it works alongside CAD.
Is SolidWorks CAD or BIM?
SolidWorks is mechanical CAD: parametric 3D modeling of parts and assemblies for product design and manufacturing. It is not a building information modeling platform, because it has no building elements, storeys or architectural documentation workflow. Manufacturers of windows, facade systems or equipment may model products in it and supply them to BIM teams as IFC or native objects.
Can I learn BIM without AutoCAD?
Yes. BIM software such as Revit or Archicad does not require AutoCAD knowledge, and many architecture courses now start with BIM. What does carry over is drawing literacy: line weights, annotation, dimensioning and sheet conventions. Basic AutoCAD is still worth learning later, because consultants and clients exchange DWG files on most projects.
Do architects use CAD or Revit?
Most use both. BIM tools such as Revit, Archicad or Vectorworks Architect carry the coordinated model and construction documents, while CAD is used for 2D details, site and survey drawings, and exchanging DWG files with consultants who do not model. Small practices doing residential or interiors work sometimes stay with CAD where projects are simple.
Is BIM better than CAD?
For coordinated building documentation, usually yes: drawings and schedules come from one model, consultants can coordinate in 3D, and quantities can be taken off the model. CAD is faster for one-off 2D drawings, sketches and details, needs less setup and lighter hardware, and is enough when no model is required. The right choice depends on the project and its deliverables.
Should I learn AutoCAD or Revit first?
For a career in architecture practice, learn a BIM tool such as Revit or Archicad first, because that is where most documentation work happens, then add enough AutoCAD to open, clean up and exchange DWG files. If your work is mainly 2D drafting, site plans or another discipline that delivers in DWG, AutoCAD first is reasonable.
