Lift cores, 2-car and 4-car sectional banks

A 3-level lift cores, 2-car and 4-car sectional banks template with a 28 × 18 m footprint and 11.4 m overall height. The model includes 2 variants, 6 cars, 3 stops, 1.5 pit depth, 3.8 overrun.

Each shaft has a car at ground, open landing door pockets at displayed stops, guides, counterweight, ropes, buffers and pit ladder. Upper doors represent parked-open inspection states, not an operational safety state.

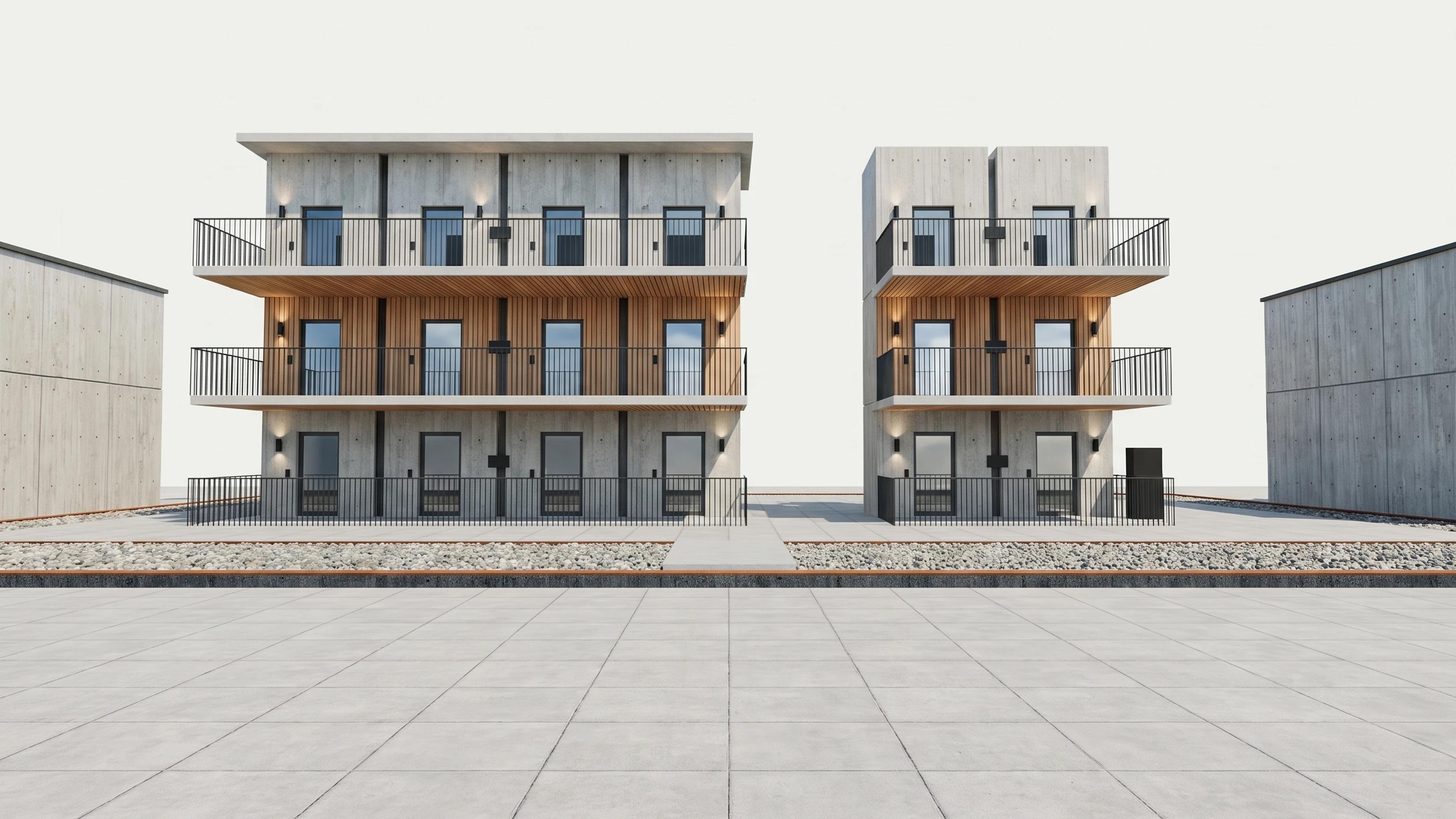

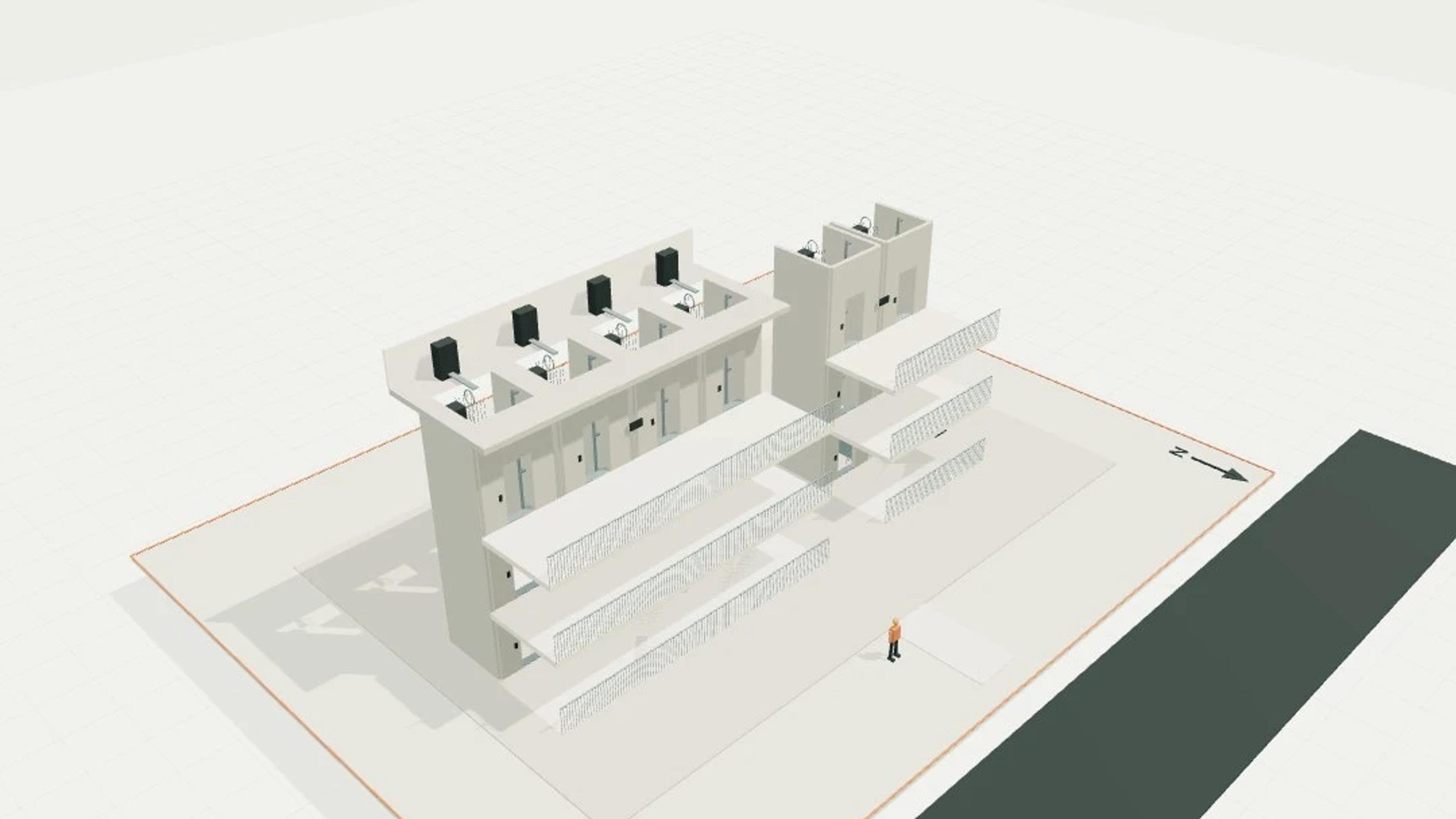

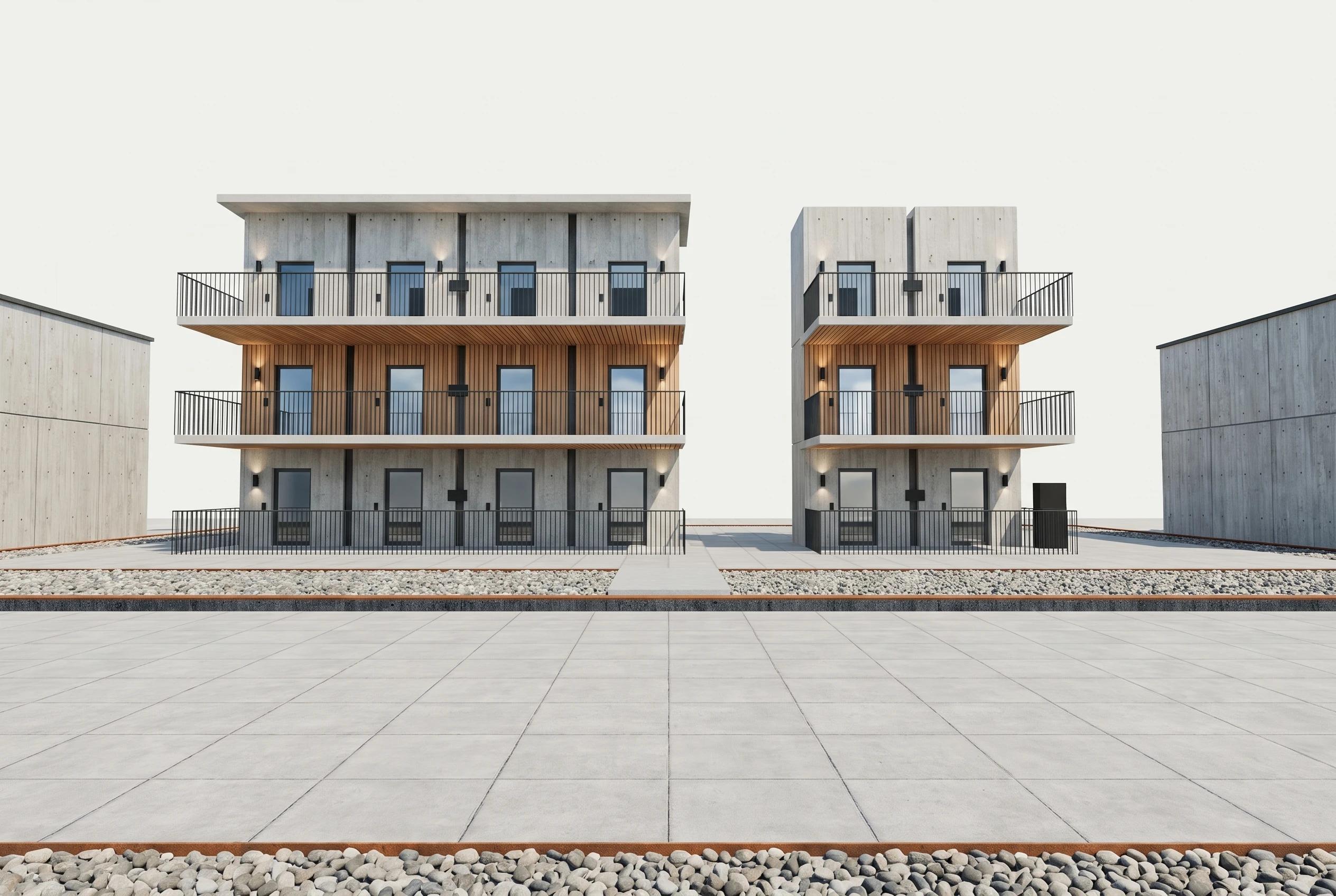

The template ships with 3 saved scenes: a street-level approach, 1 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
