World Trade Center Transportation Hub (Oculus)

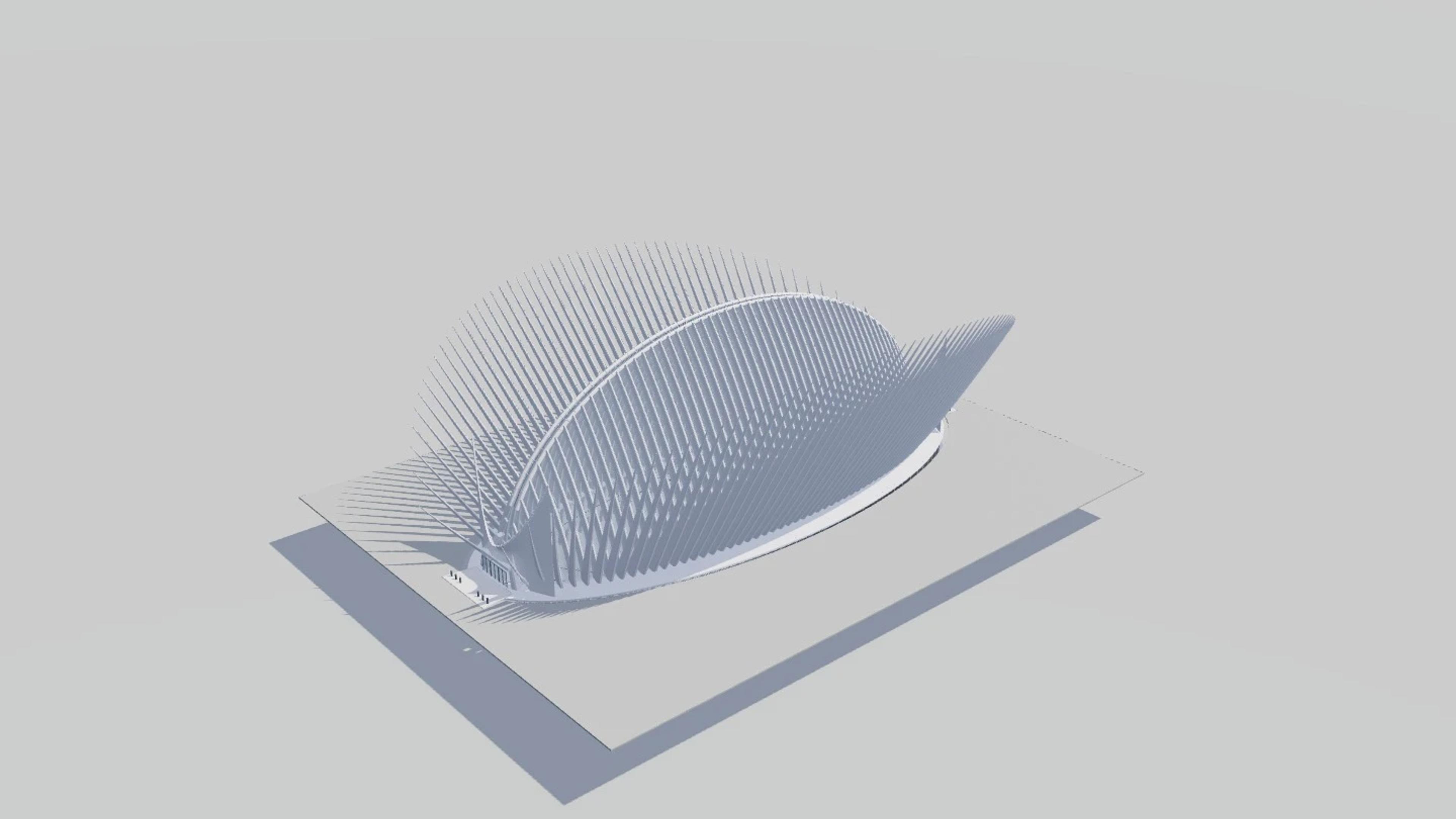

World Trade Center Transportation Hub (Oculus) in New York, United States, by Santiago Calatrava, rebuilt as an approximate visual BIM model from 3 published architectural references. The building measures 112 × 92 m on plan and 48.8 m tall, across 3 named levels: Lower concourse, Upper retail concourse — estimated, Street entrance.

Modelled detail includes elliptical open transit-hall void, tapered white blade ribs and outward wing extensions and closed segmented central skylight with paired arch beams.

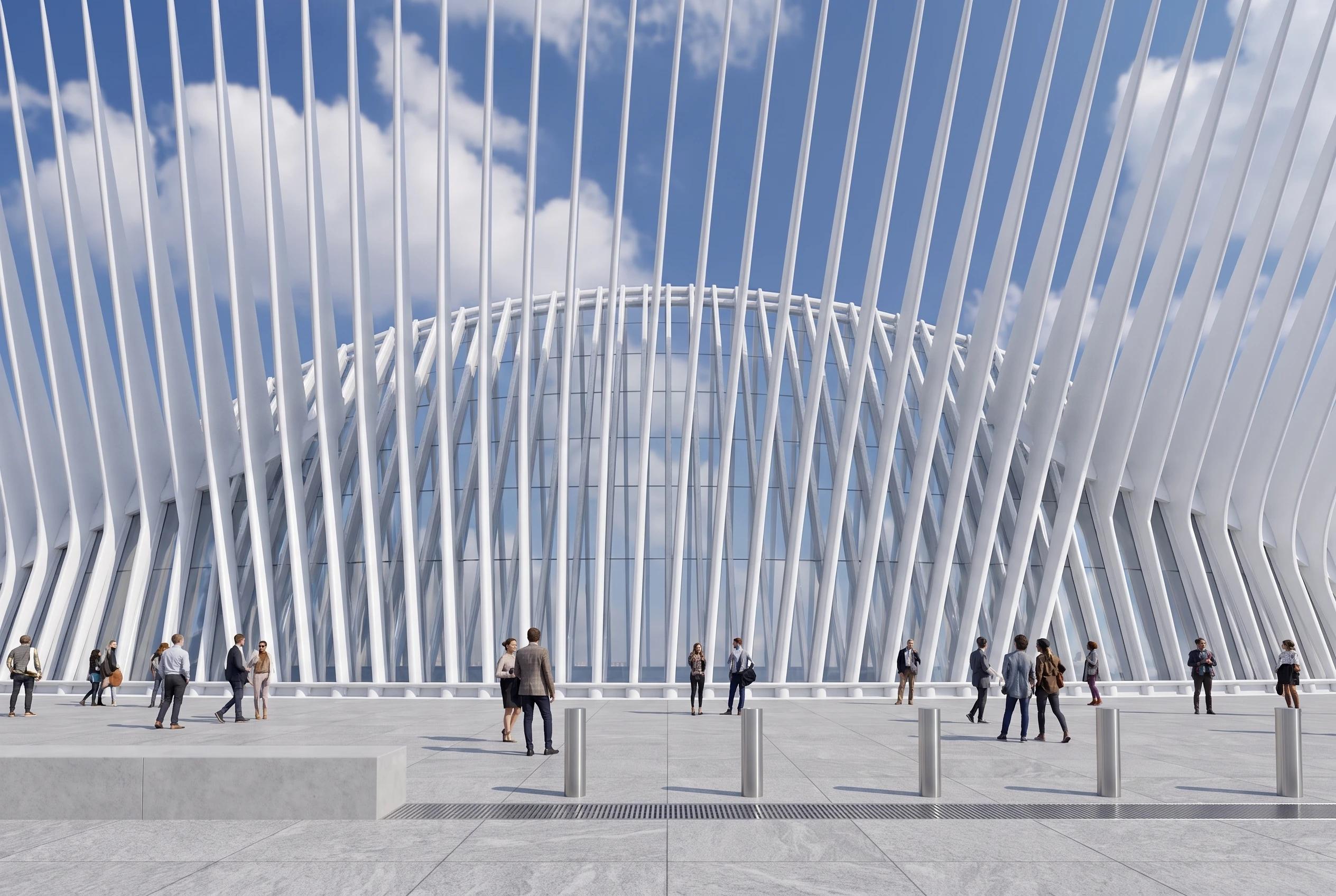

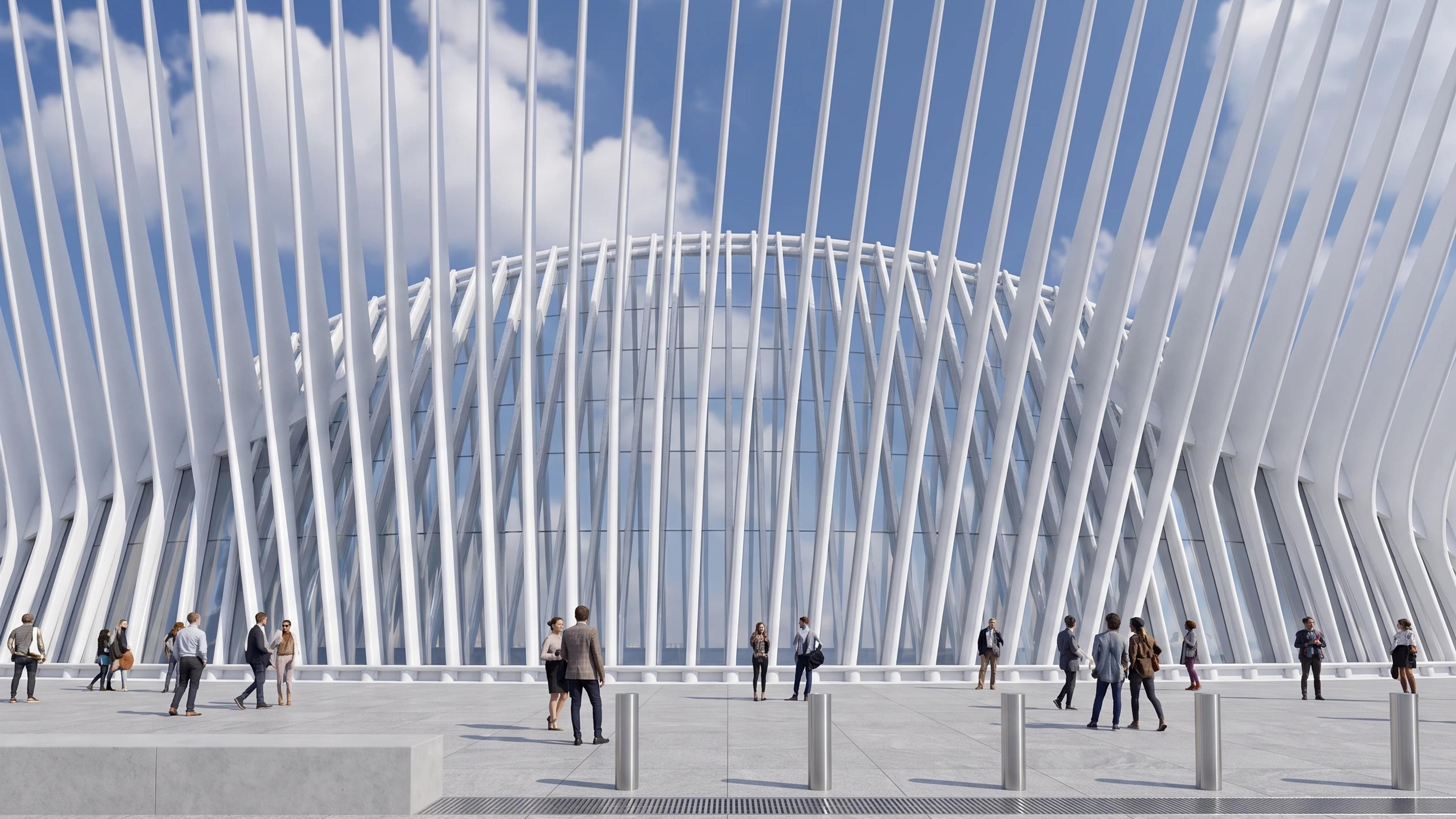

The template ships with 6 saved scenes — a street-level approach, 4 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at New York, NY 10007, USA, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
