Window + door installation, six cladding systems

A single-level window + door installation, six cladding systems template with a 19 × 18 m footprint and 3.4 m overall height. The model includes 6 cladding types, 6 windows, 6 doors, 36 detail locations.

Each of six cladding specimens includes a window and a full-height open doorway with head, jamb and sill/threshold components. Flashing dimensions are illustrative; proprietary coordination remains necessary.

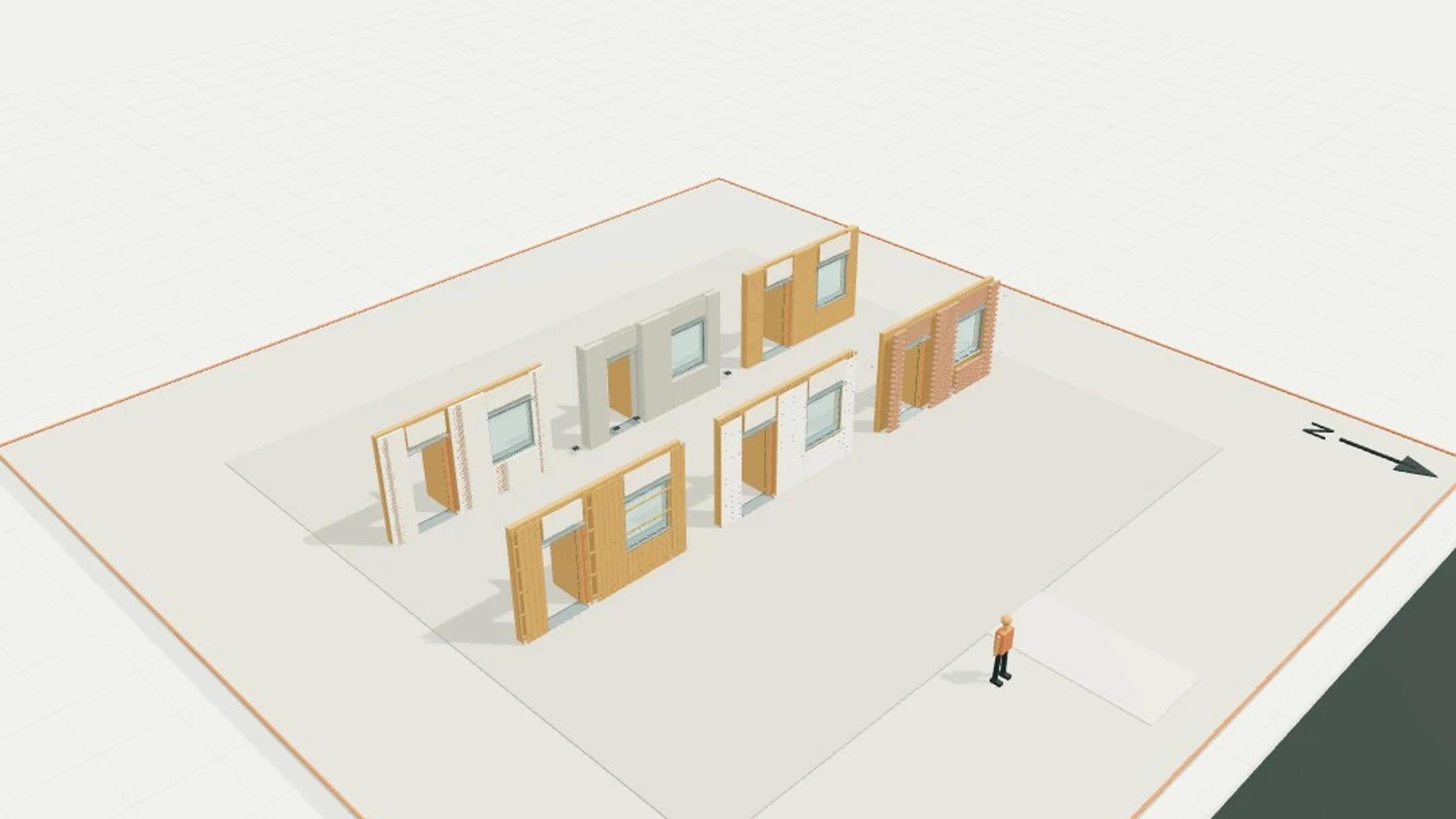

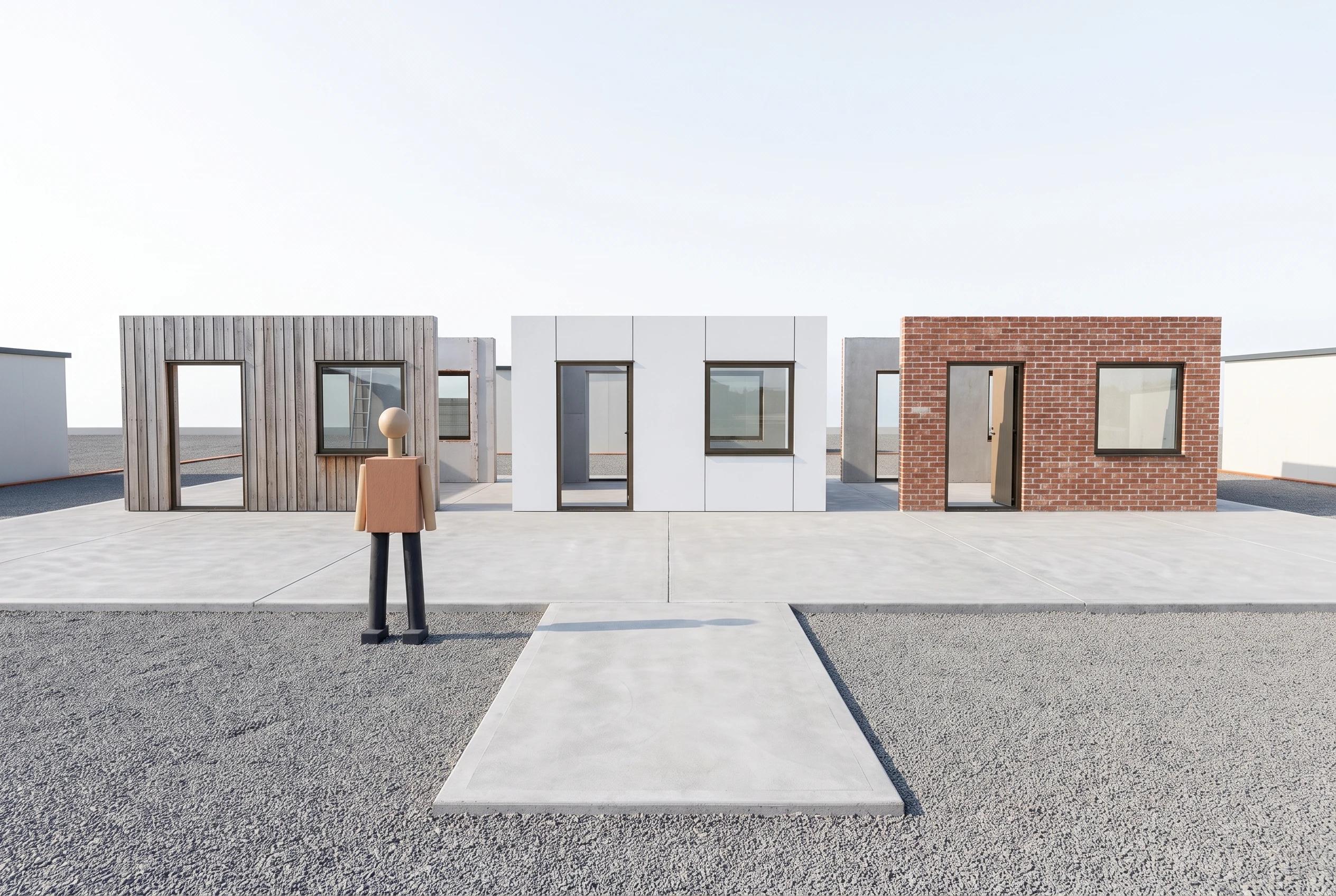

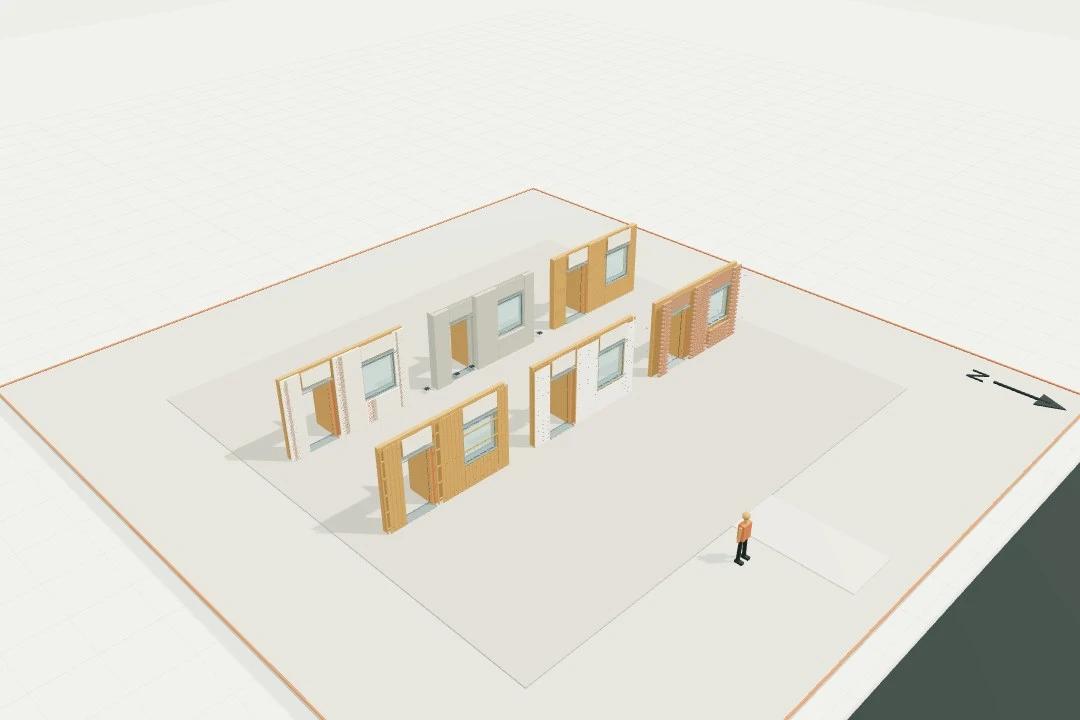

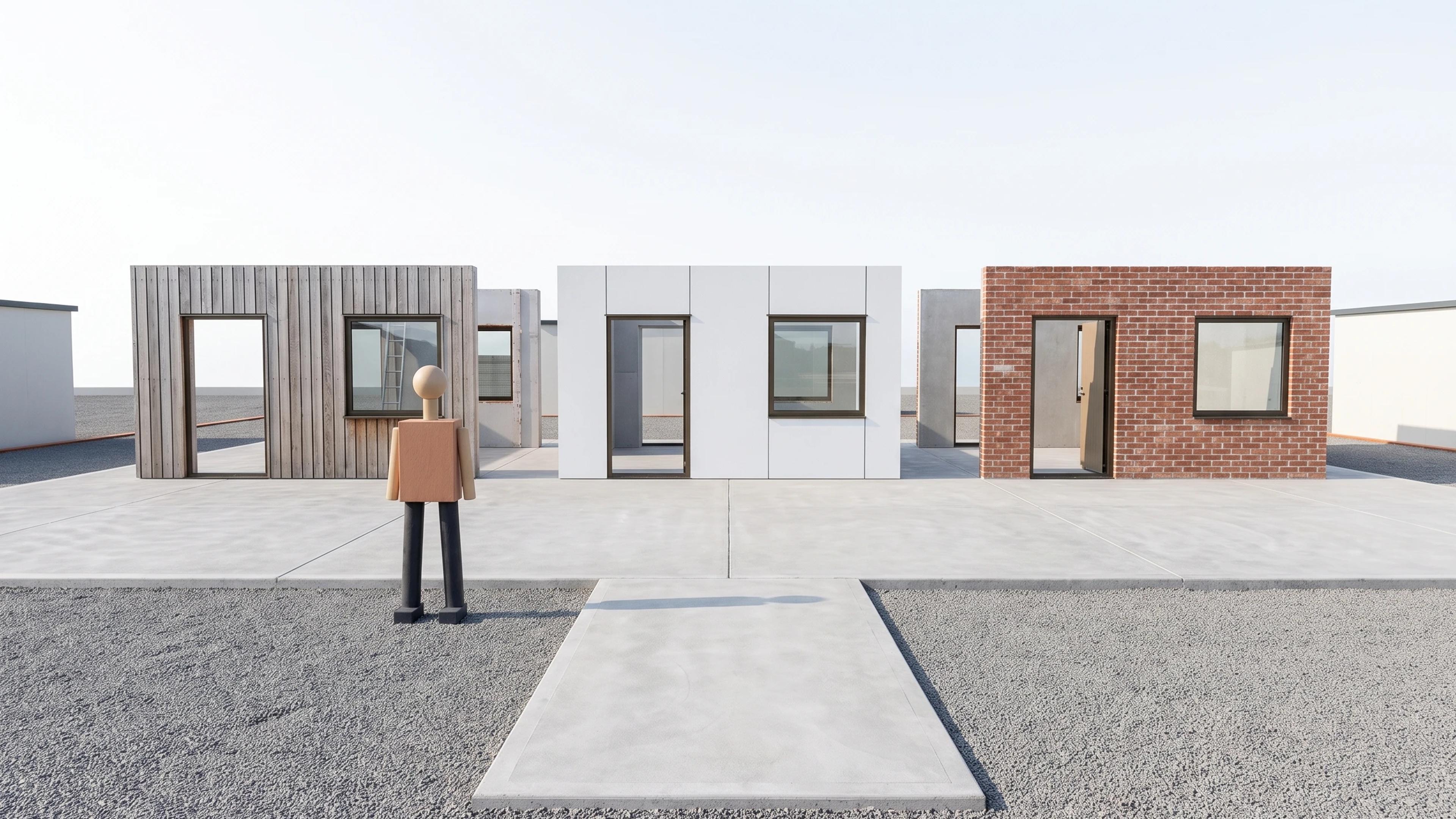

The template ships with 4 saved scenes: a street-level approach, 2 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
