Milwaukee Art Museum

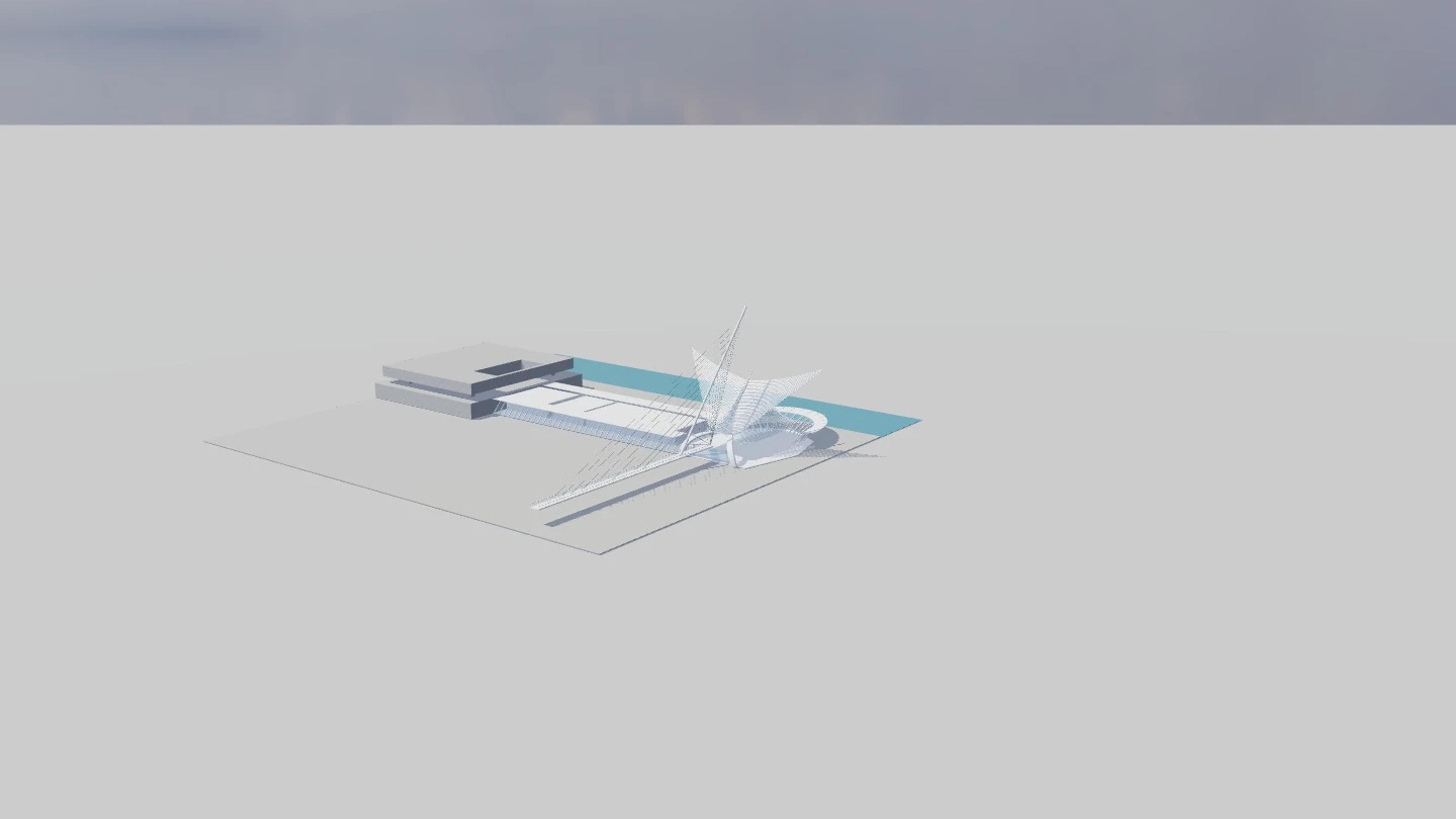

Milwaukee Art Museum in Milwaukee, United States, by Santiago Calatrava (Quadracci Pavilion); Eero Saarinen / David Kahler (earlier museum), rebuilt as an approximate visual BIM model from 3 published architectural references. The building measures 173 × 182 m on plan and 58 m tall, across 3 named levels: Quadracci main floor — nominal datum, Windhover Hall vaulted glass roof, Open sunscreen and bridge-mast inspection.

Modelled detail includes 72-fin open Burke Brise Soleil, pointed glass Windhover Hall with white ribs and swept low eaves and northward gallerias.

The template ships with 6 saved scenes — a street-level approach, 4 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at 700 N Art Museum Dr, Milwaukee, WI 53202, USA, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
