Facade screens, perforated and louvred bays

A single-level facade screens, perforated and louvred bays template with a 7 × 5 m footprint and 3.3 m overall height. The model includes 22 louvre blades, 2 perforated panels, 0.08 hole diameter.

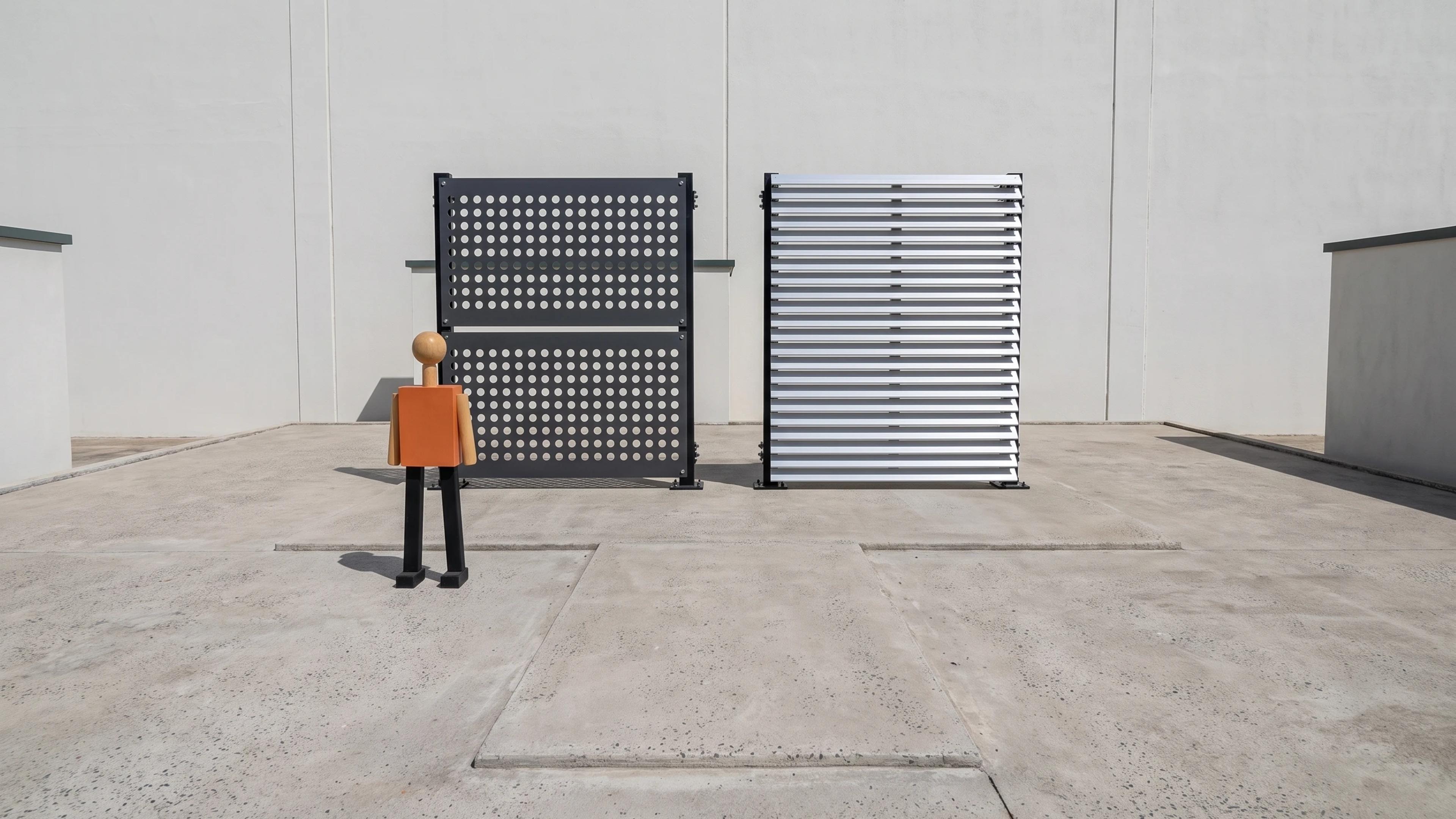

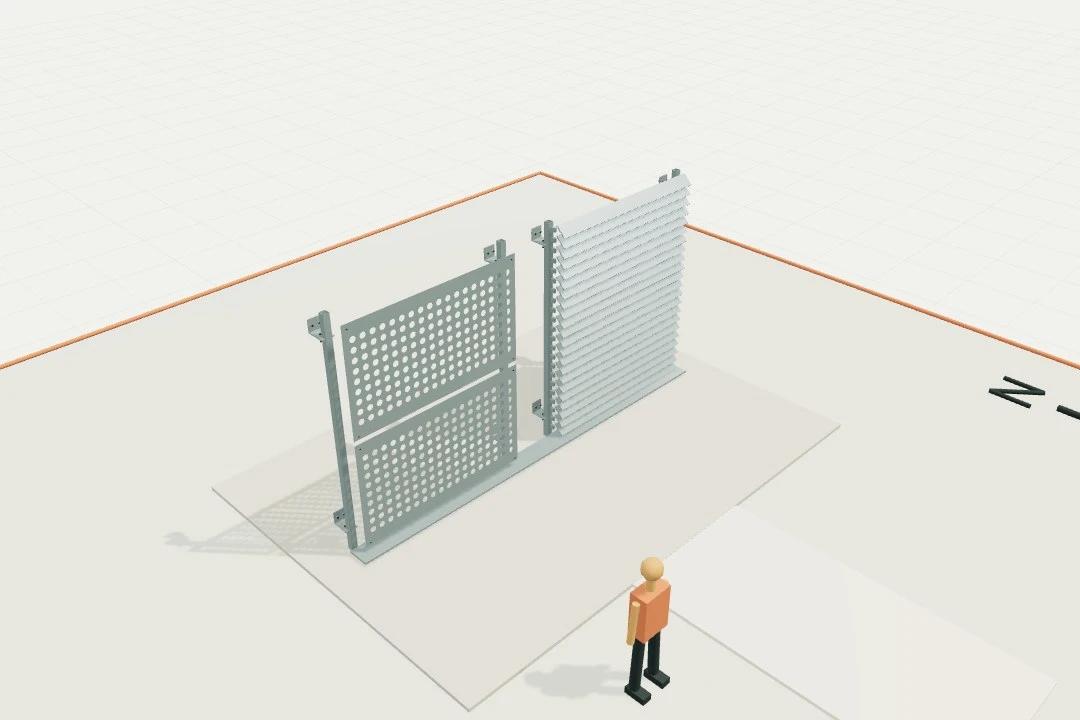

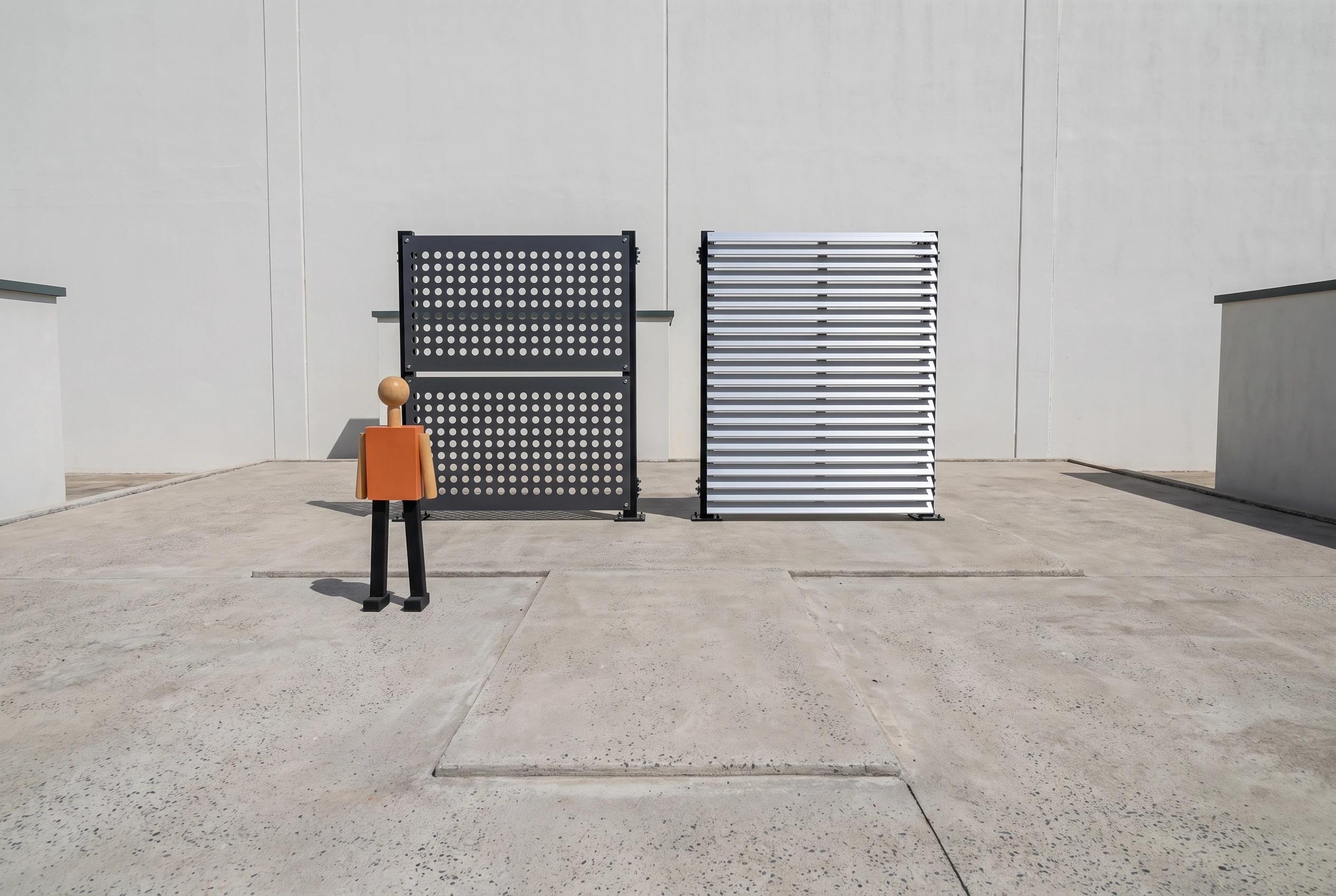

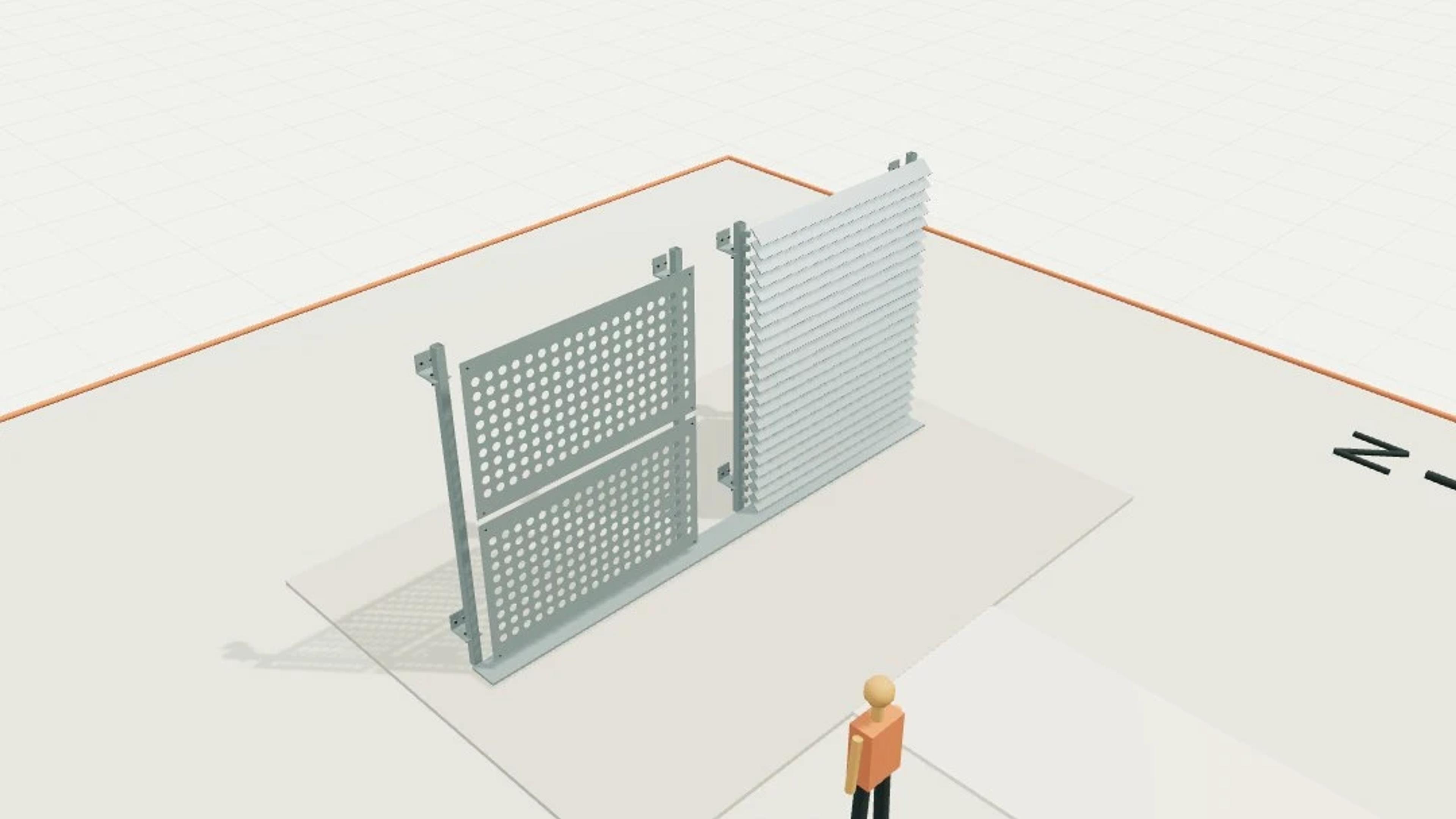

Two systems are shown side-by-side at actual scale. Perforations are through-holes; nominal 45-degree louvre blades and support spans are not wind-load calculations.

The template ships with 3 saved scenes: a street-level approach, 1 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
