Rooftop plant deck

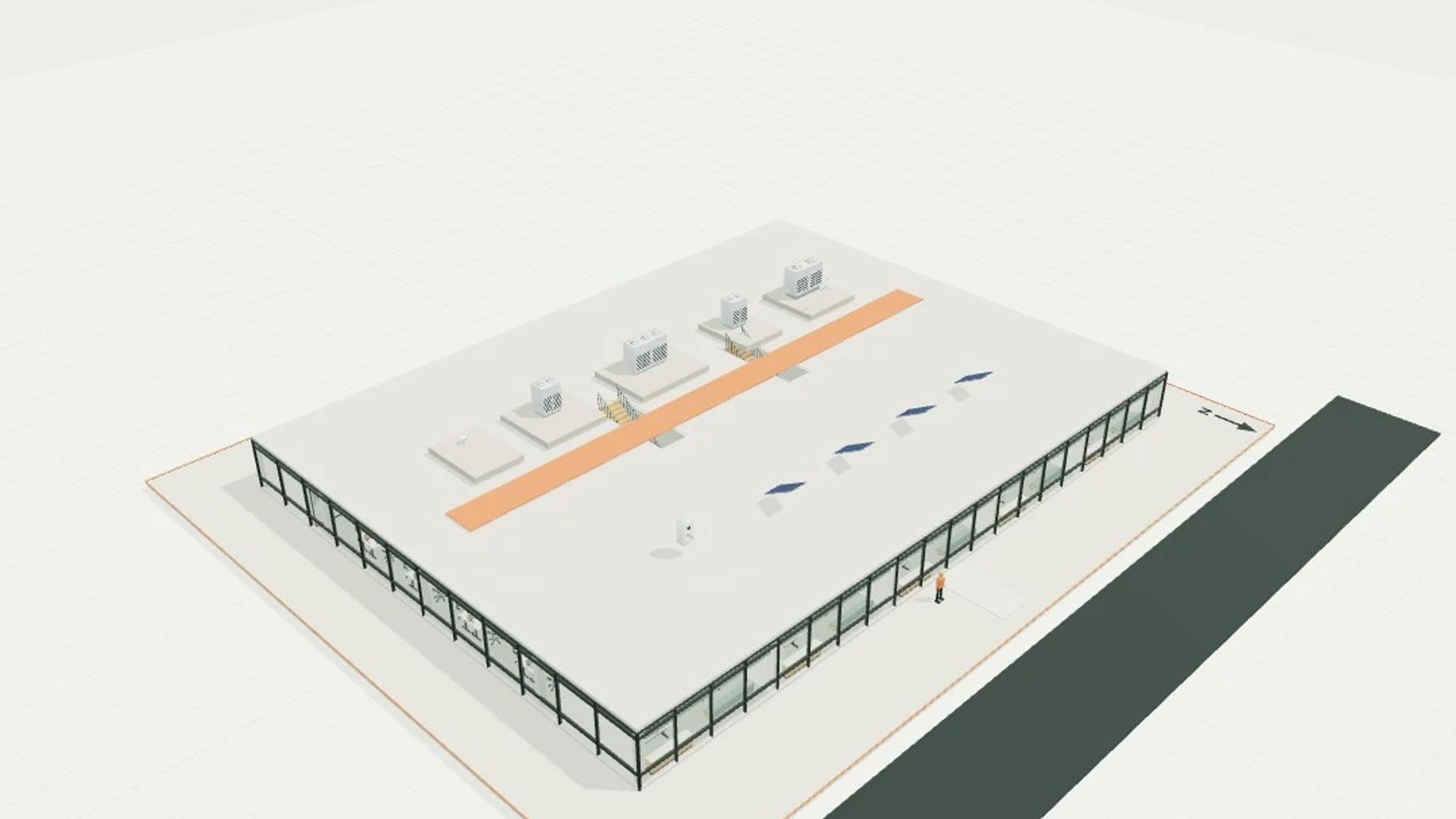

Rooftop plant deck is an M9 showcase built from real Harth library objects: 12 parameterised instances of 9 distinct objects, with 1 authored joint recorded between their connectors. The background is authored geometry — a 40 × 30 m inspection floor with context massing, a north point and a 1.7 m scale figure — so every services item in the scene is a live, editable library instance rather than fixed mesh.

Open it and the services objects keep their parameters and connector metadata, so the agent can inspect, check and correct them. 28 connectors are deliberately left open.

Original reference-informed architectural template; no survey, scaleVerified=false.

Metres; local +X right, +Y up, +Z rear; ground FFL=0.

Furniture, structure and engineering details inferred; not construction or code-compliance documentation.

Single typical tower floor with ninety shared desks and ten furnished perimeter offices. Three lift cars and two continuing enclosed stairs are explicit. Upper stair landings represent the next floor beyond this template; tower structure, access and services are nominal.

Real library geometry and parameters are retained. GLB and IFC are static inspection mirrors; use the placement package to create editable Harth library instances.

No routing solver or persisted connection graph is claimed. The documented port pairs are authored joints, and every unused port is listed.

Nominal design geometry; no engineering rating, code compliance, horticultural suitability or cadastral accuracy is claimed.

Try these prompts with the agent:

Inspect roof support plinths and the marked maintenance aisle; report physical obstructions.

List each equipment port and its system, including condenser-water versus chilled-water.

Check access to the chiller and cooling tower without asserting structural capacity or roof loading.

Propose explicit routes to the building services risers; this deck is a coordination layout with open equipment ports.
