Chilled-water starter branch

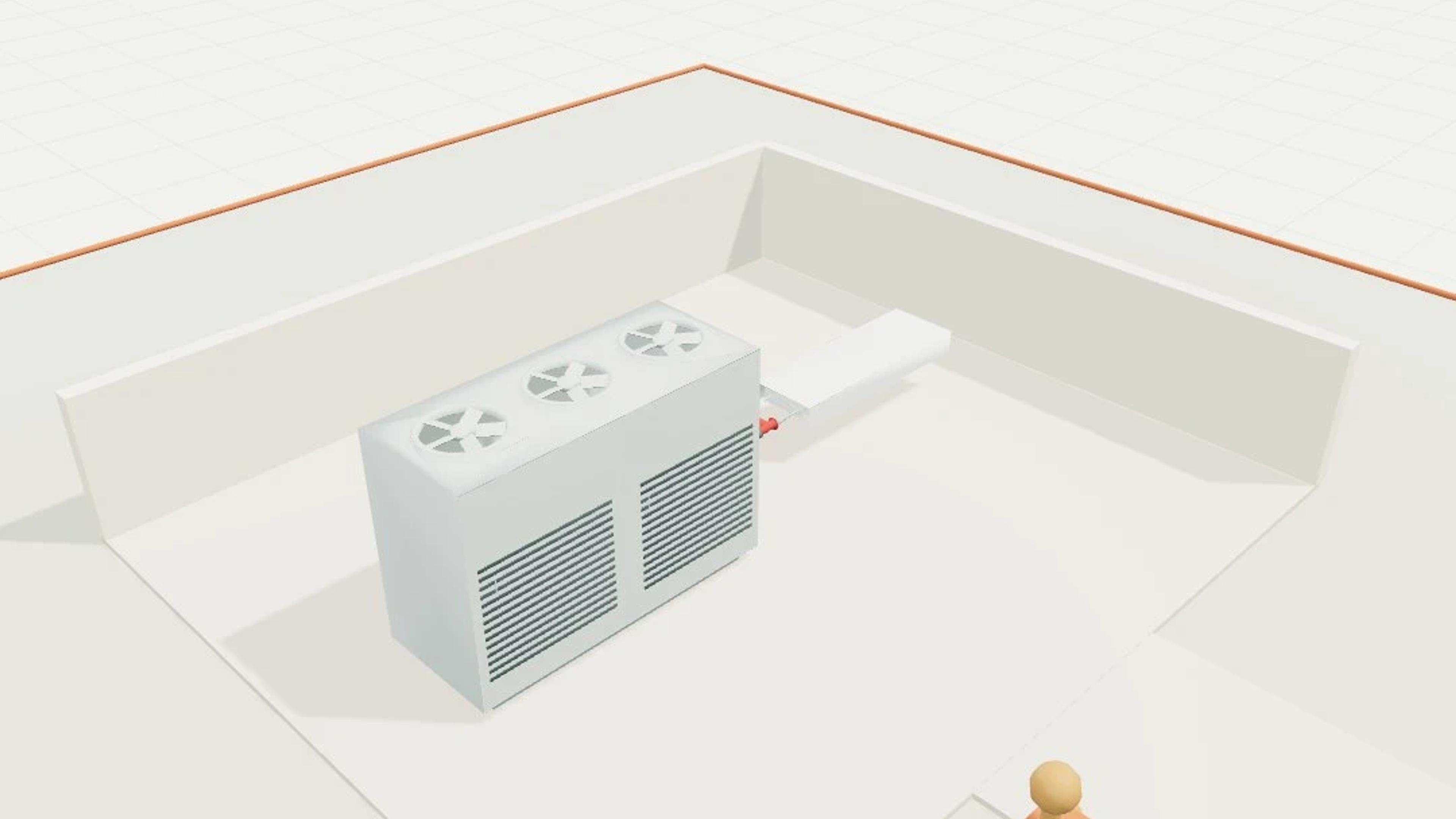

Chilled-water starter branch is an M2 showcase built from real Harth library objects: 6 parameterised instances of 6 distinct objects, with 5 authored joints recorded between their connectors. The background is authored geometry — a 7 × 6 m inspection floor with context massing, a north point and a 1.7 m scale figure — so every services item in the scene is a live, editable library instance rather than fixed mesh.

Open it and the services objects keep their parameters and connector metadata, so the agent can inspect, check and correct them. 4 connectors are deliberately left open.

Real library geometry and parameters are retained. GLB and IFC are static inspection mirrors; use the placement package to create editable Harth library instances.

No routing solver or persisted connection graph is claimed. The documented port pairs are authored joints, and every unused port is listed.

Nominal design geometry; no engineering rating, code compliance, horticultural suitability or cadastral accuracy is claimed.

Try these prompts with the agent:

Inspect every recorded chilled-water supply connection from chiller to passive beam.

Is this check valve facing the right way? Compare its inlet and outlet to the declared supply direction.

Explain why the 50 mm to 15 mm reducer is needed and check both clear-bore profiles.

Identify the unconnected return ports. Describe what is missing without claiming a closed operating circuit.
