Sprinkler drop

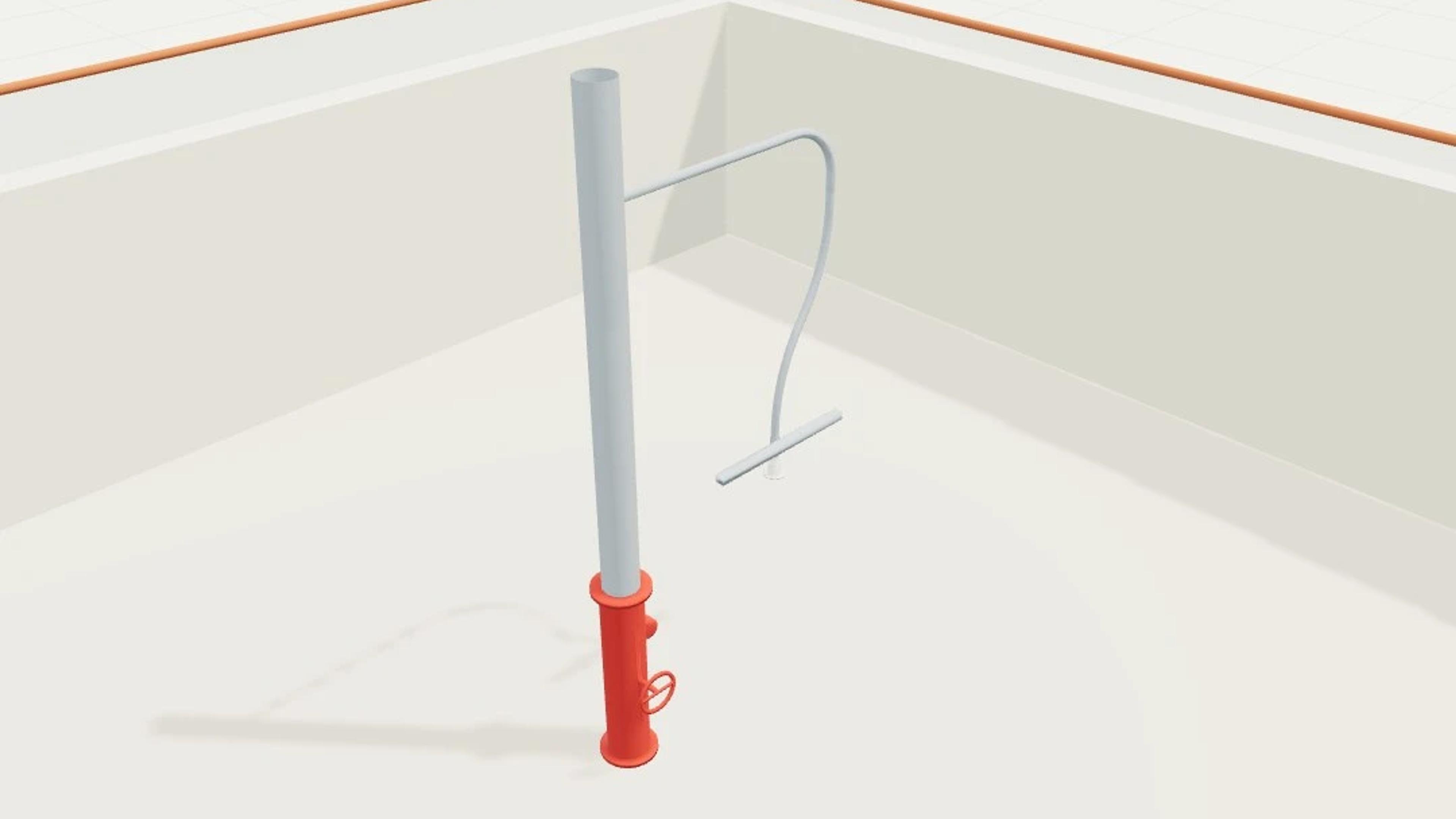

Sprinkler drop is an M4 showcase built from real Harth library objects: 6 parameterised instances of 6 distinct objects, with 5 authored joints recorded between their connectors. The background is authored geometry — a 5 × 5 m inspection floor with context massing, a north point and a 1.7 m scale figure — so every services item in the scene is a live, editable library instance rather than fixed mesh.

Open it and the services objects keep their parameters and connector metadata, so the agent can inspect, check and correct them. 2 connectors are deliberately left open.

Real library geometry and parameters are retained. GLB and IFC are static inspection mirrors; use the placement package to create editable Harth library instances.

No routing solver or persisted connection graph is claimed. The documented port pairs are authored joints, and every unused port is listed.

Nominal design geometry; no engineering rating, code compliance, horticultural suitability or cadastral accuracy is claimed.

Try these prompts with the agent:

Inspect the sprinkler riser, tee, elbow, flexible drop and concealed head port pairs.

Do these concealed sprinklers cover the room? Explain what the model can verify and what a fire engineer must design.

Check that every pipe in this branch uses the sprinkler system, including the tee branch.

Identify the unused main outlet and explain what is missing from this one-head inspection assembly.
