Six-lot subdivision with separate access and services corridors

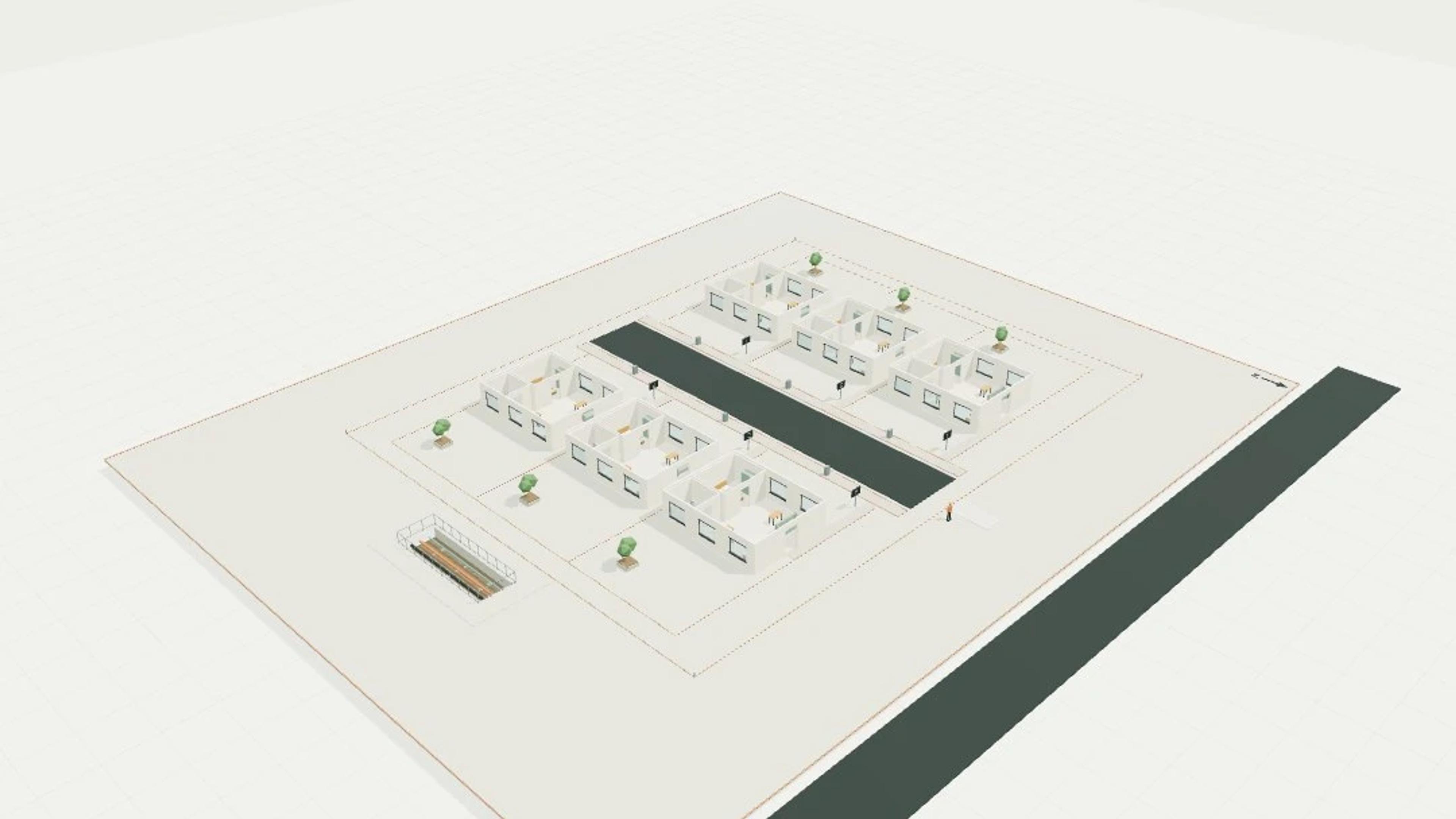

A single-level six-lot subdivision with separate access and services corridors template with a 76 × 56 m footprint and 4 m overall height. The model includes 6 residential lots, 1 access lots, 2 service corridors, 6 dwellings, 1 inspection trenches.

Six original 22 × 12 m residential lots, one 6 × 40 m access parcel and two 1.2 m service corridors are schematic study geometry, not a cadastral survey or subdivision consent.

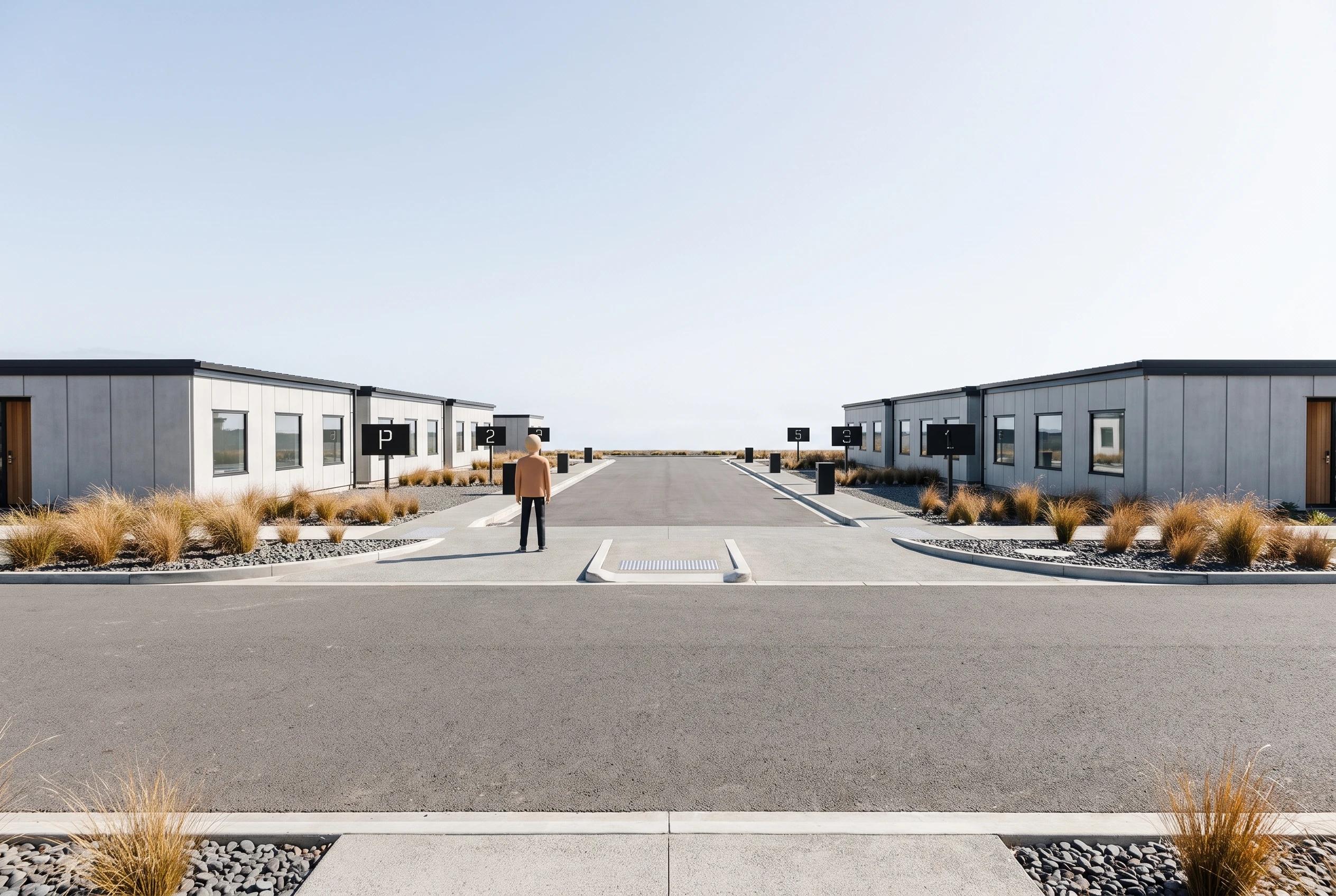

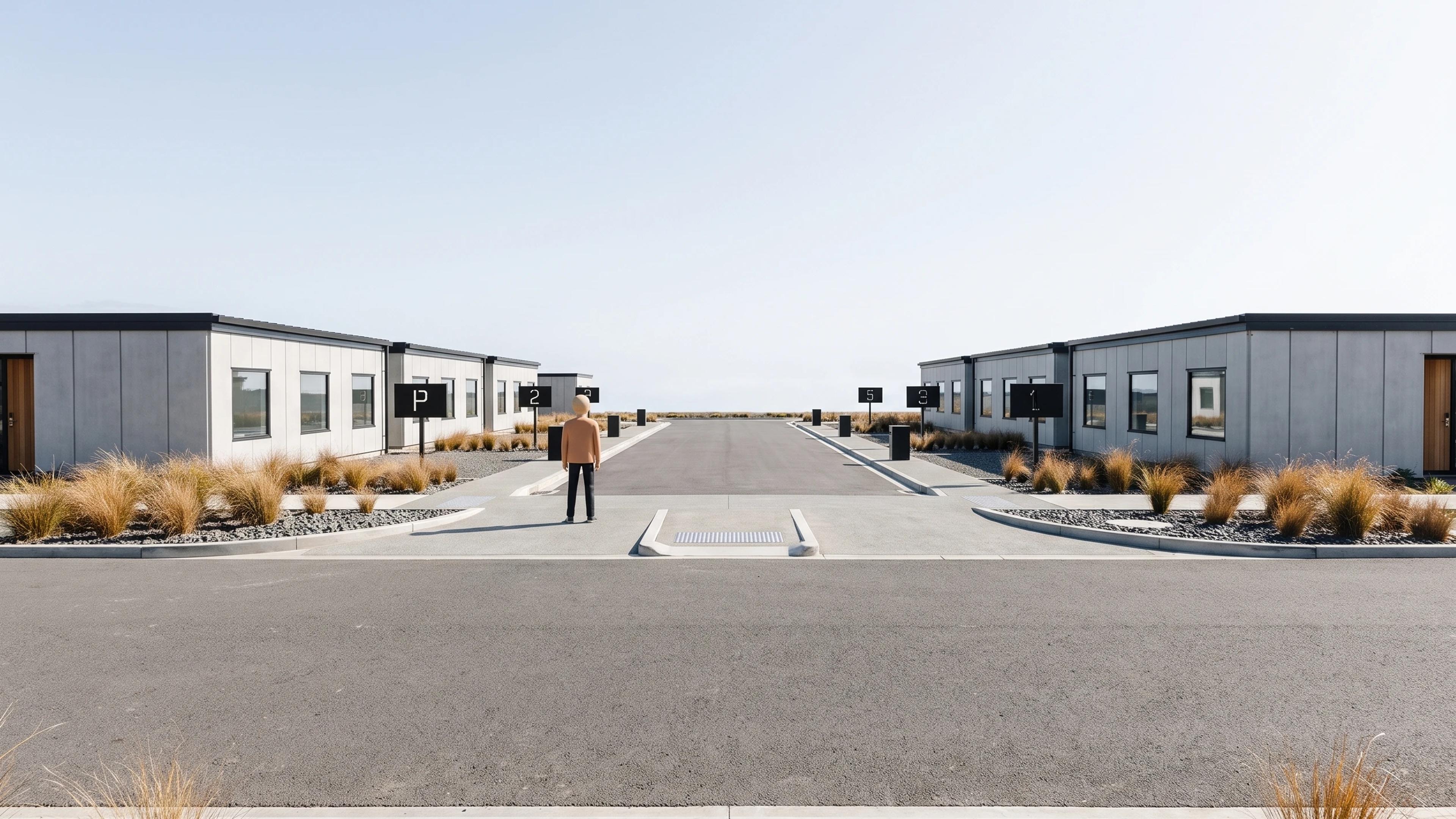

The template ships with 5 saved scenes: a street-level approach, 3 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
