The Broad

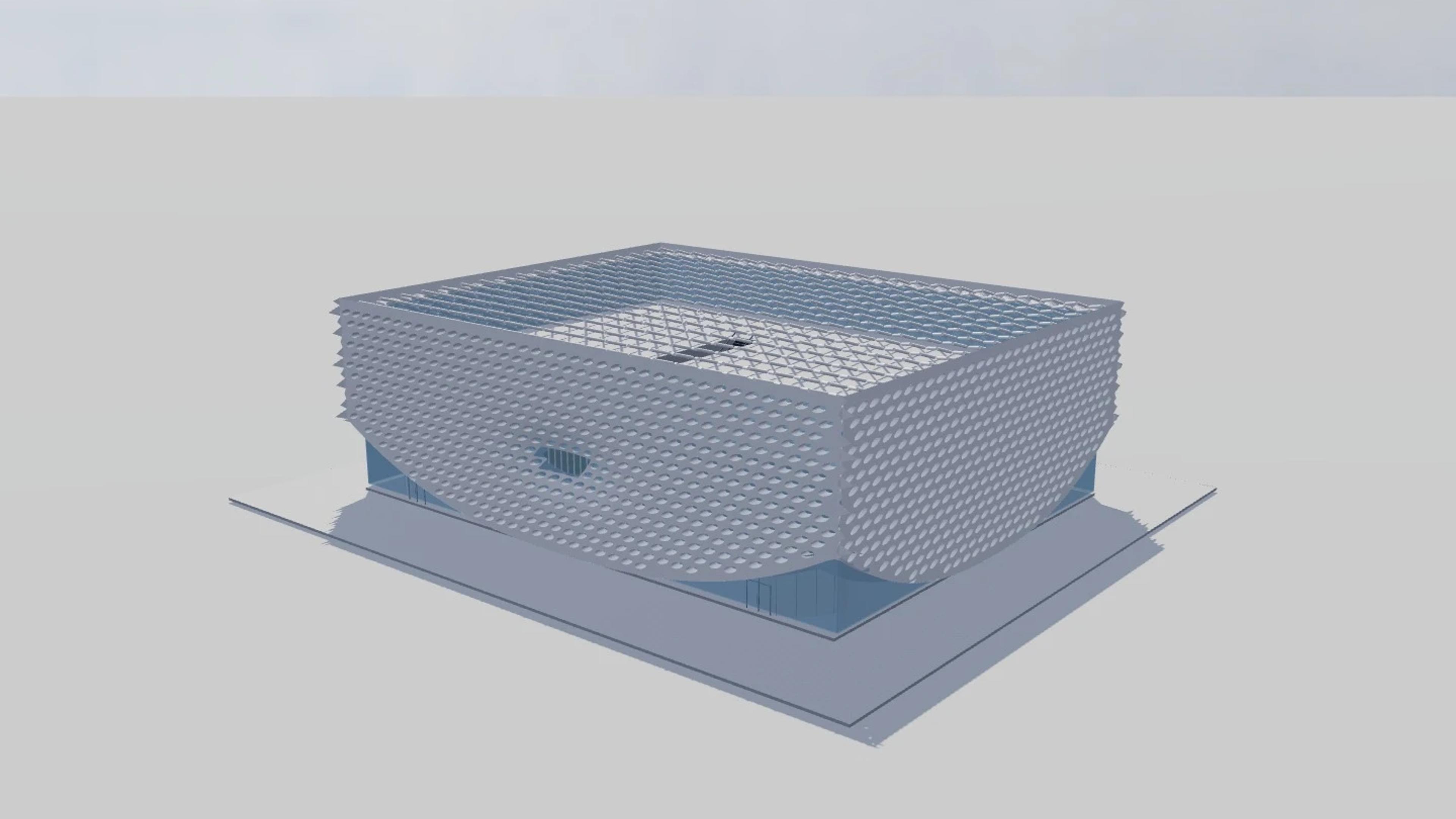

The Broad in Los Angeles, United States, by Diller Scofidio + Renfro with Gensler, rebuilt as an approximate visual BIM model from 2 published architectural references. The building measures 70 × 55 m on plan and 23 m tall, across 3 named levels: Lobby, Collection vault — estimated, Third-floor gallery — estimated datum.

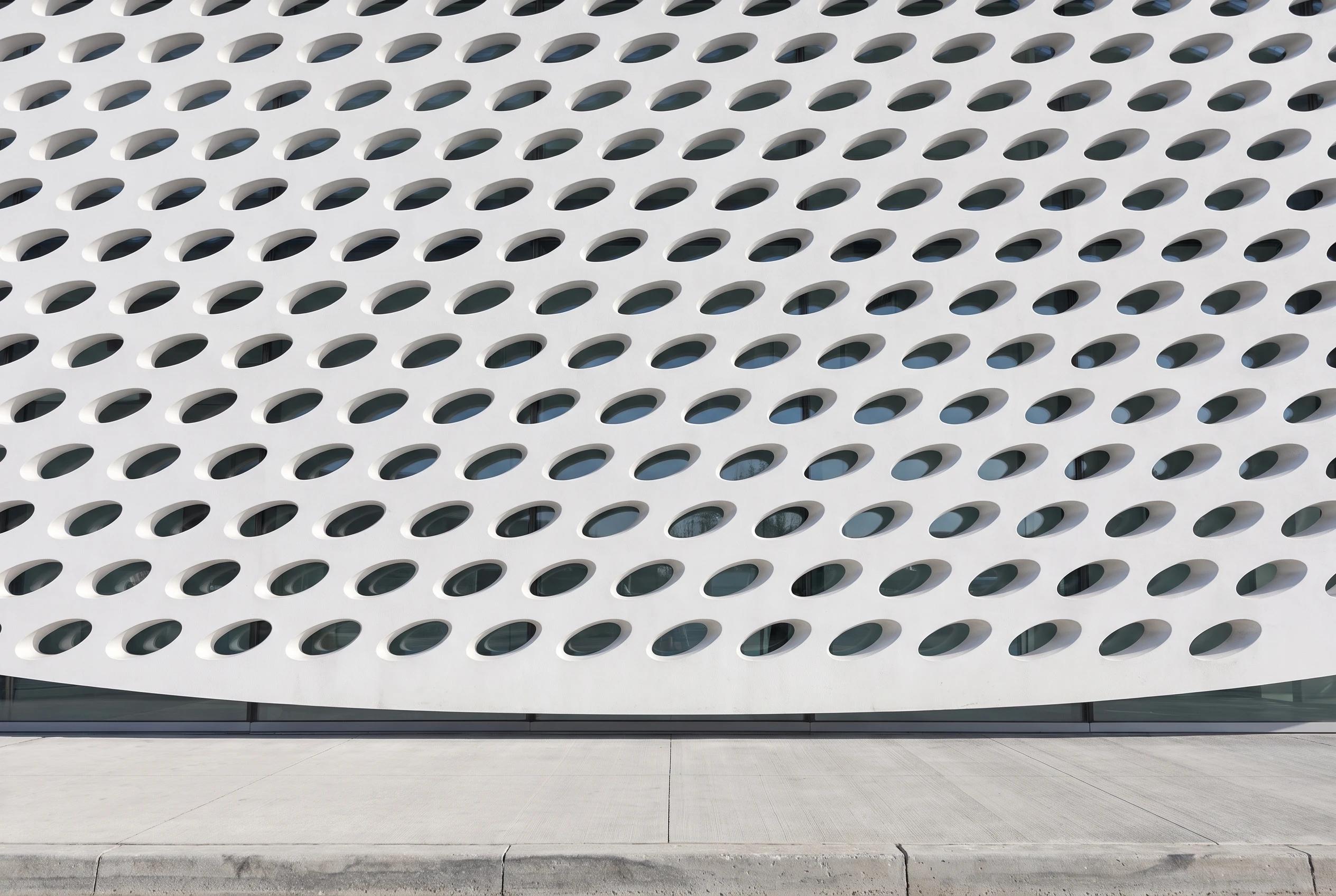

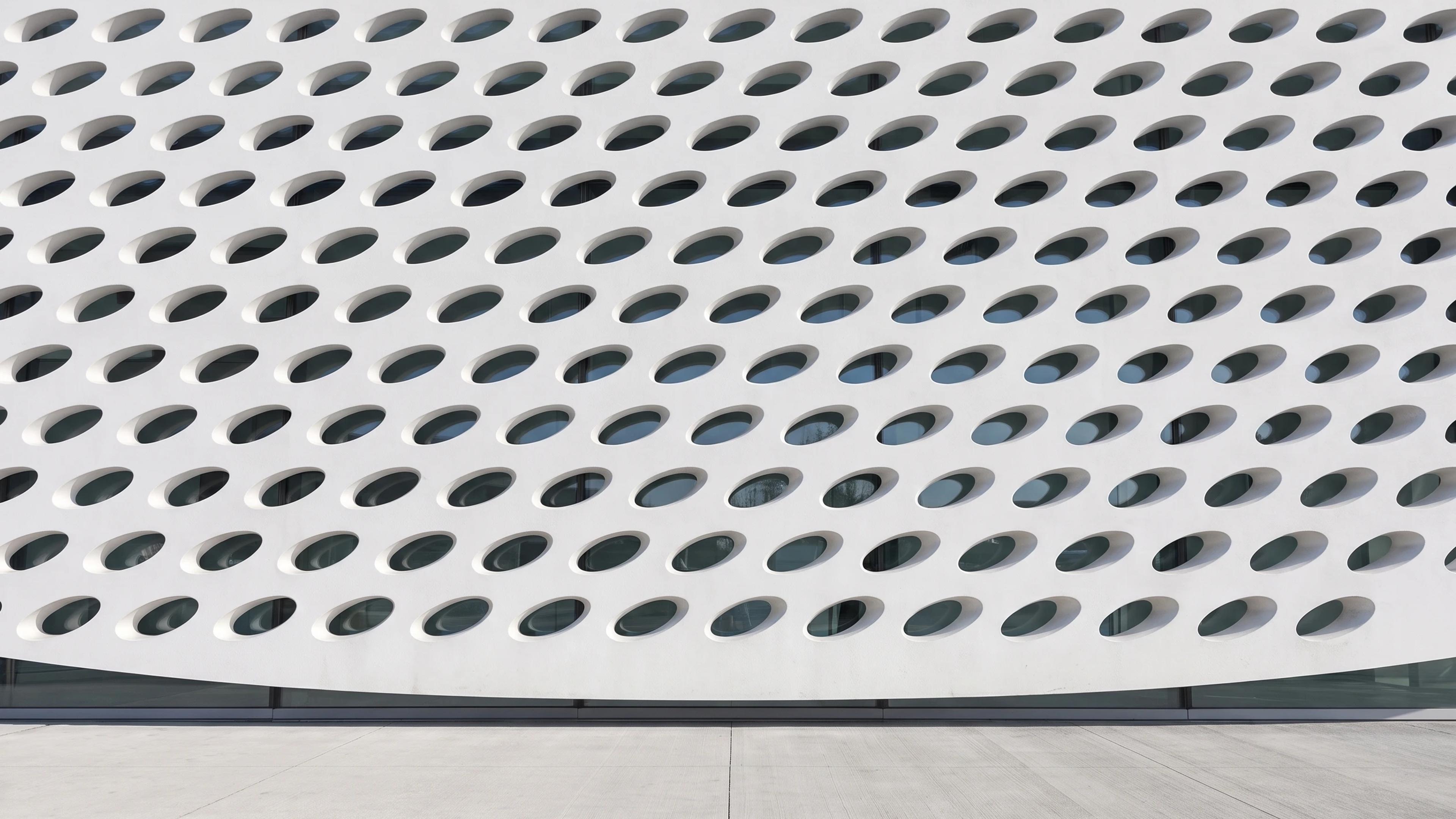

Modelled detail includes perforated honeycomb veil with lifted corners, inset eye in Grand Avenue facade and suspended collection vault.

The template ships with 5 saved scenes — a street-level approach, 3 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at 221 S Grand Ave, Los Angeles, CA 90012, USA, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
