Walt Disney Concert Hall

Walt Disney Concert Hall in Los Angeles, United States, by Frank Gehry, rebuilt as an approximate visual BIM model from 5 published architectural references. The building measures 126 × 112 m on plan and 45 m tall, across 3 named levels: Lobby datum — estimated, Concert platform — estimated, Garden terrace — estimated.

Modelled detail includes individually editable asymmetric stainless sails with cut edge returns, flat auditorium roof with parapet and lower terrace pockets and staggered stainless panel courses and recessed entrance glazing.

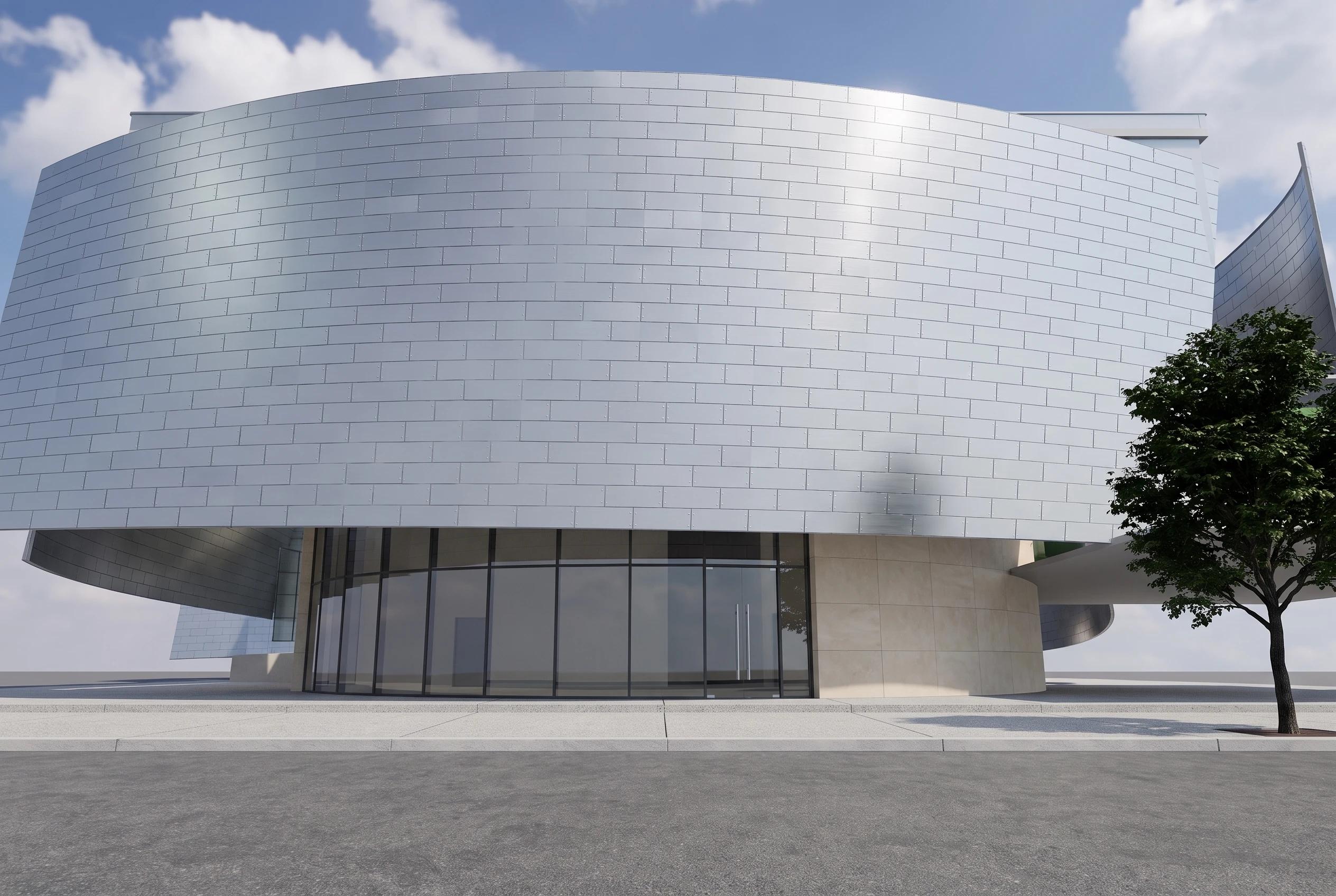

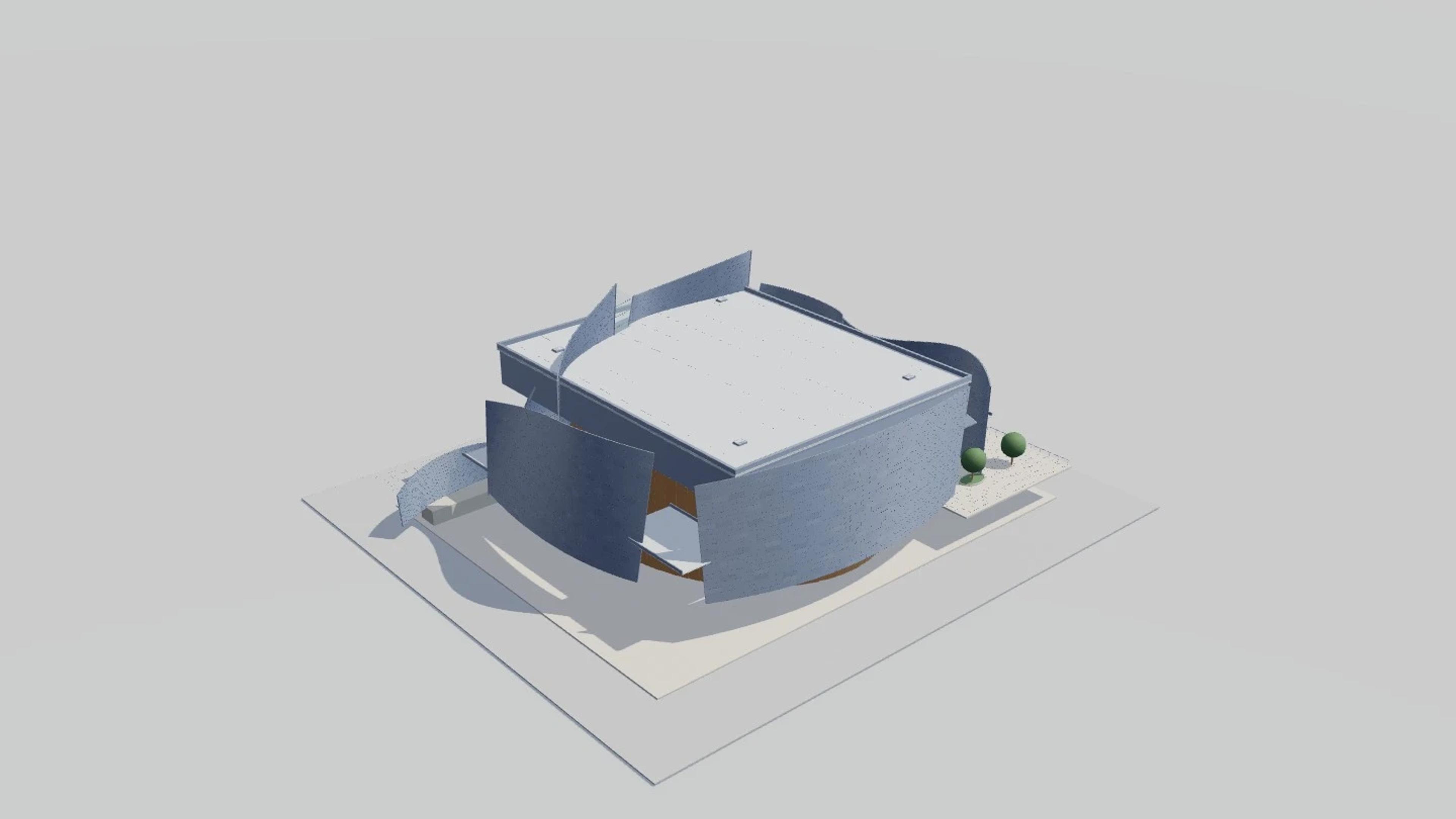

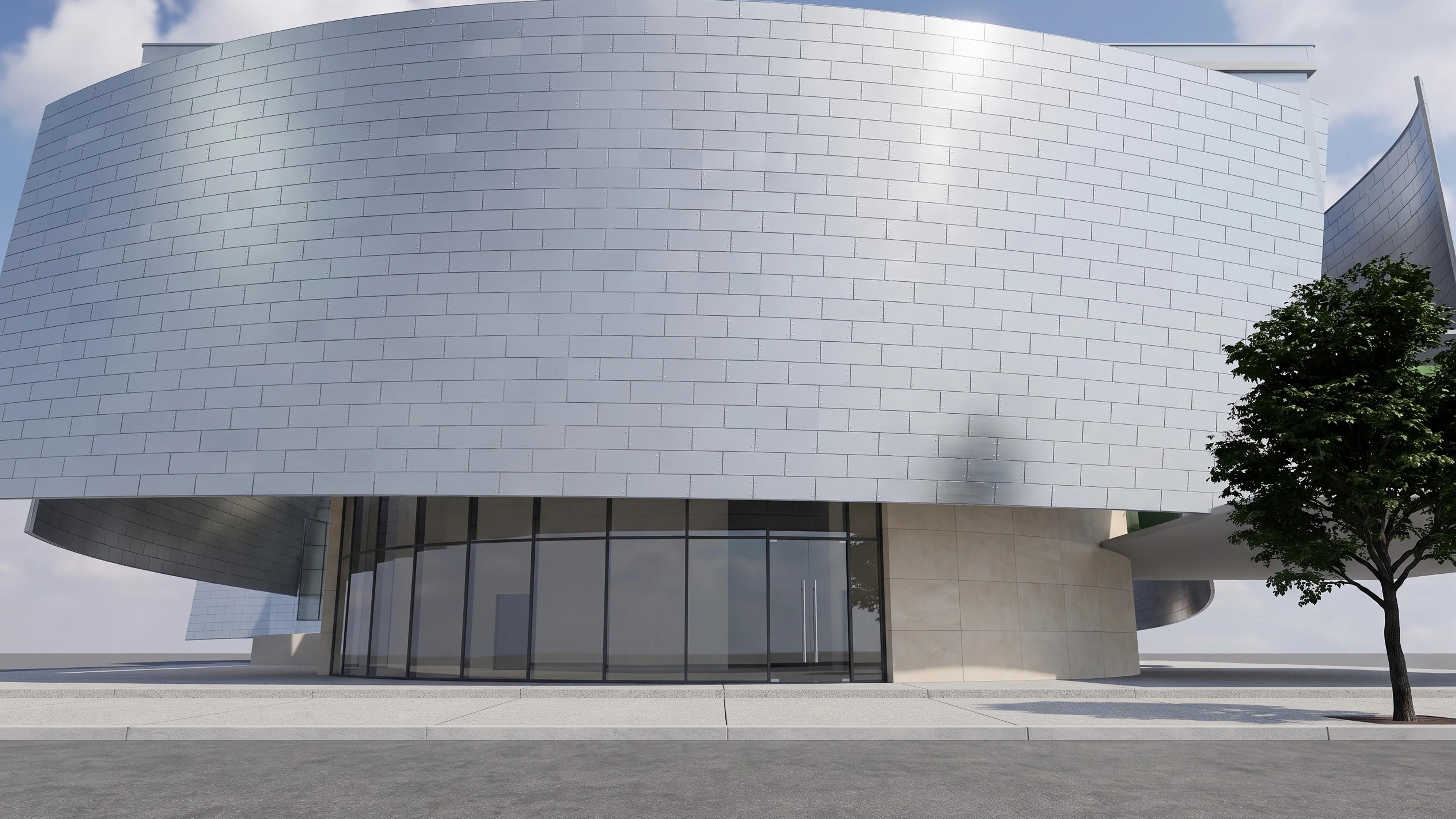

The template ships with 6 saved scenes — a street-level approach, 4 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at 111 S Grand Ave, Los Angeles, CA 90012, USA, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
