Ramp module, 1:12 flights and 180° level turn

A single-level ramp module, 1:12 flights and 180° level turn template with a 8 × 13 m footprint and 2.3 m overall height. The model includes 2 flights, 1 rise, 6 flight run, 12 gradient, 1.5 clear width, 1.8 turn landing depth, 0.3 handrail extension.

Two nominal 1:12 flights each rise 500 mm. Clear width is 1.5 m between handrails; a 1.8 m level turning landing connects the parallel flights. Surface friction, loads and all regulatory conditions require project review.

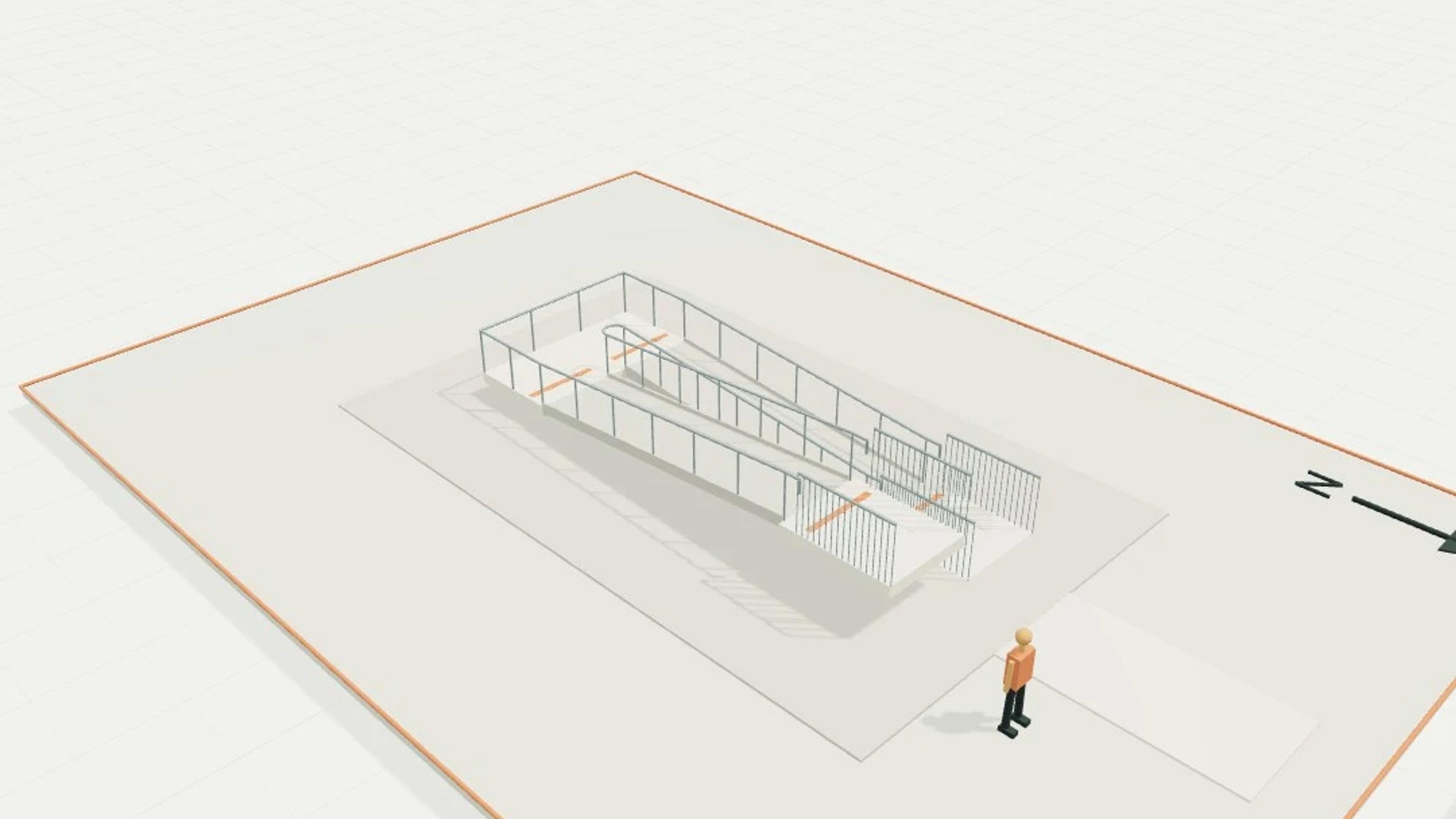

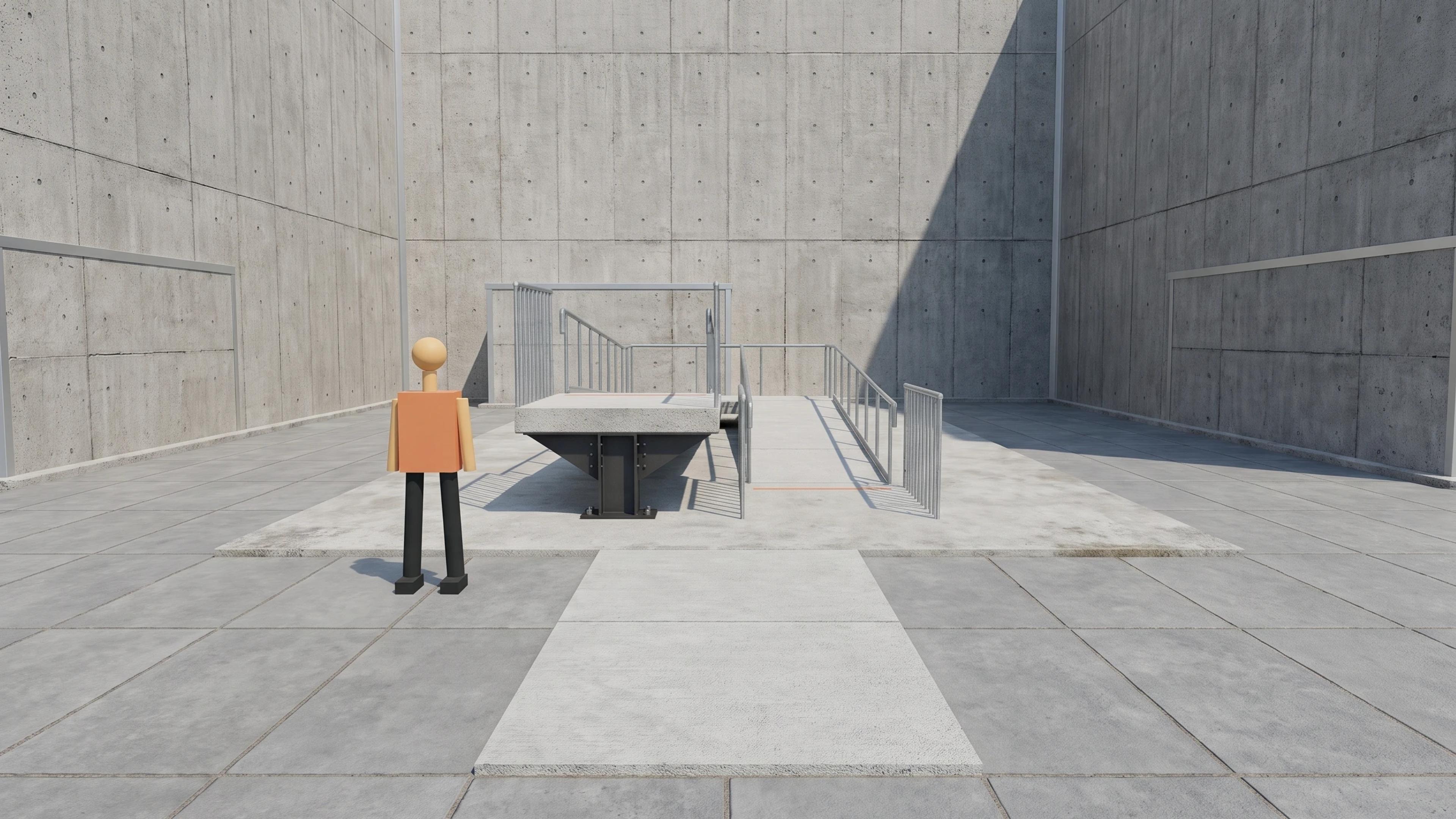

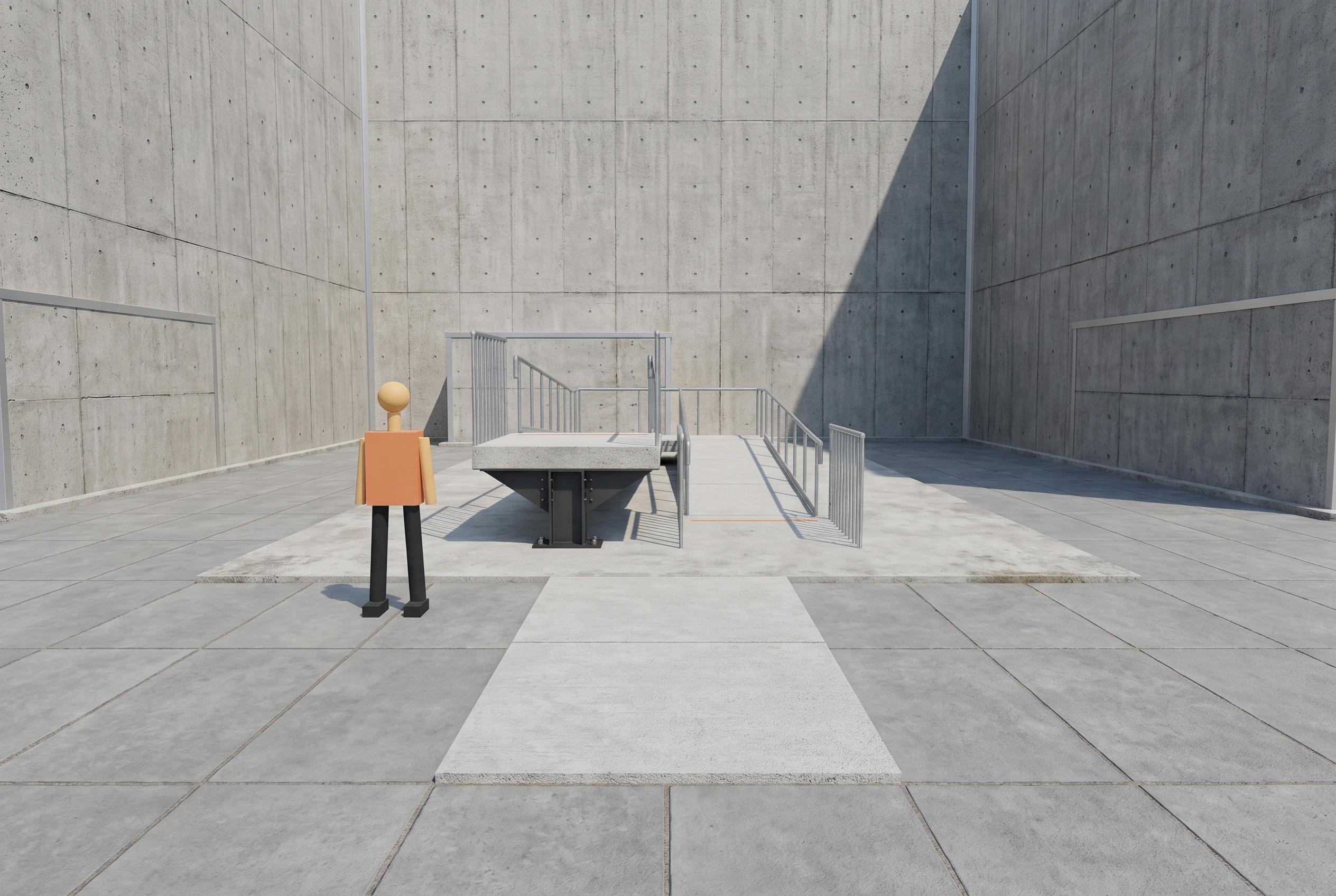

The template ships with 4 saved scenes: a street-level approach, 2 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
