Four-bay bus interchange and sheltered platform

A single-level four-bay bus interchange and sheltered platform template with a 78 × 34 m footprint and 6.2 m overall height. The model includes 4 bus bays, 68 platform length, 24 waiting seats.

Four in-line bus stopping positions and a separate through lane illustrate interchange zoning. Nominal bus envelopes and platform geometry do not replace bus swept-path, traffic or accessibility analysis.

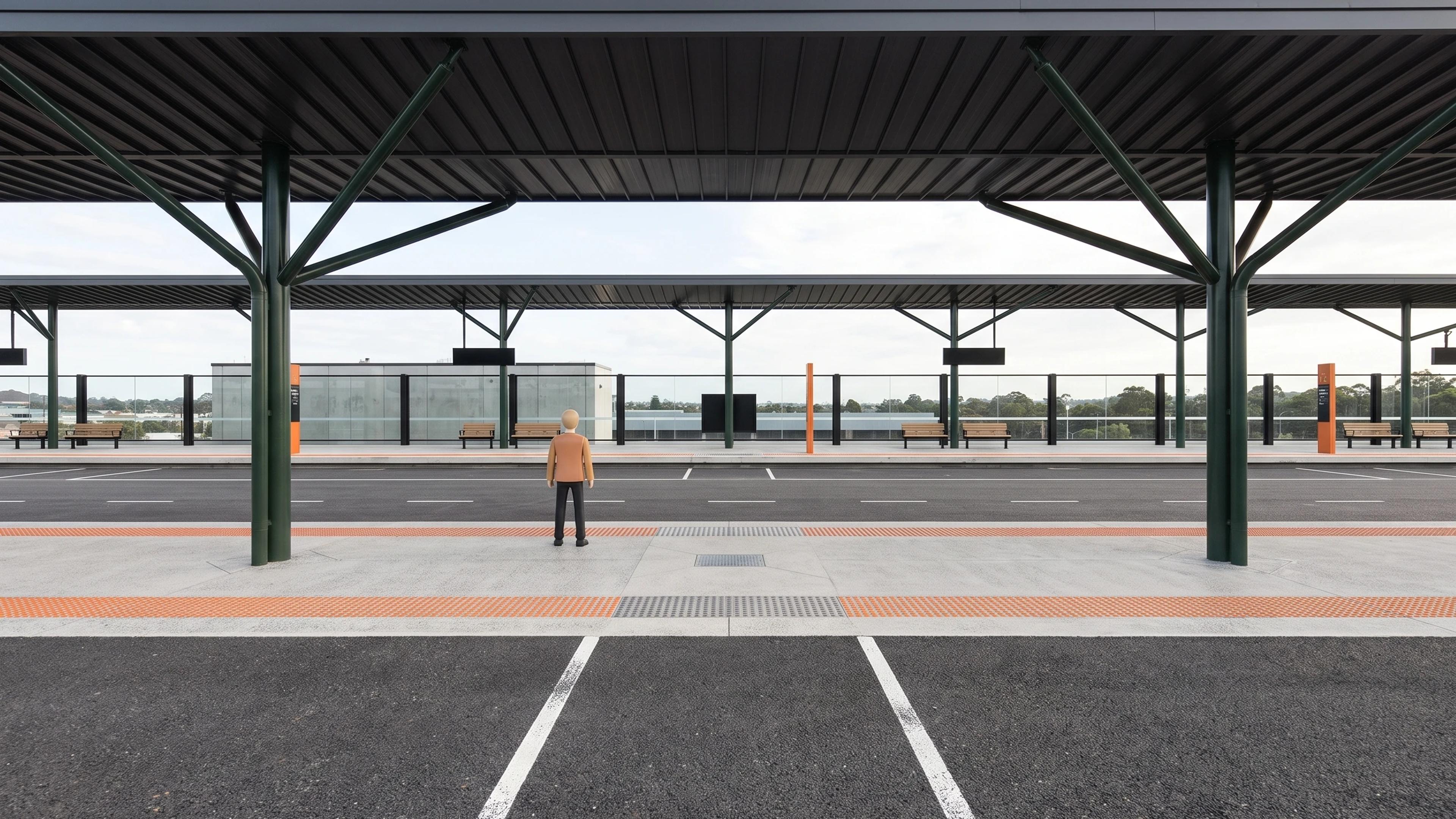

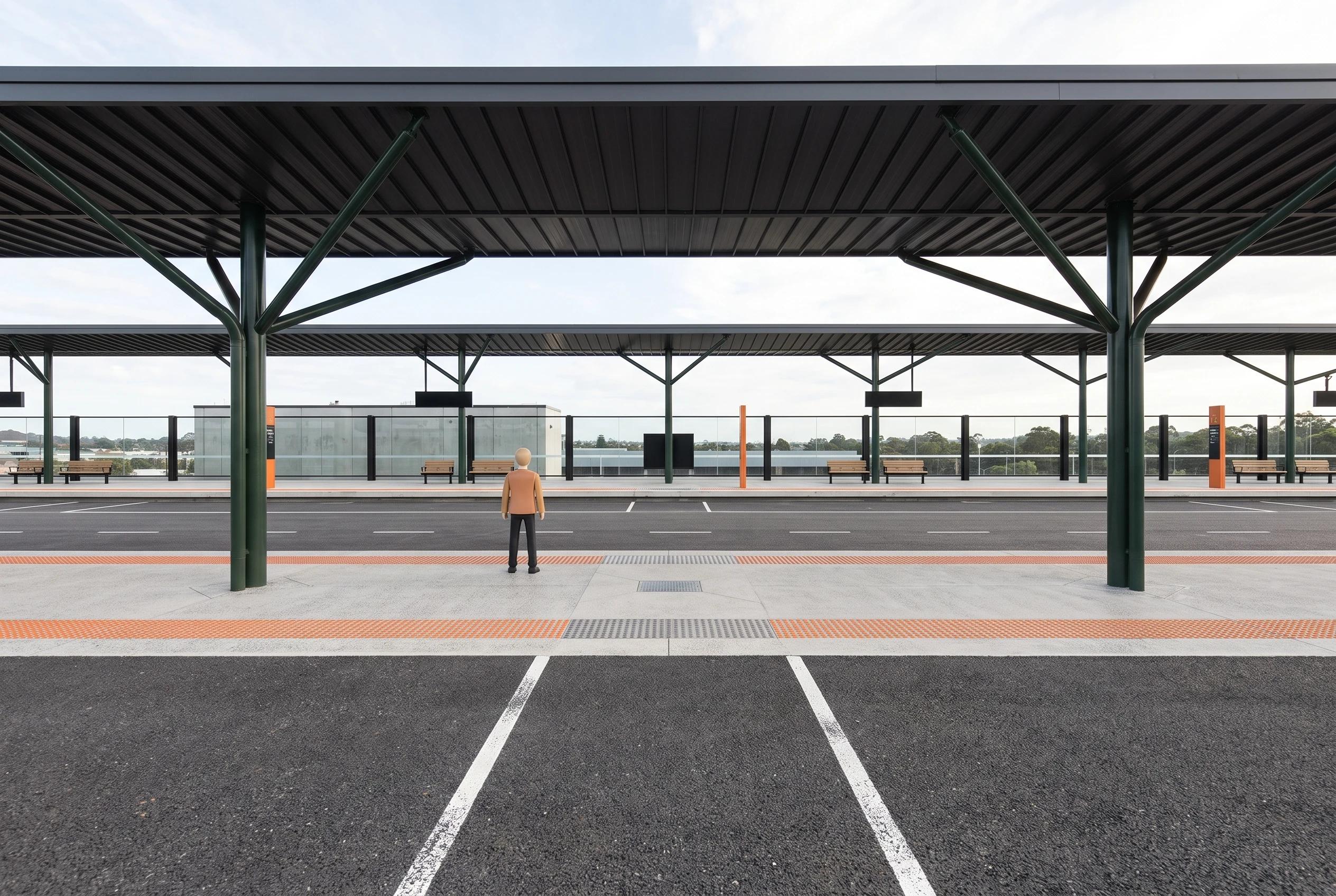

The template ships with 4 saved scenes: a street-level approach, 2 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
