Outdoor structures, detailed deck + pergola + tensioned shade

A 2-level outdoor structures, detailed deck + pergola + tensioned shade template with a 24 × 16 m footprint and 4.1 m overall height. The model includes 3 variants, 102 deck boards, 42 deck joists, 3 stair flights.

Three 6 × 5 m decks at 0.75 m, with 450 mm joist centres, 140 mm boards and 6 mm joints. All framing is physically modelled below the board surface.

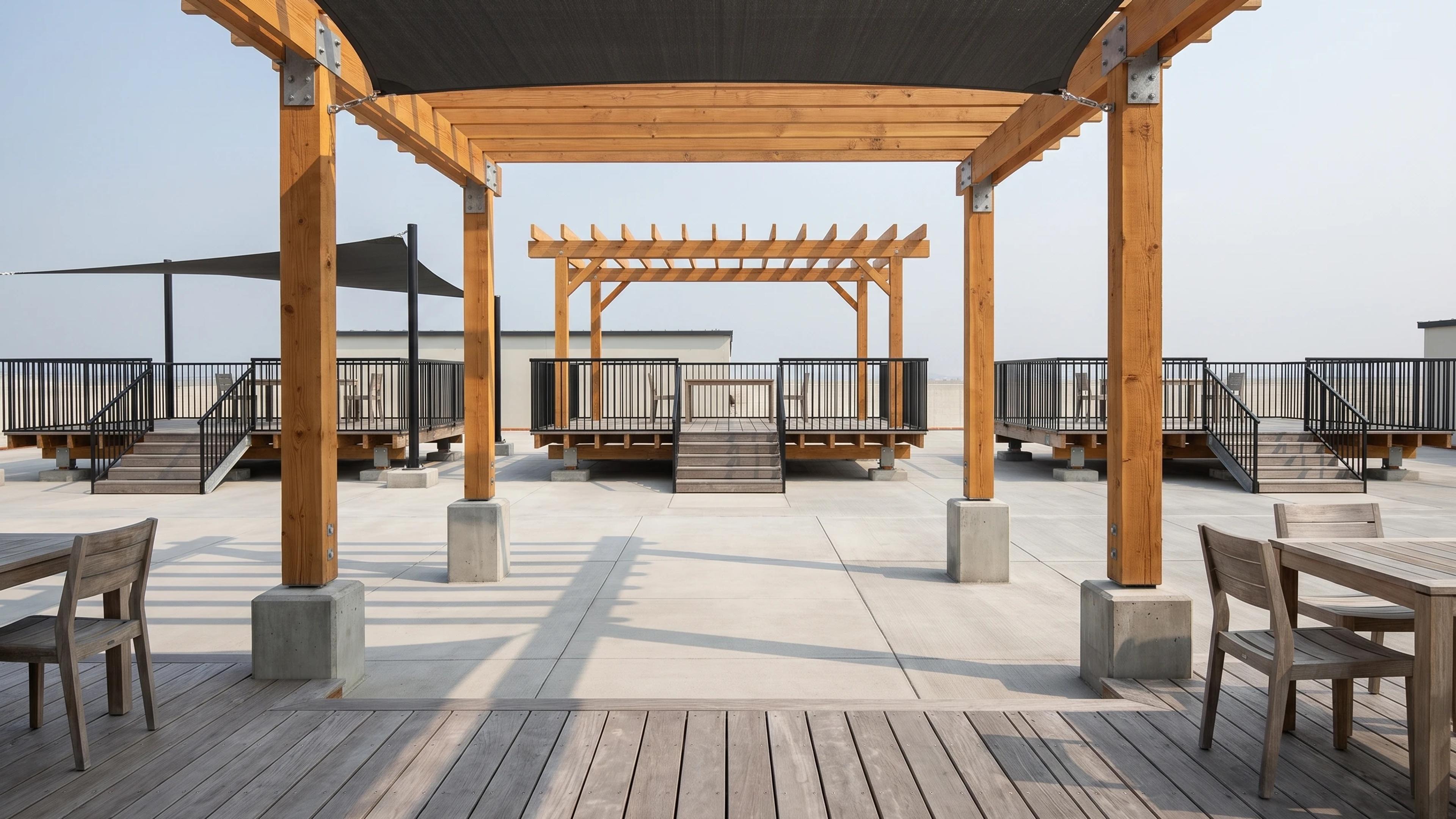

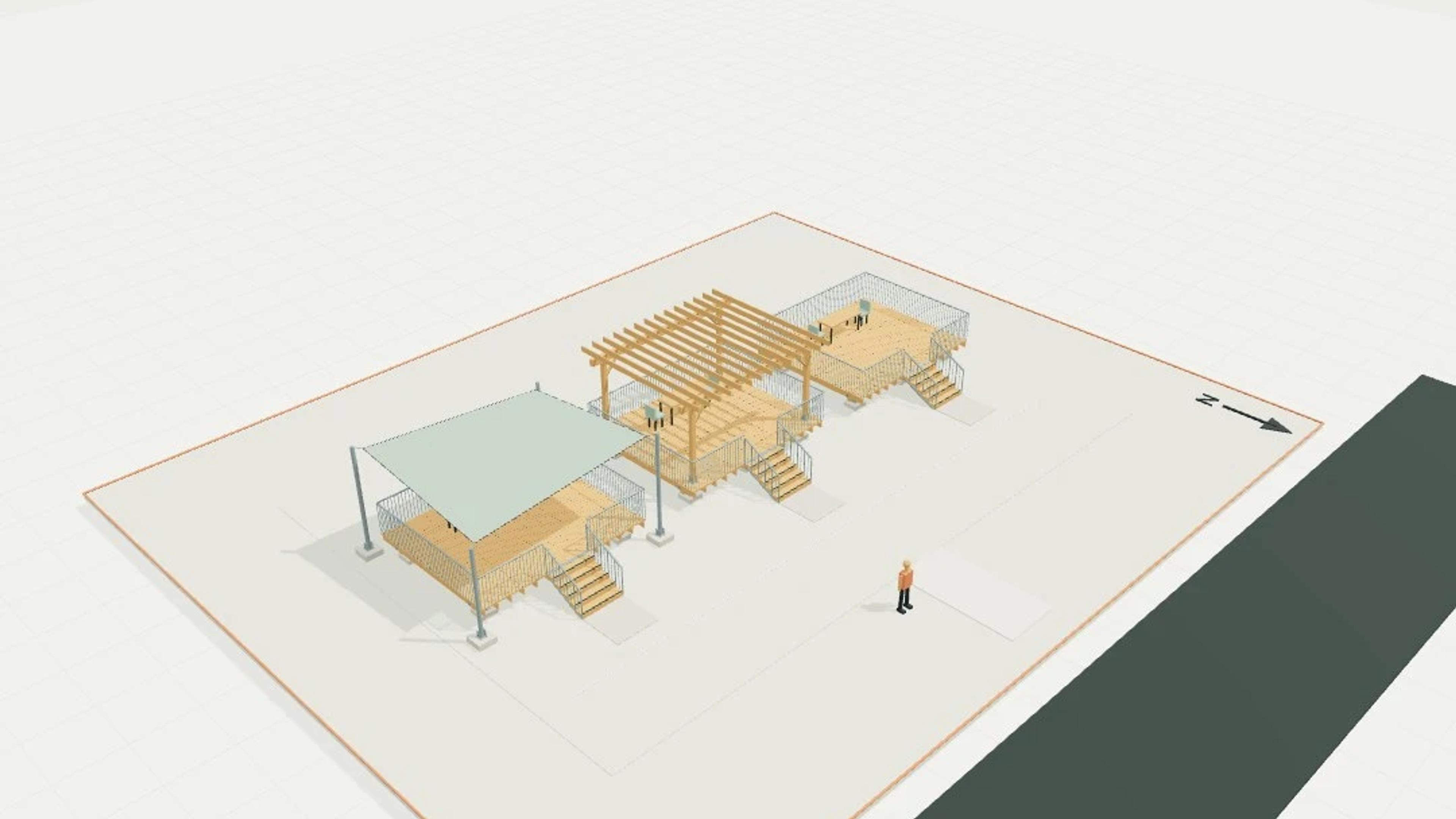

The template ships with 6 saved scenes: a street-level approach, 4 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
