Covered equestrian arena + six ventilated stables
A single-level covered equestrian arena + six ventilated stables template with a 36 × 44 m footprint and 9 m overall height. The model includes 24 arena nominal width, 44 arena nominal depth, 23.6 clear riding width, 43.6 clear riding depth, 6 stables, 1 tack rooms, 1 wash bays, 2 ventilation sides.
Arena dimensions, six 3.6 m stalls and circulation clearances are nominal original design choices. No competition, equine welfare, ventilation-rate or structural suitability is certified.

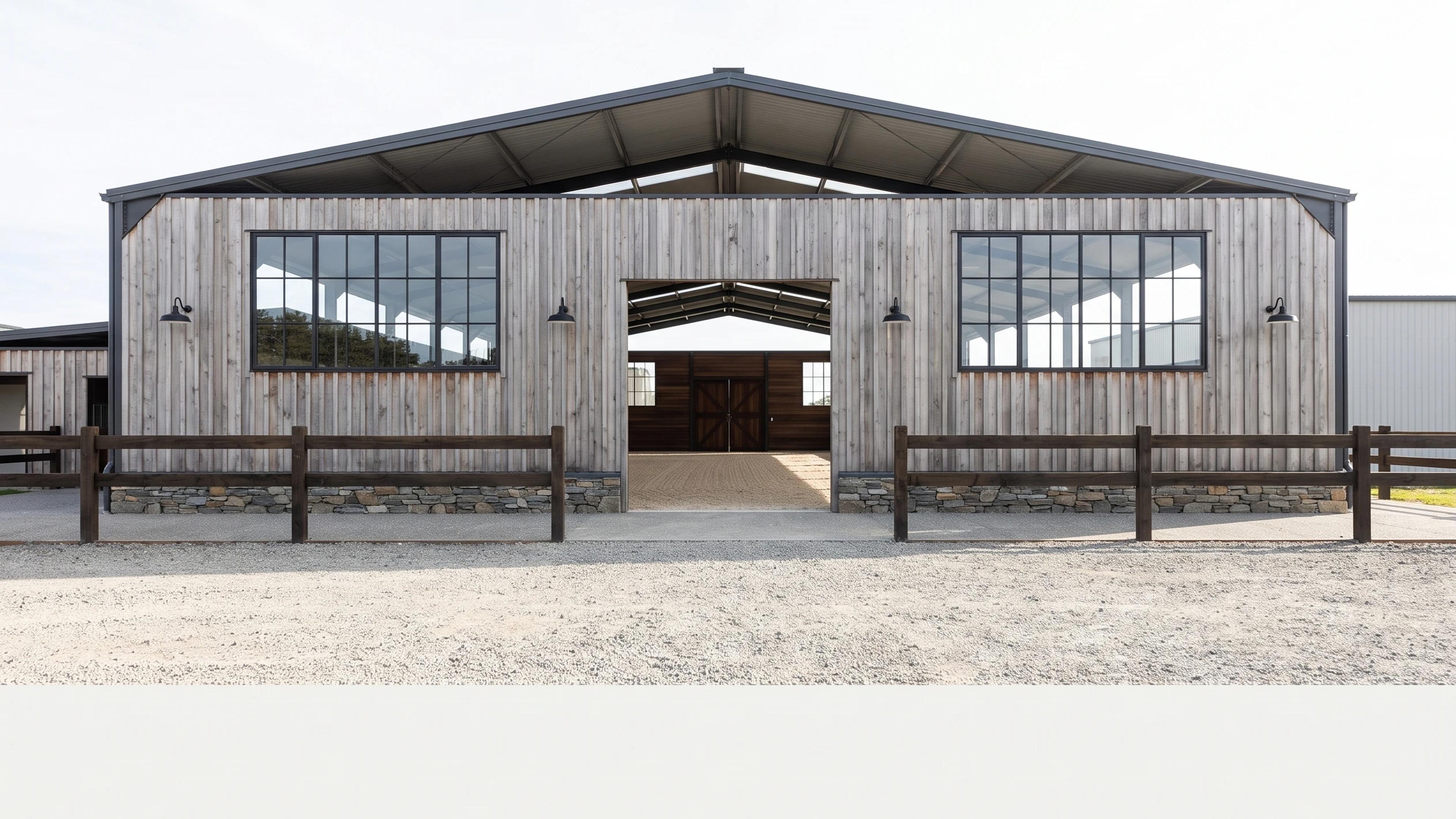

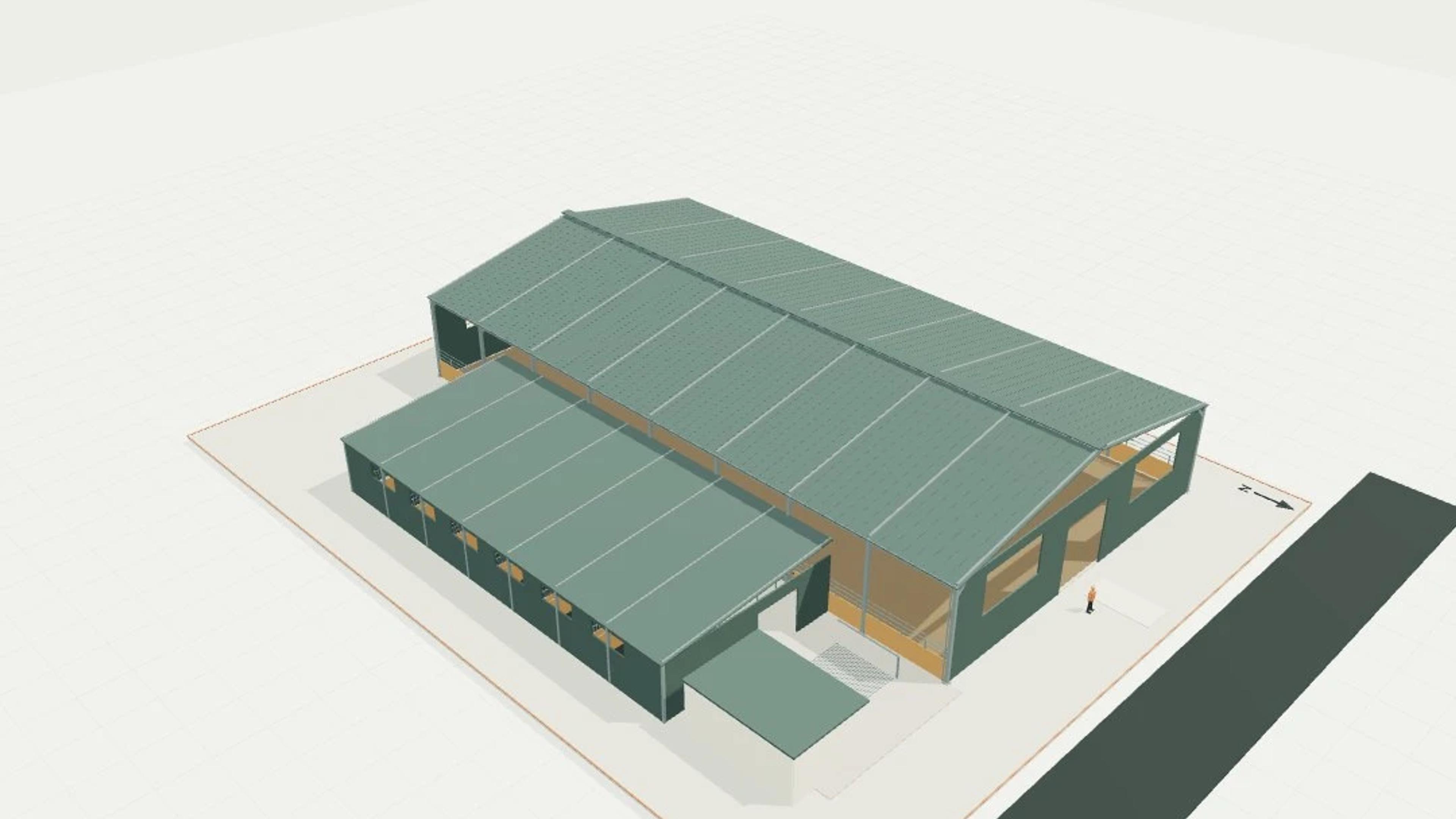

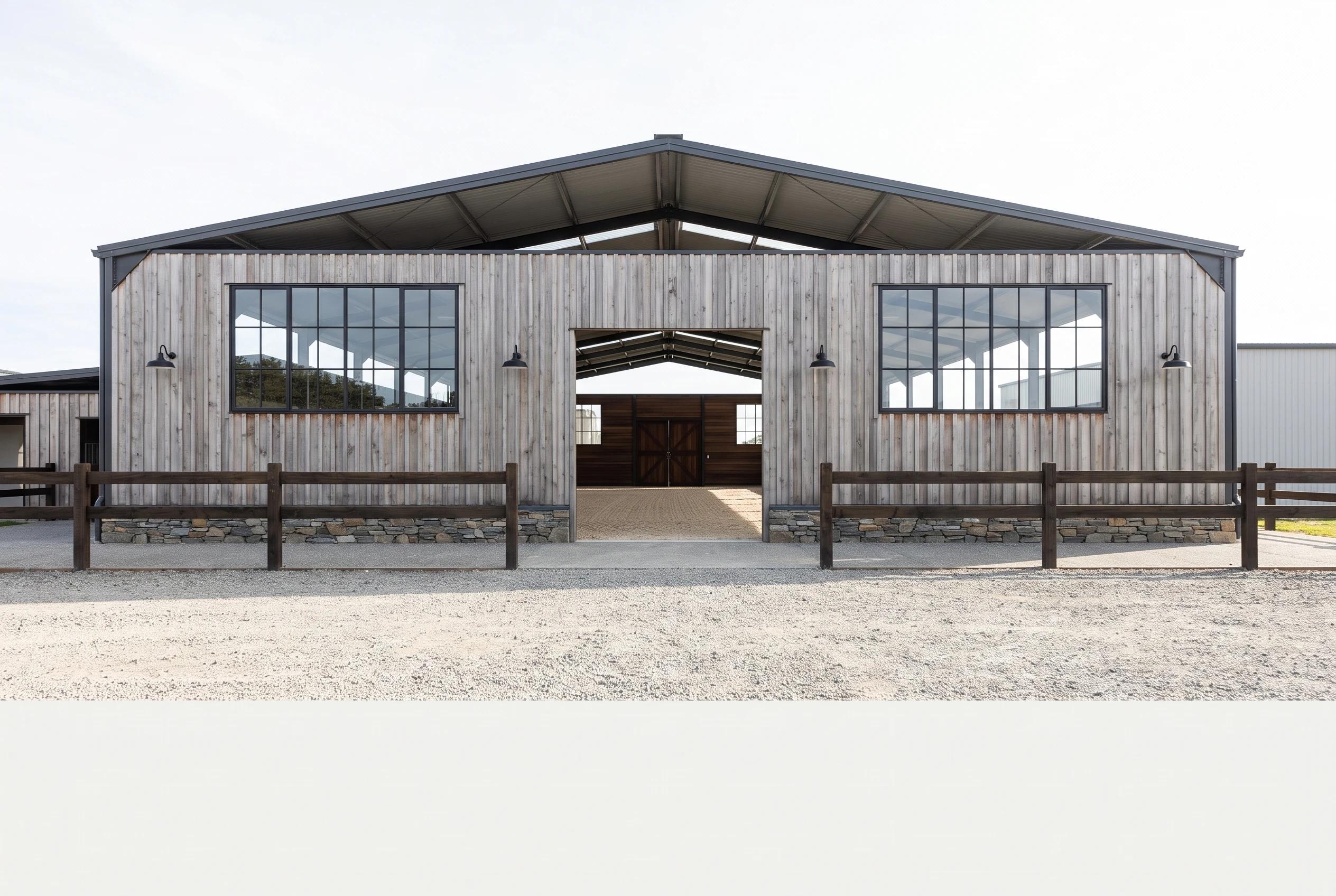

The template ships with 4 saved scenes: a street-level approach, 2 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
Size | 36 × 44 m, 1 level |
Program | 24 arena nominal width, 44 arena nominal depth, 23.6 clear riding width, 43.6 clear riding depth, 6 stables, 1 tack rooms, 1 wash bays, 2 ventilation sides |
Scenes | 4 saved views: street, 2 model views, aerial |
