Foundations, five excavated section specimens

A single-level foundations, five excavated section specimens template with a 18 × 18 m footprint and 3.5 m overall height. The model includes 5 variants.

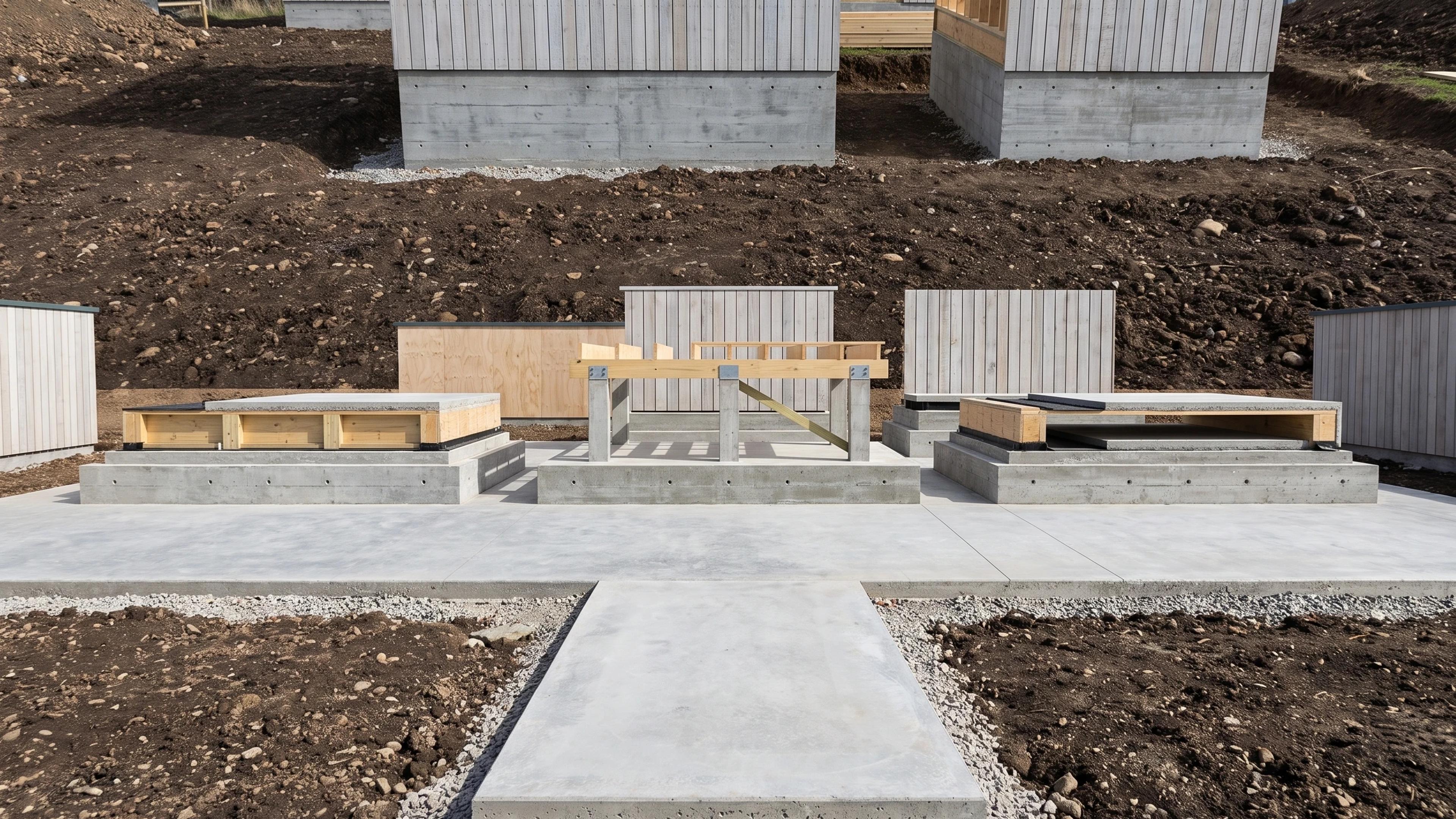

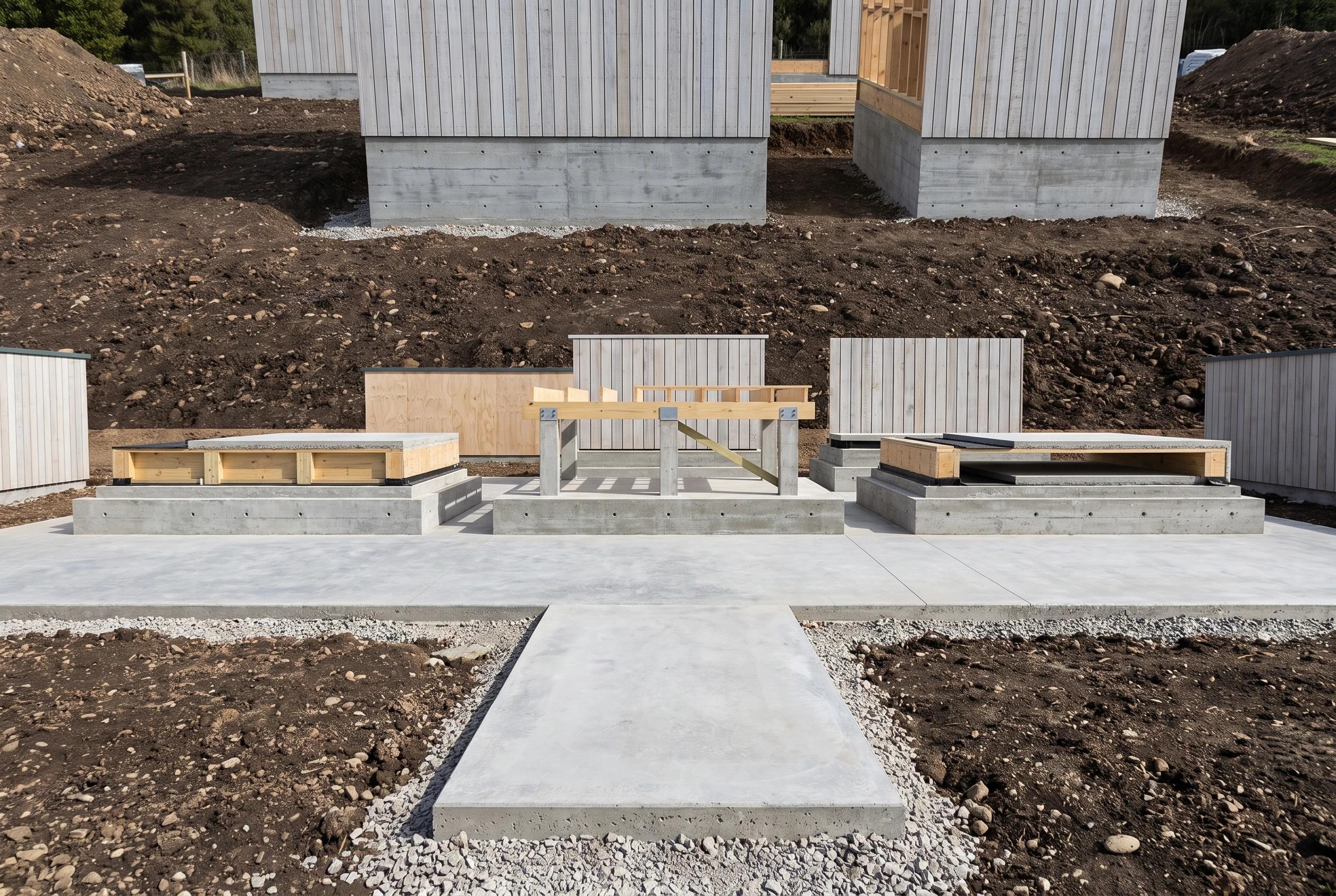

Foundation specimens are raised on exhibit bases so subgrade layers remain visible. Soil bearing, pile capacity, groundwater, reinforcement design and seismic actions remain unverified.

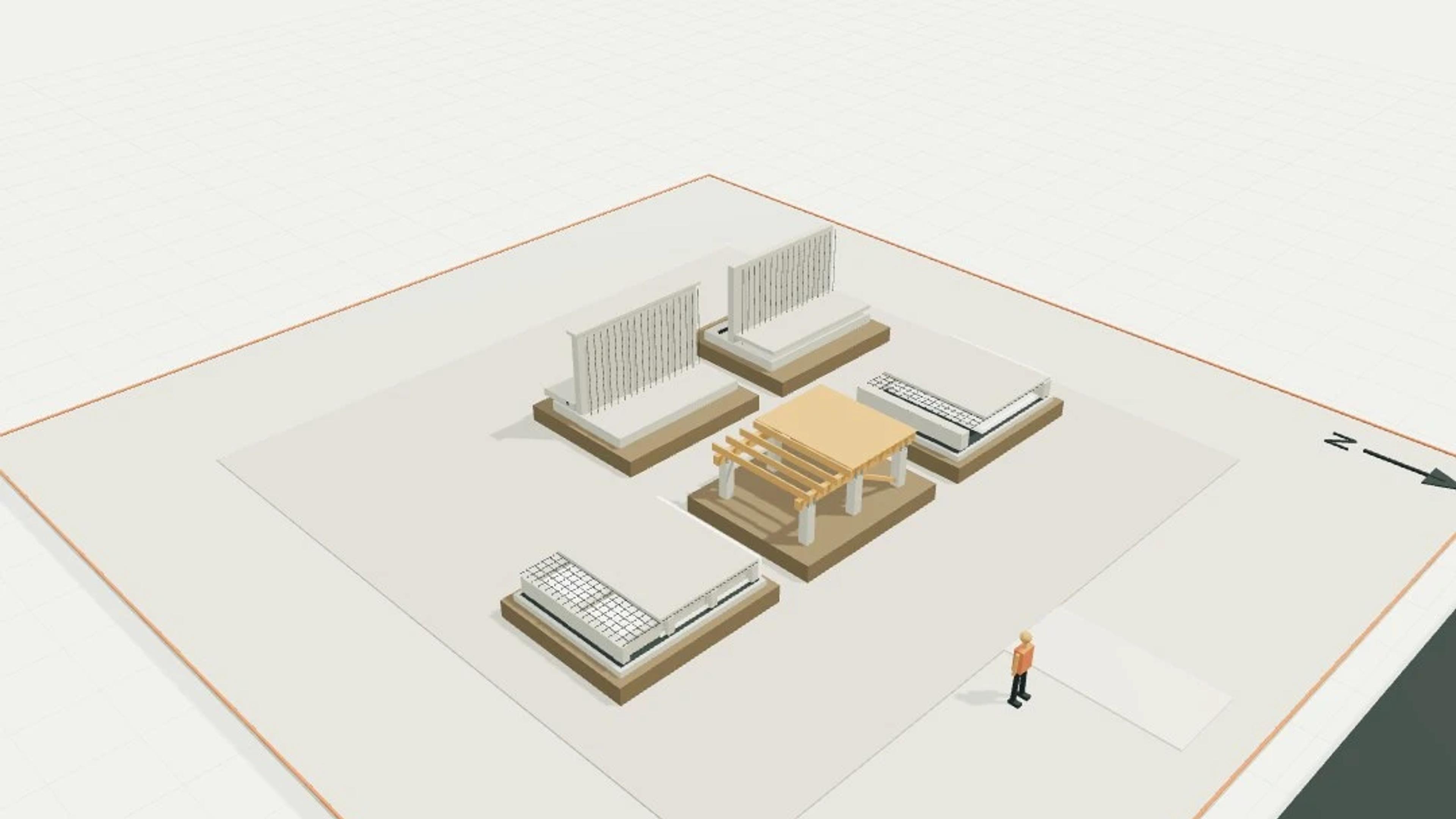

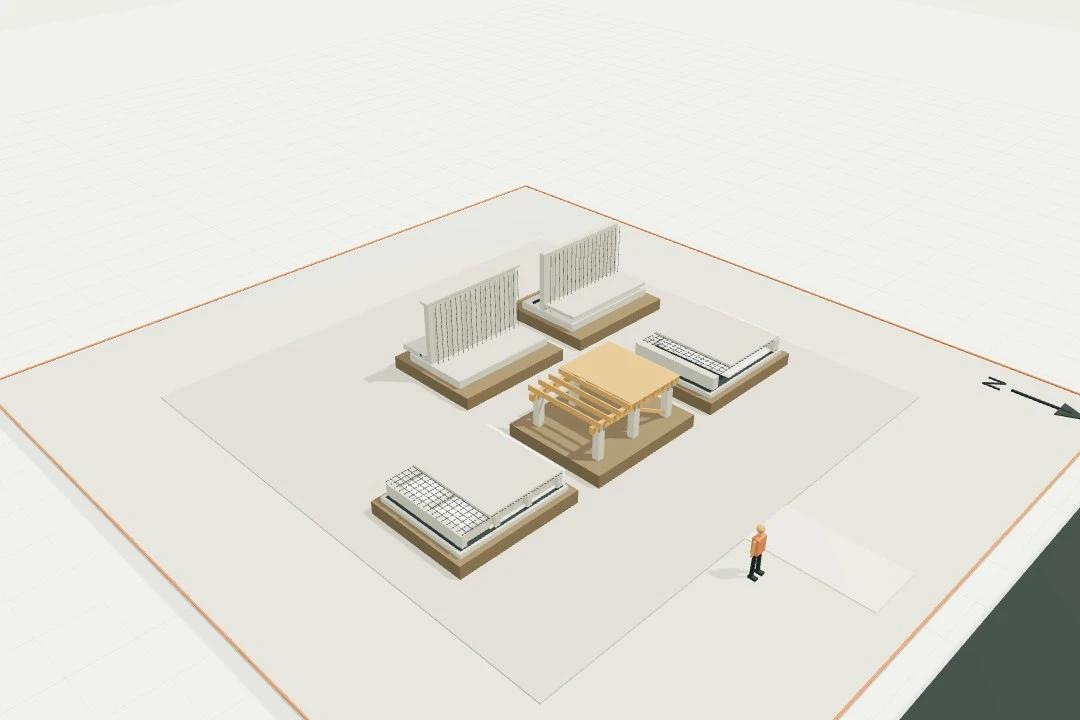

The template ships with 4 saved scenes: a street-level approach, 2 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
