London Aquatics Centre

London Aquatics Centre in London, United Kingdom, by Zaha Hadid Architects, rebuilt as an approximate visual BIM model from 4 published architectural references. The building measures 80 × 168 m on plan and 29 m tall, across 3 named levels: Pool deck and competition pools, Permanent spectator stands, Wave roof.

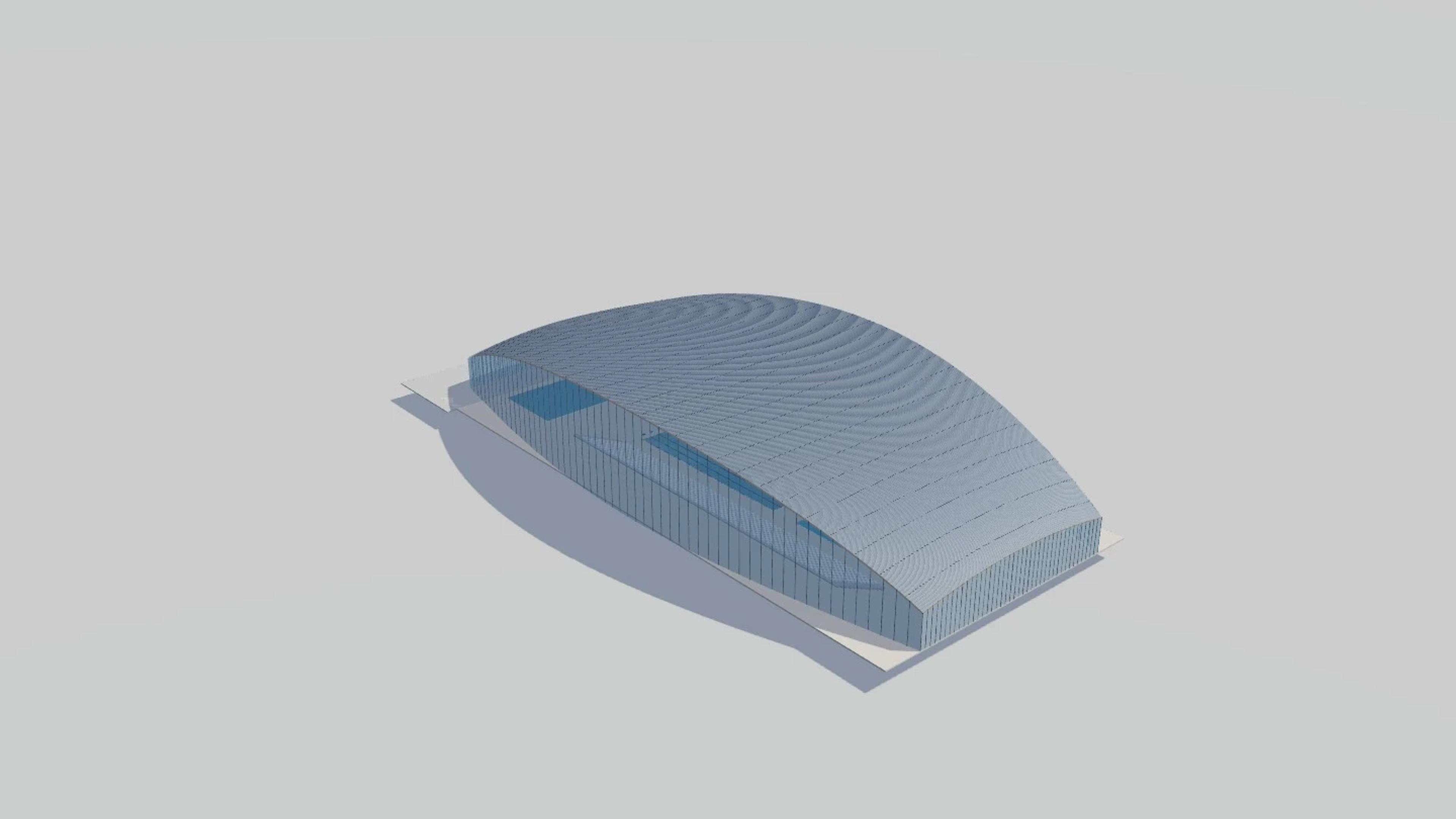

Modelled detail includes continuous doubly curved wave roof, low overhanging entrance end and tall transparent side arches.

The template ships with 6 saved scenes — a street-level approach, 4 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at London E20 2AQ, UK, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
