Quay Quarter Tower

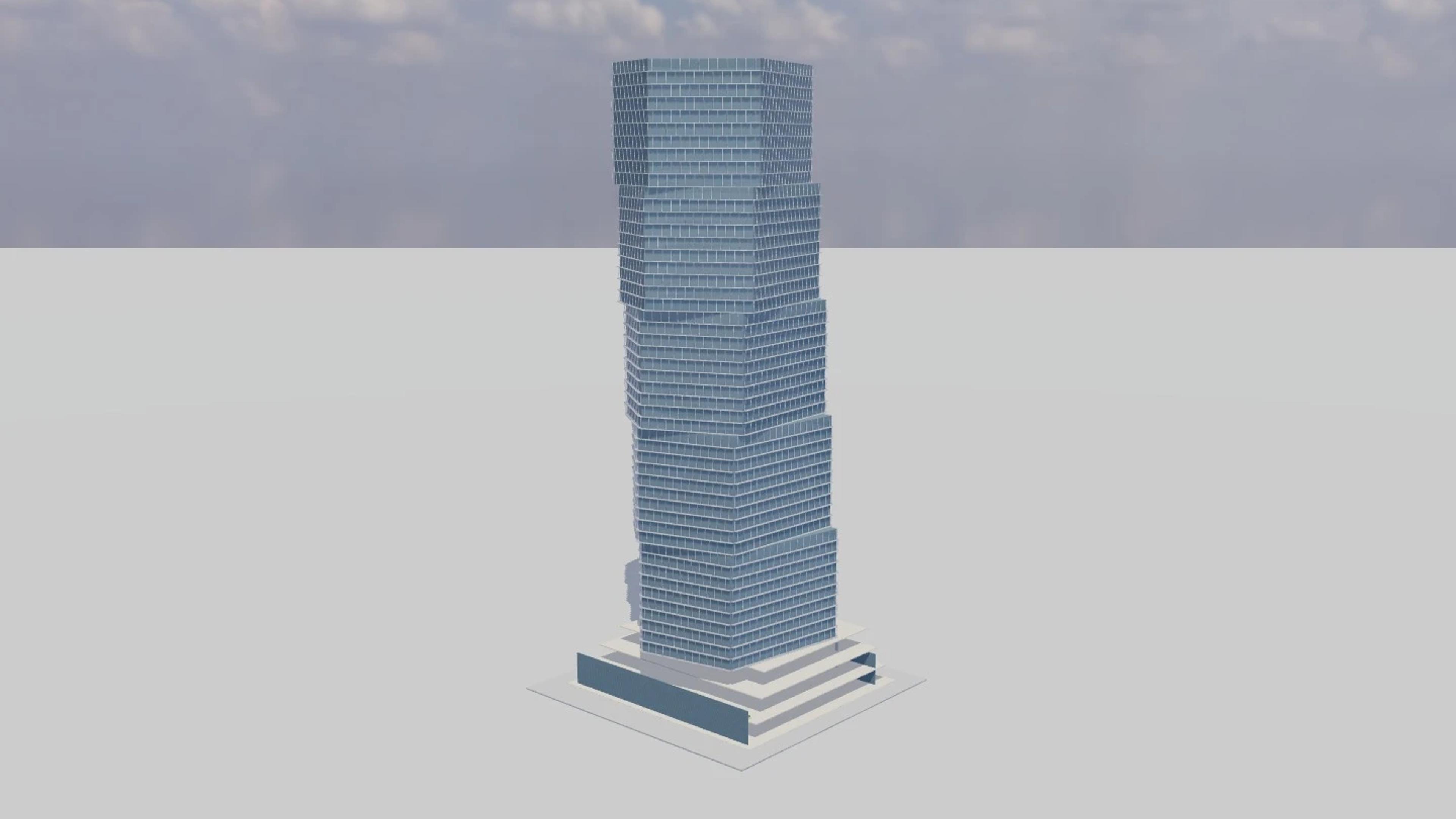

Quay Quarter Tower in Sydney, Australia, by 3XN with BVN, rebuilt as an approximate visual BIM model from 3 published architectural references. The building measures 85 × 87 m on plan and 206 m tall, across 6 named levels: Public podium and lobby, Stacked volume 1, Stacked volume 2, Stacked volume 3, Stacked volume 4, Stacked volume 5.

Modelled detail includes five stacked offset trapezoidal workplace volumes, direction-changing projecting facade frames and northern atrium voids and representative spiral stairs.

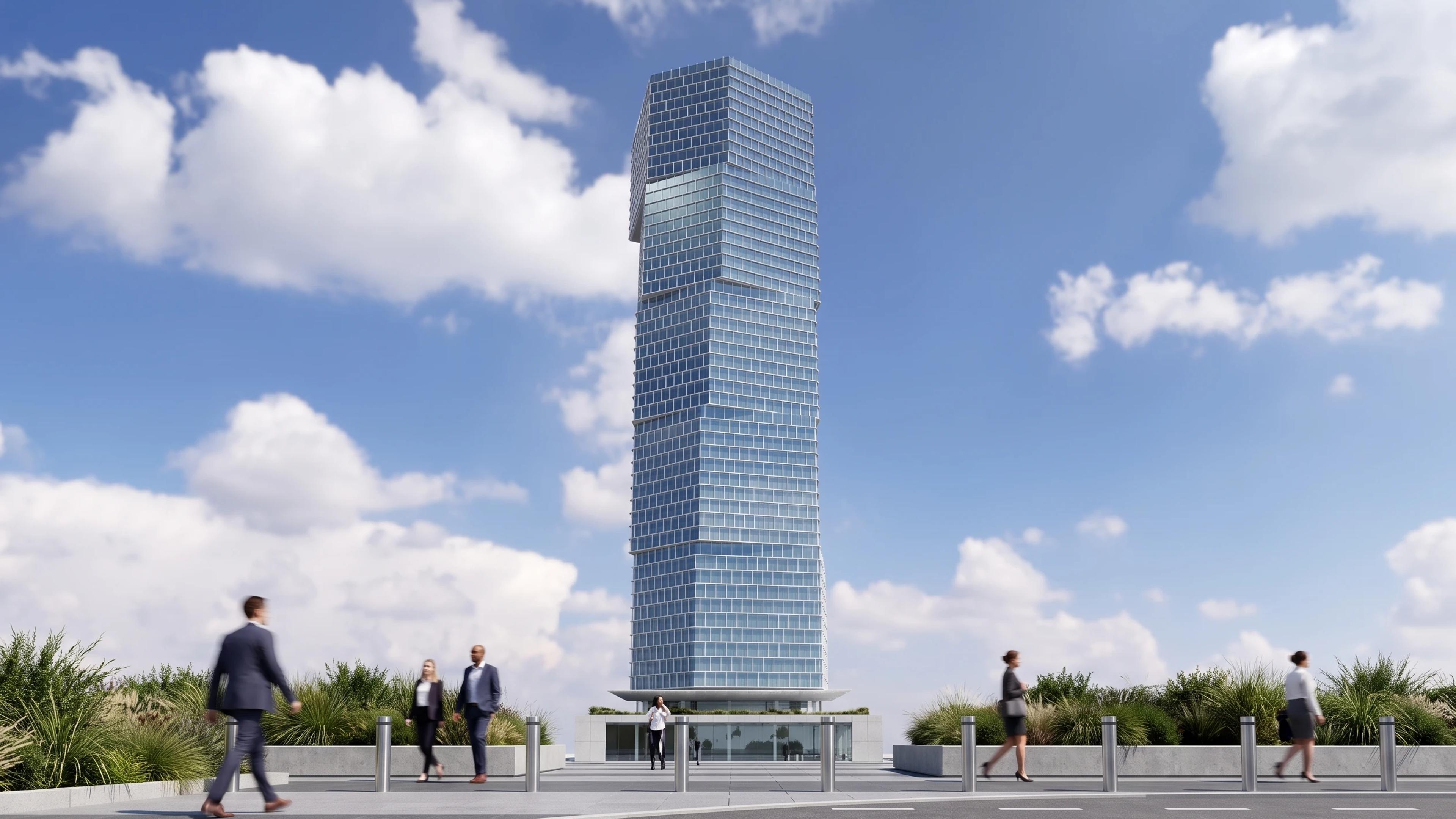

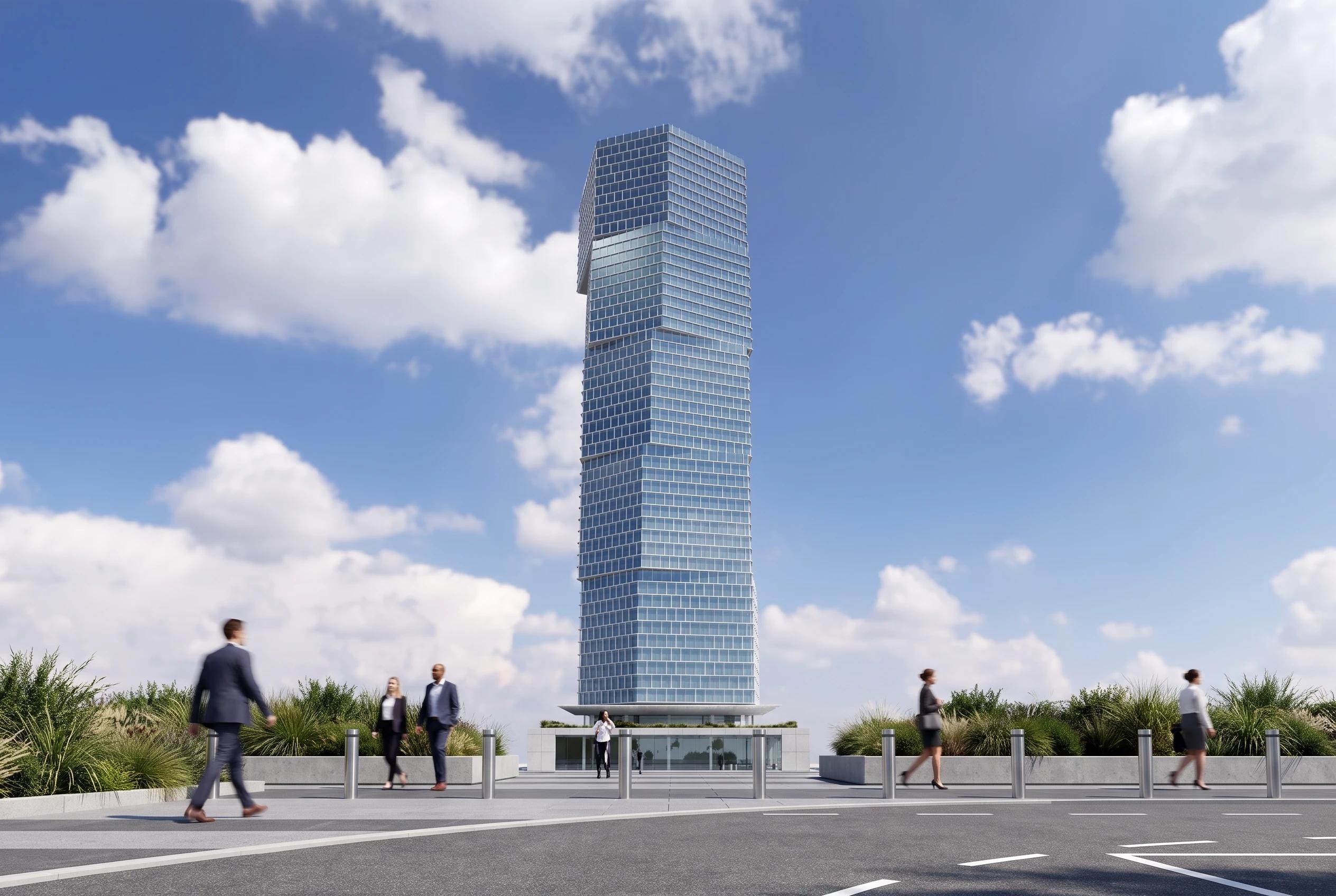

The template ships with 5 saved scenes — a street-level approach, 3 viewpoints from the building's own observation set, and an aerial three-quarter — and carries the real site at 50 Bridge St, Sydney NSW 2000, Australia, so map context and sun angles line up when you open it. It is an approximate visual reconstruction for design and presentation use, not a measured survey, certified BIM, engineering model or construction document.
