Café services layer

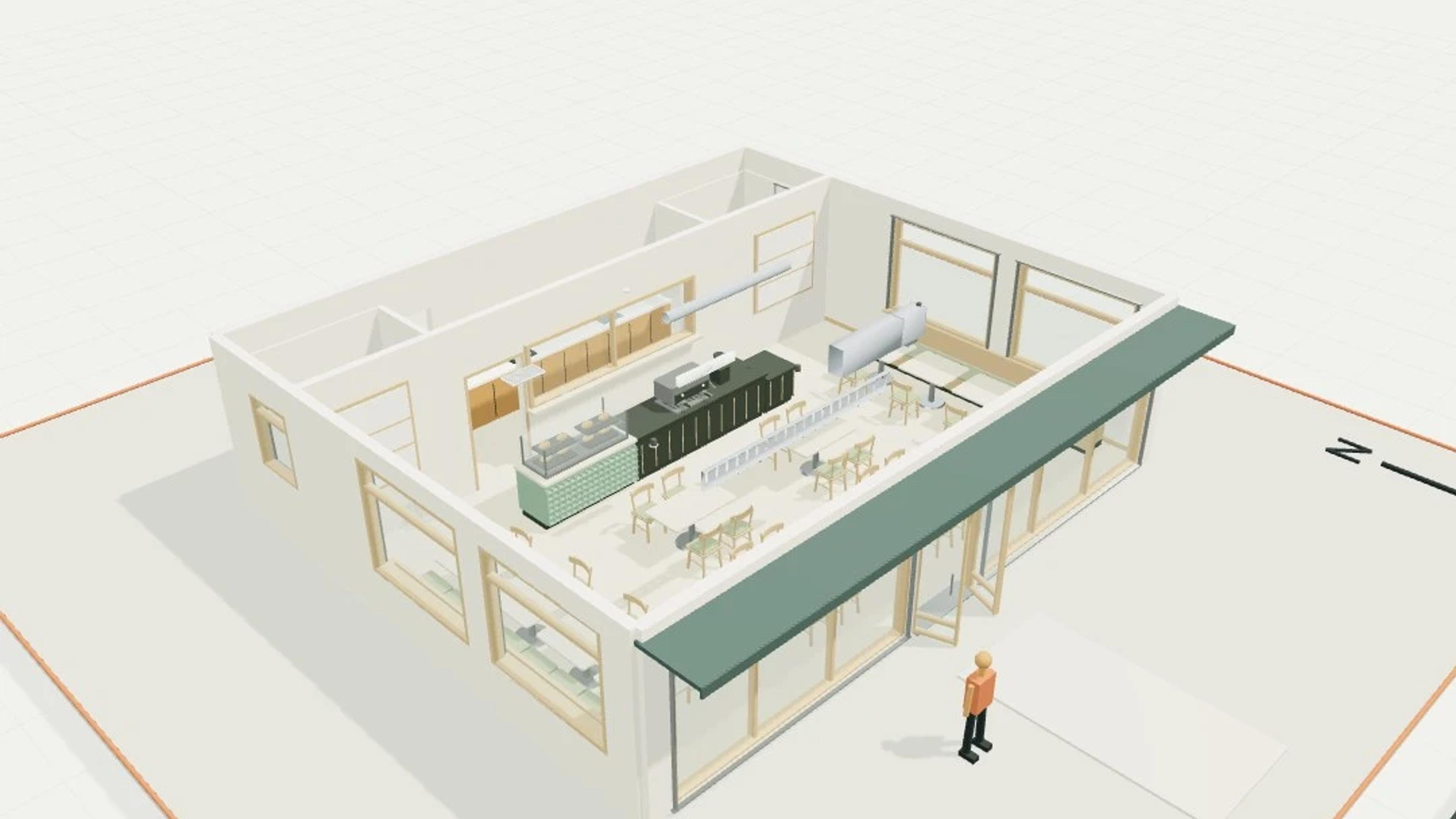

Café services layer is an M5 showcase built from real Harth library objects: 15 parameterised instances of 11 distinct objects, with 1 authored joint recorded between their connectors. The background is authored geometry — a 12 × 10 m inspection floor with context massing, a north point and a 1.7 m scale figure — so every services item in the scene is a live, editable library instance rather than fixed mesh.

Open it and the services objects keep their parameters and connector metadata, so the agent can inspect, check and correct them. 18 connectors are deliberately left open.

Original reference-informed typology; no survey or measured replica.

Dimensions and fitout are inferred from the master brief; local +X is right, +Y up, +Z rear; floor datum 0 m.

120 m² nominal footprint; 40 individual dining places comprise 16 banquette places and 24 loose chairs. Furnished circulation and details are original design choices, not a reconstruction of Pan.

The 6 m servery includes a lower pickup end, coffee worktop and pastry-display bay. Equipment, construction joints and fabric baffles are schematic; accessibility, catering fitout and fire performance are not certified.

Real library geometry and parameters are retained. GLB and IFC are static inspection mirrors; use the placement package to create editable Harth library instances.

No routing solver or persisted connection graph is claimed. The documented port pairs are authored joints, and every unused port is listed.

Nominal design geometry; no engineering rating, code compliance, horticultural suitability or cadastral accuracy is claimed.

Try these prompts with the agent:

Compare this café with its linked host template; hide the services layer to inspect the retained fit-out.

Check the recorded VAV-to-duct joint and identify the deliberately unfinished distribution endpoints.

Check ceiling coordination between ducts, tray, downlights and sprinklers; report geometric evidence separately from design adequacy.

Replace one diffuser with a suitable library terminal after inspecting its connector; reconnect explicitly.
