Site envelope, nominal setbacks and recession planes

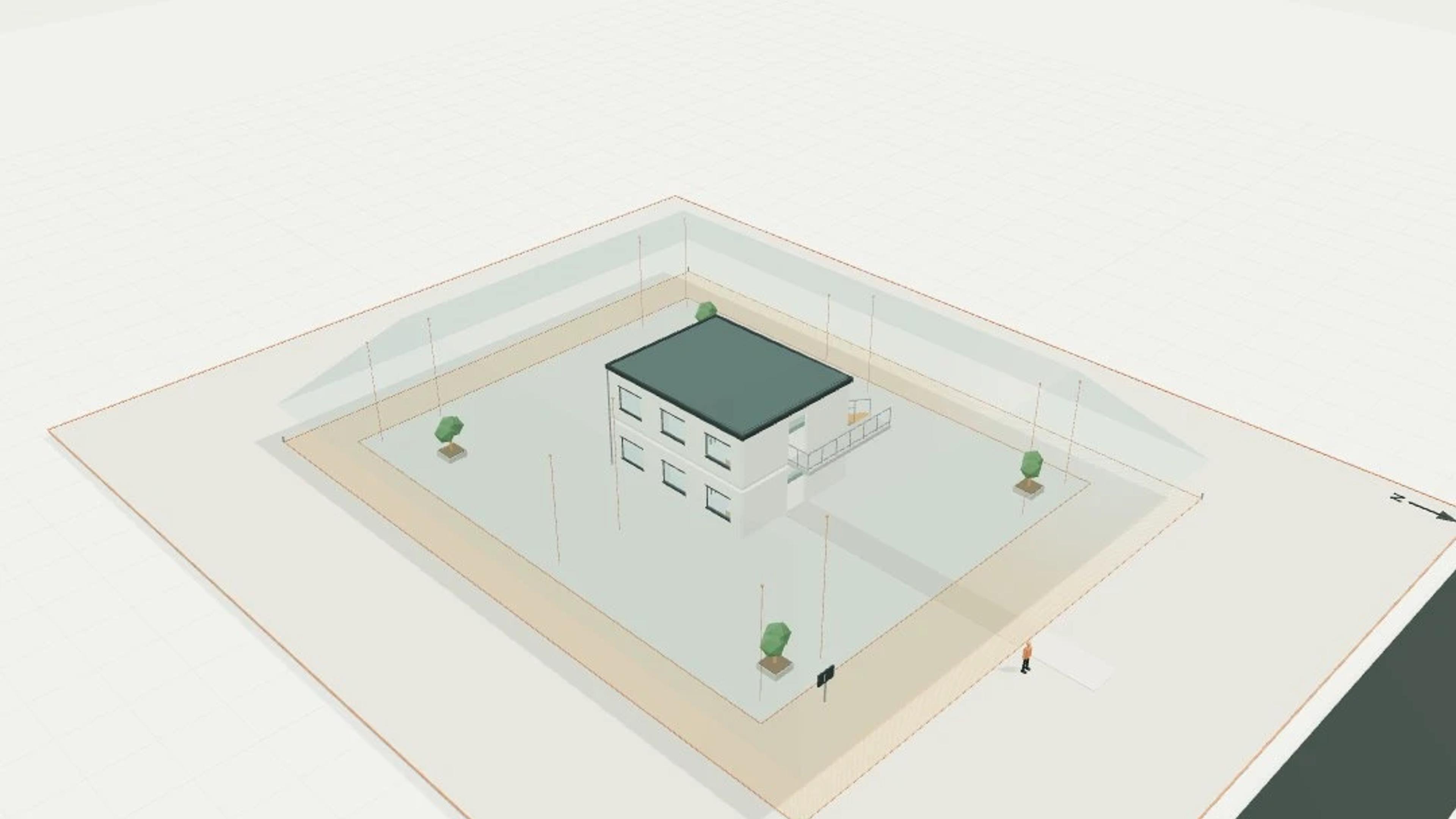

A 2-level site envelope, nominal setbacks and recession planes template with a 42 × 52 m footprint and 9 m overall height. The model includes 1 study sites, 2 dwellings, 4 rule planes.

All setback, boundary-start, recession and height values are hypothetical inputs, not Auckland or Christchurch planning rules. The plot is an original 32 × 40 m parcel with two stacked 80 m² dwellings.

The template ships with 5 saved scenes: a street-level approach, 3 interior views and an aerial three-quarter, plus a site pad with neighbouring context massing, a north point and a 1.7 m scale figure, so you can render or edit from any of them straight away. Dimensions are nominal metric starting points informed by published precedents; it is an original design, not a survey.
