Diaphragm: Building Code Definition
How the IBC 2009, IRC 2009 define diaphragm, where the wording differs, and which chapters depend on the term.
On this page
Last updated September 7, 2026 · Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The [ICC code library](https://codes.iccsafe.org/codes) publishes the current model text and the [ICC adoption maps](https://www.iccsafe.org/advocacy/code-adoption-maps/) show which edition a jurisdiction has adopted; those sources control.
Direct answer
Diaphragm is a defined term in the International Building Code (IBC) 2009, in Structural Design. The code's own words are: “A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems.” The IRC 2009 defines the same term with different wording, so the controlling text depends on which code governs the question in front of you — the comparison below sets the versions side by side. The term is used in 16 chapters of this corpus, most often in Wood (IBC 2009), Structural Design (IBC 2009), Structural Tests and Special Inspections (IBC 2009). These pages transcribe the 2009 model text; verify the definition against the edition and amendments your authority having jurisdiction has adopted.
Content and cited inputs reviewed by Scott Barrington, Harth founder and architectural technology specialist · Published 2026-09-07 · Updated 2026-09-07.
What does this term mean?

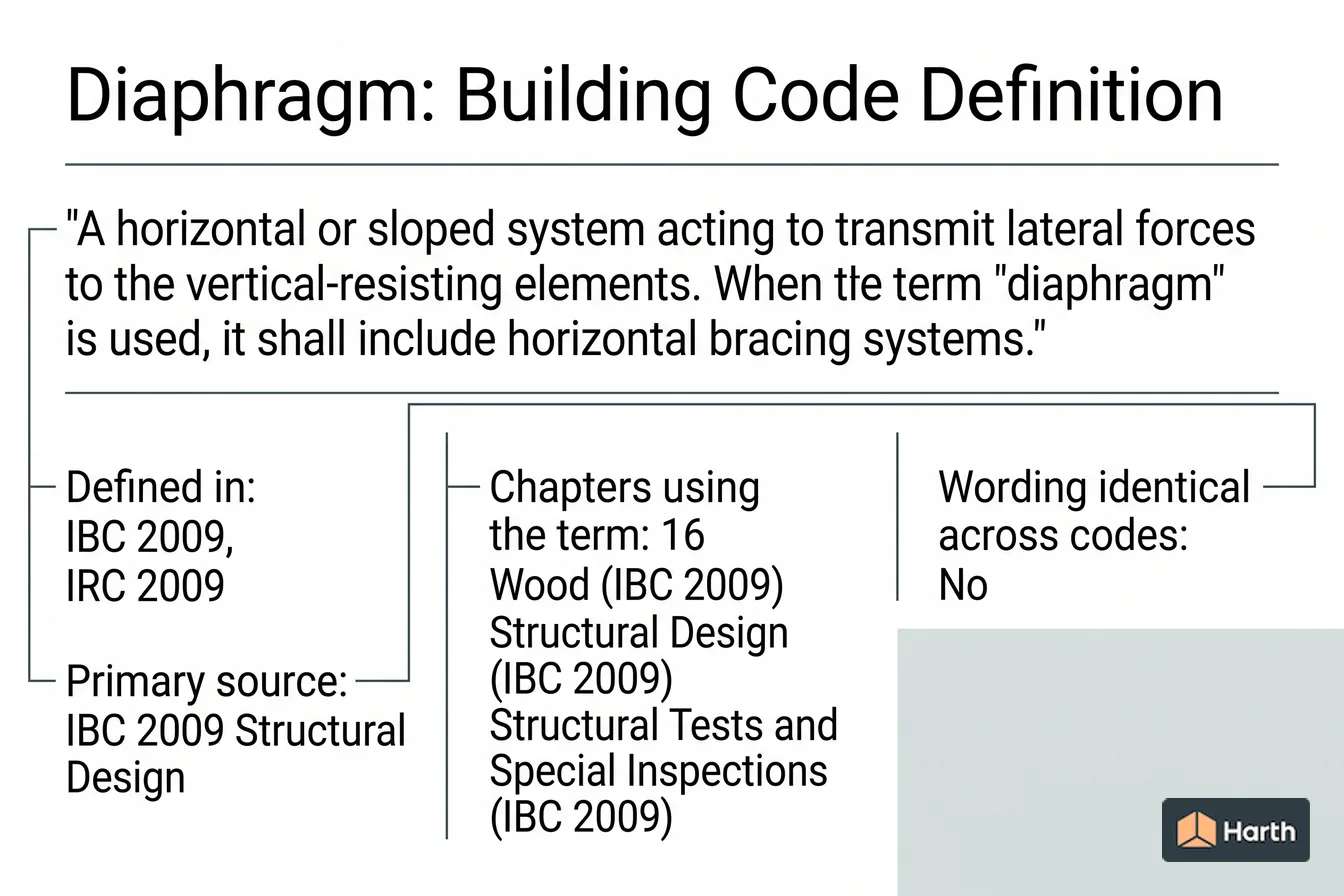

Diaphragm — IBC 2009, Structural Design:
A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems.
What must be verified before using this guidance?
Two of the I-Codes in this corpus define Diaphragm, and the wording is not identical — read the version that governs your question.
| Code | Where it is defined | Definition |
|---|---|---|
| IBC 2009 | Structural Design | A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems. |
| IRC 2009 | Definitions | A horizontal or nearly horizontal system acting to transmit lateral forces to the vertical resisting elements. When the term "diaphragm" is used, it includes horizontal bracing systems. |
Where diaphragm is used in the code
The term appears in 16 chapters of the 2009 I-Codes hosted here. The chapters that lean on it hardest are the ones to read next.
| Chapter | Code | Mentions |
|---|---|---|
| Wood | IBC 2009 | 59 |
| Structural Design | IBC 2009 | 48 |
| Structural Tests and Special Inspections | IBC 2009 | 29 |
| Wall Construction | IRC 2009 | 27 |
| Roof-ceiling Construction | IRC 2009 | 24 |
| Gypsum Board and Plaster | IBC 2009 | 20 |
| Definitions | IBC 2009 | 14 |
| Wall Covering | IRC 2009 | 8 |
| Fuel Gas | IRC 2009 | 4 |
| Soils and Foundations | IBC 2009 | 3 |
| Flammable Gases and Flammable Cryogenic Fluids | IFC 2009 | 3 |
| Water Supply and Distribution | IPC 2009 | 3 |
4 further chapters mention the term.
The term in use
How the code actually writes about diaphragm, quoted from the 2009 text hosted here:
The deflection (Δ) of a blocked wood structural panel diaphragm uniformly fastened throughout with staples is permitted to be calculated by using the following equation.
Masonry walls shall be anchored to floor diaphragm framing by metal strap anchors spaced in accordance with the manufacturer's instructions, 1/z-inch-diameter (13 mm) bolts spaced at intervals not to exceed 6 feet (1829 mm) and installed as shown in Figure R606.11 (1), or by other approvedmethods.
At gable endwalls a ceiling diaphragm shall be provided by attaching a minimum ½-inch (12.7 mm) gypsum board in accordance with Tables R804.3.8(1) and R804.3.8(2) or a minimum ⅜-inch (9.5 mm) wood structural panel sheathing, which complies with Section R803, in accordance with Table R804.6(3) to the bottom of ceilingjoists or roof trusses and connected to wall framing in accordance …
The terms diaphragm is built out of
The definition above leans on 2 other defined terms. Each carries its own code definition, and a local amendment to any of them changes what diaphragm covers:
- System — IFC 2009: An assembly of equipment consisting of a tank, container or containers, appurtenances, pumps, compressors and connecting piping.
- Shall — IRC 2009: The term, when used in the code, is construed as mandatory.
Diaphragm: what to open, and in what order
Every row is a document this term depends on. The ICC code library and the ICC adoption maps cover the middle rows.
| Check | Where | Confirmed |
|---|---|---|
| Read the definition in the adopted IBC | Structural Design | |
| Read the definition in the adopted IRC | Definitions | |
| Re-check the requirement that uses it | Wood (IBC 2009) | |
| Re-check the requirement that uses it | Structural Design (IBC 2009) | |
| Re-check the requirement that uses it | Structural Tests and Special Inspections (IBC 2009) | |
| Re-check the requirement that uses it | Wall Construction (IRC 2009) | |
| Confirm the dependent definition | System | |
| Confirm the dependent definition | Shall | |
| Local amendment to any of the above | Jurisdiction's amendment list |
A research aid, not a code determination. The authority having jurisdiction decides which edition and which amendments apply.
Where can you explore related guidance?
- Explore all glossary guidance
- System: Building Code Definition
- Design Flood Elevation: Building Code Definition
- Loads: Building Code Definition
- Seismic Design Category: Building Code Definition
Sources and method
Definitions quoted from the 2009 International Codes as transcribed in this site's building-codes collection, with the source chapter linked for each quotation. Usage counts are computed over the chapters hosted here, one copy per code. The ICC code library publishes the current model text and the ICC adoption maps show which edition a jurisdiction has adopted; those sources control.
Source links
Frequently asked questions
What is the code definition of diaphragm?
The International Building Code (IBC) 2009 defines it in Structural Design as: “A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems.” The 2009 model text is reproduced here; the definition that binds your project is the one in the edition your jurisdiction has adopted, as amended locally.
Which parts of the code depend on diaphragm?
In this corpus the term is used across 16 chapters, led by Wood in the IBC 2009. Those are the sections whose scope moves if the definition is amended locally, so read them together with Chapter 2 rather than on their own.
What is a diaphragm in a building?
In the 2009 I-Codes hosted here it is a defined term rather than a description. The IBC 2009 states, in Structural Design: “A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems.” It is defined in IBC 2009, IRC 2009. It is not the same as Building, which the IBC 2009 defines separately as “Any structure used or intended for supporting or sheltering any use or occupancy.” Because it is a defined term, whatever the adopted edition says it means is what every section using it means — so check Chapter 2 of that edition and any local amendment before relying on this wording.
What is a simple definition of diaphragm?
In the 2009 I-Codes hosted here it is a defined term rather than a description. The IBC 2009 states, in Structural Design: “A horizontal or sloped system acting to transmit lateral forces to the vertical-resisting elements. When the term "diaphragm" is used, it shall include horizontal bracing systems.” It is defined in IBC 2009, IRC 2009. Because it is a defined term, whatever the adopted edition says it means is what every section using it means — so check Chapter 2 of that edition and any local amendment before relying on this wording.
