Understanding R-Value and U-Factor

Direct answer

R-value and U-factor describe the same thing from opposite ends. R is thermal resistance — higher is better — and U is thermal transmittance, the reciprocal of the total R, so U equals 1 divided by R total and lower is better. Layers in series add: cladding, sheathing, insulation, board and the interior and exterior air films each contribute, and the assembly R is their sum. What breaks the arithmetic is that a framed wall is not one path. Heat also travels through the studs, which have a far lower R than the insulation beside them, so the effective whole-wall R is always below the cavity insulation's nominal figure — and the gap is much wider for steel framing than for wood. Continuous insulation outboard of the framing is the direct answer to that, which is why energy codes increasingly specify it rather than a cavity value alone.

Content and cited inputs reviewed by Harth team · Published 2026-08-14 · Updated 2026-08-14.

What does this term mean?

R-value is a material or assembly's resistance to heat flow, in ft²·°F·h/Btu. U-factor is its reciprocal — the rate of heat transmittance through the whole assembly, in Btu/(h·ft²·°F). Codes set targets in one or the other, and the two are not interchangeable without converting.

Which tested configuration and limitations apply?

R-value measures a material's resistance to conductive heat flow. The higher the R-value, the better the insulator. It's an additive property — layers in series add up.

U-factor (sometimes U-value) measures the rate of heat transfer through a complete assembly per unit area per degree of temperature difference. The lower the U-factor, the less heat passes through. It is the reciprocal of the total R-value:

$$ U = \frac{1}{R_{total}} \qquad R_{total} = \frac{1}{U} $$

So an assembly with a total R of 20 has a U-factor of 0.05; a window with a U-factor of 0.30 has an effective R of about 3.3. By convention, insulation and opaque assemblies are usually discussed in R-values, while windows, doors, and code compliance are usually specified as U-factors.

How assembly R-values combine

For heat flowing straight through layered materials (in series), the R-values simply add:

$$ R_{total} = R_{air,ext} + R_1 + R_2 + \cdots + R_n + R_{air,int} $$

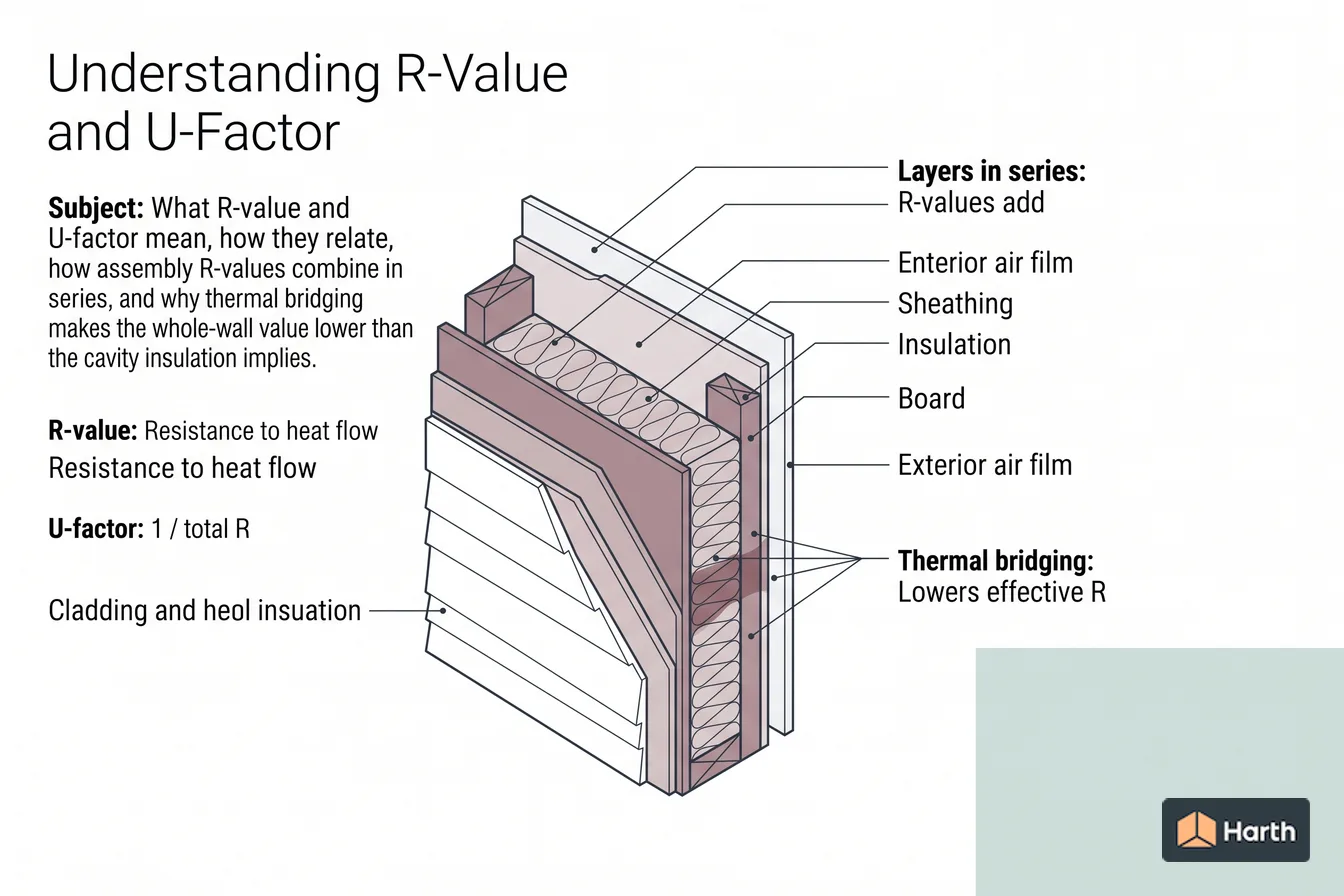

A typical, illustrative wood-stud wall, layer by layer:

But that center-of-cavity number is optimistic, because it ignores the studs.

Thermal bridging: why the whole wall underperforms

A wall framed at 16" on center is roughly 20-25% framing (studs, plates, headers, corners) by area. Wood conducts heat far better than insulation (a 2x6 stud path might be only ~R-6 vs R-21 in the cavity beside it), and steel studs are dramatically worse — a highly conductive thermal bridge that can cut a steel-stud cavity's effective R by half or more.

To get the honest whole-assembly value, you area-weight the two paths (through-cavity and through-framing) — the parallel-path or isothermal-planes method in ASHRAE Fundamentals / 90.1 Appendix A. The result — the effective or whole-wall R-value — is what belongs in an energy model.

Why continuous insulation matters

The fix for thermal bridging is continuous insulation (c.i.) — a layer of rigid insulation on the exterior that covers the framing as well as the cavity. Because it's unbroken, its full R-value counts everywhere, and it's why prescriptive energy-code tables increasingly read 'R-13 + R-5 c.i.' rather than a single cavity number. Continuous insulation also warms the sheathing and helps with condensation control.

Bottom line

• Specify insulation by R-value, verify assemblies and windows by U-factor.
• R-values add in series; convert to U with U = 1/R.
• Always distinguish nominal (cavity) from effective (whole-wall) R — thermal bridging is the gap between them, and it's what energy codes and models actually judge. For code-binding numbers, use ASHRAE 90.1 tables, a tested manufacturer value, or a whole-assembly calculation.

Understanding R-Value and U-Factor: tested-assembly evidence record

Stop condition: a component description, rule of thumb or generated diagram is not evidence of a fire, acoustic or thermal rating. Use the complete current listing and verify every departure.

Where can you explore related guidance?

• Explore all assemblies guidance
• IECC Envelope Requirements by Climate Zone
• ASHRAE / IECC Climate Zones Explained

Sources and method

Concepts per ASHRAE Fundamentals and ASHRAE 90.1 / IECC envelope requirements. Material R-values are typical published ranges; the governing assembly U-factor for code compliance comes from ASHRAE 90.1 tables, a manufacturer's tested value, or a whole-assembly calculation (e.g. per ASHRAE 90.1 Appendix A). Numbers here are illustrative. Official references: ASHRAE Standard 90.1; 2024 IECC.
